Specifications
Brand Name :
GigaDevice
Model Number :
GD25Q256EYIGR
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Operating Temperature :
-40℃~+85℃
operating voltage :
2.7V~3.6V
Interface Type :
SPI
Storage Capadity :
256Mbit
Clock Frequency (fc) :
133MHz
Page write time (Tpp) :
250us
Description
GD25Q256EYIGR 3.3V Uniform Sector Dual And Quad Serial Flash 250us 2.7V~3.6V
Product Overview
The GD25Q256EYIGR is a high-performance 256M-bit Serial Flash memory featuring uniform sector architecture and support for Standard, Dual, and Quad SPI interfaces. Operating at 2.7V-3.6V with fast program/erase speeds, this device is ideal for demanding embedded applications.
Key Features
  • 256M-bit Serial Flash - 32M-Byte capacity with 256 bytes per programmable page
  • Multiple SPI Interfaces - Standard, Dual, and Quad SPI support with 3 or 4-Byte Address Mode
  • High-Speed Performance - 133MHz clock frequency with data transfer up to 532Mbits/s in Quad mode
  • Comprehensive Write Protection - Software/hardware protection for all or portion of memory
  • Fast Program/Erase - 0.25ms page program time and 30ms sector erase time typical
  • Flexible Architecture - Uniform 4K-Byte sectors and 32/64K-Byte blocks
  • Low Power Consumption - 16μA standby current and 1μA deep power down current
  • Advanced Security - 128-bit Unique ID, SFDP register, and security registers with OTP locks
  • High Reliability - 100,000 program/erase cycles minimum with 20-year data retention
Pin Configuration
Pin No. Pin Name I/O Description
1 HOLD# (IO3) I/O Hold Input (Data Input Output 3)
2 VCC Power Supply
3 RESET# I Reset Input
7 CS# I Chip Select Input
8 SO (IO1) I/O Data Output (Data Input Output 1)
9 WP# (IO2) I/O Write Protect Input (Data Input Output 2)
10 VSS Ground
13 DNU Do Not Use (It may connect to internal signal inside)
15 SI (IO0) I/O Data Input (Data Input Output 0)
16 SCLK I Serial Clock Input

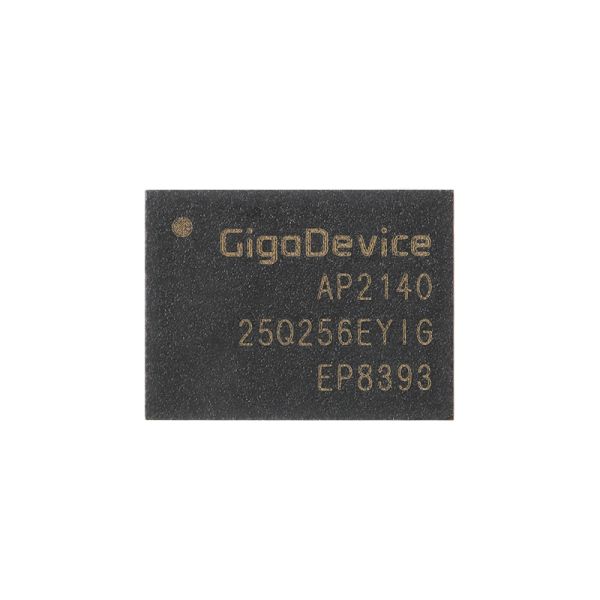

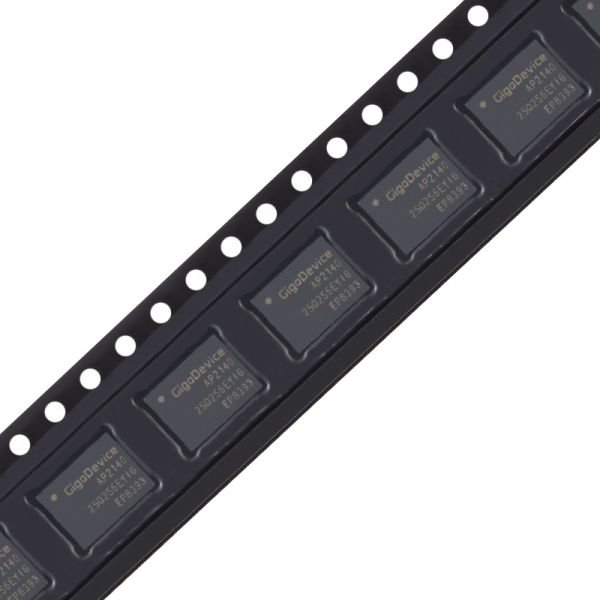

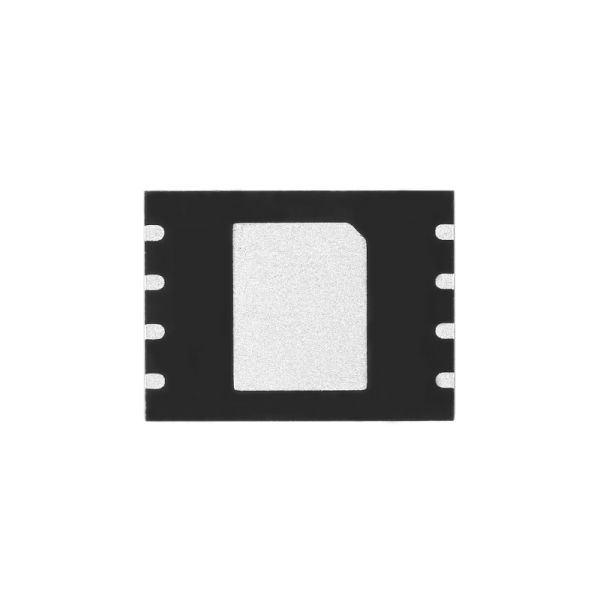

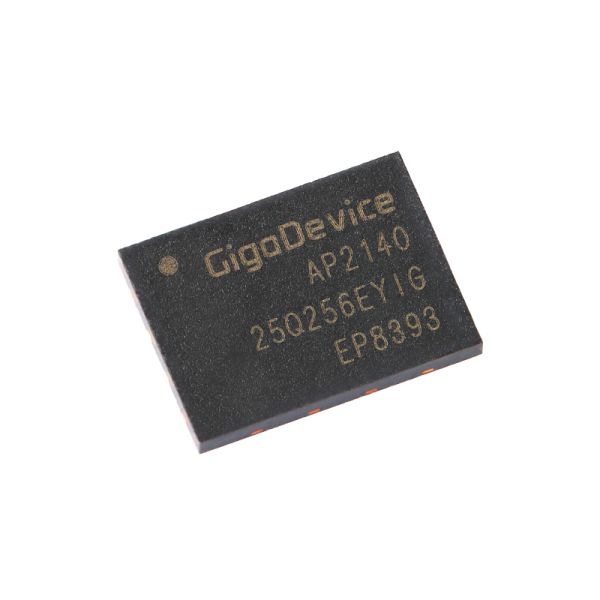

Product Images
