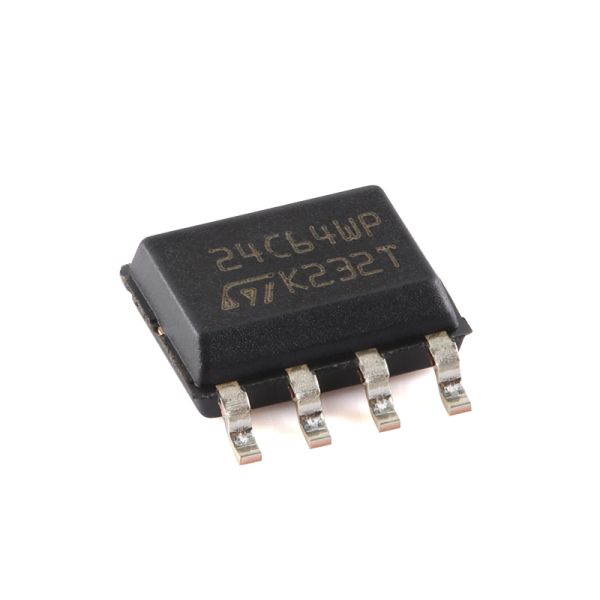

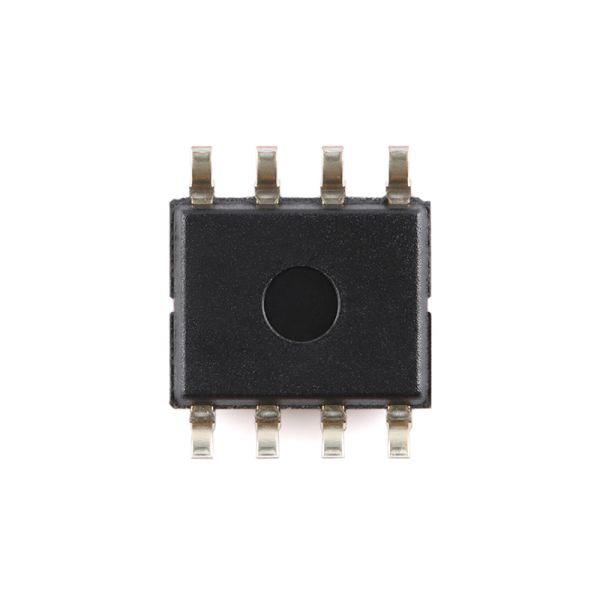

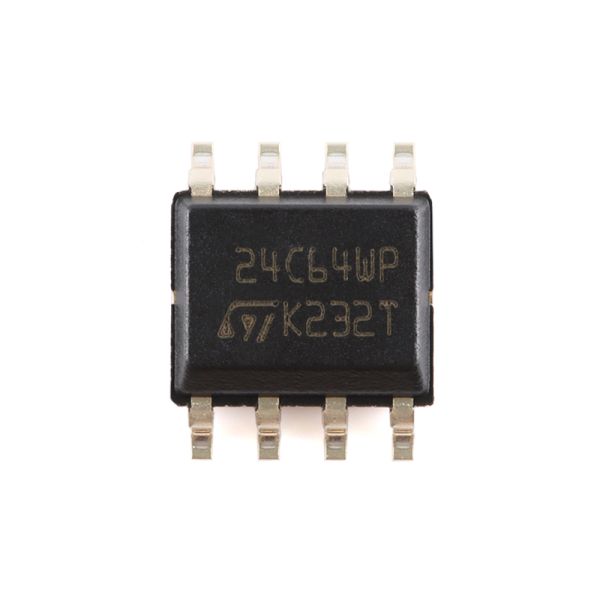

M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz
M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz
M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz
M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz
M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz
M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz
M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz
M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz
Specifications
Brand Name :
ST
Model Number :
M24C64-WMN6TP
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Operating Temperature :
-40℃~+85℃
operating voltage :
2.5V~5.5V
Interface Type :
I2C
Storage Capadity :
64Kbit
Clock Frequency (fc) :
1MHz
Write Cycle Time (Tw) :
5ms
Description
M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROM
64-Kbit Serial I²C Bus EEPROM with 2.5V~5.5V operating voltage, 5ms write time, and 1MHz frequency
Product Overview
M24C64-WMN6TP is a high-performance 64-Kbit serial EEPROM compatible with I²C bus protocols. Available in multiple variants including M24C64-W, M24C64-R, M24C64-F, and M24C64-DF.
Key Features
  • Full compatibility with all I²C bus modes: 1 MHz, 400 kHz, and 100 kHz
  • 64 Kbit (8 Kbytes) EEPROM memory array with 32-byte page size
  • Additional write-lockable page available on M24C64-D variants
  • Wide single supply voltage range: 1.7V to 5.5V over -40°C to +85°C
  • Fast write operations: Byte Write and Page Write within 5ms
  • Support for random and sequential Read modes
  • Complete memory array write protection
  • Enhanced ESD and latch-up protection
  • Exceptional endurance: Over 4 million write cycles
  • Long-term data retention: More than 200 years
Electrical Parameters
Symbol Parameter Min. Max. Unit
VIO Input or output range -0.50 6.5 V
VCC Supply voltage -0.50 6.5 V
VESD Electrostatic pulse (Human Body model) - 4000 V
Product Documentation
M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz M24C64-WMN6TP 64-Kbit Serial I²C Bus EEPROMs 2.5V~5.5V 5ms 1MHz

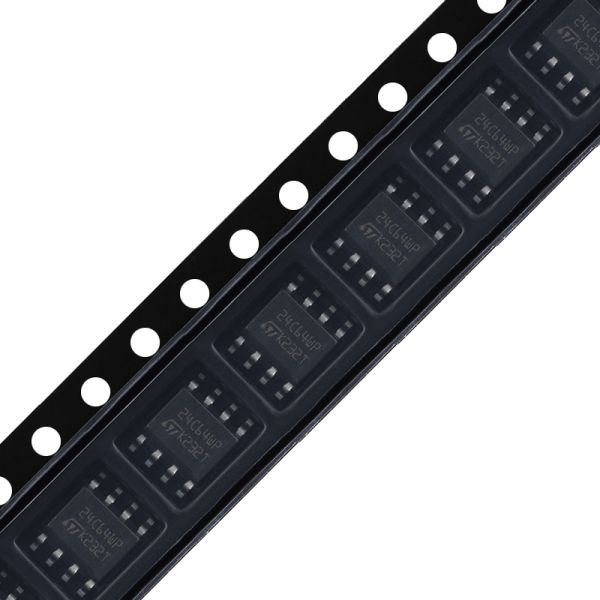

Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
