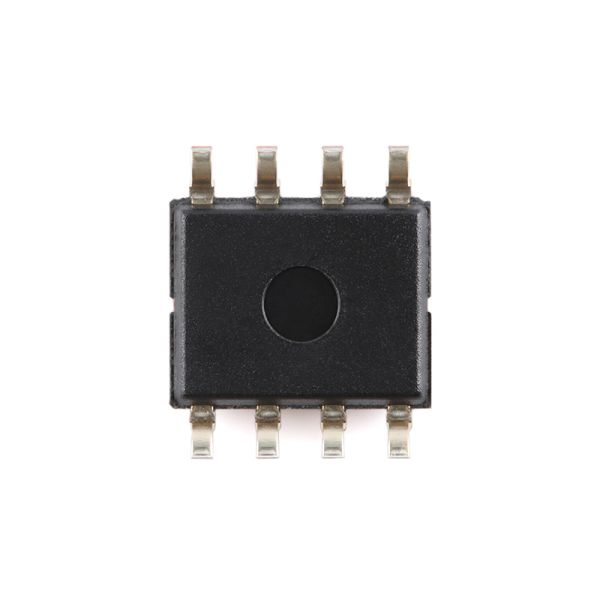

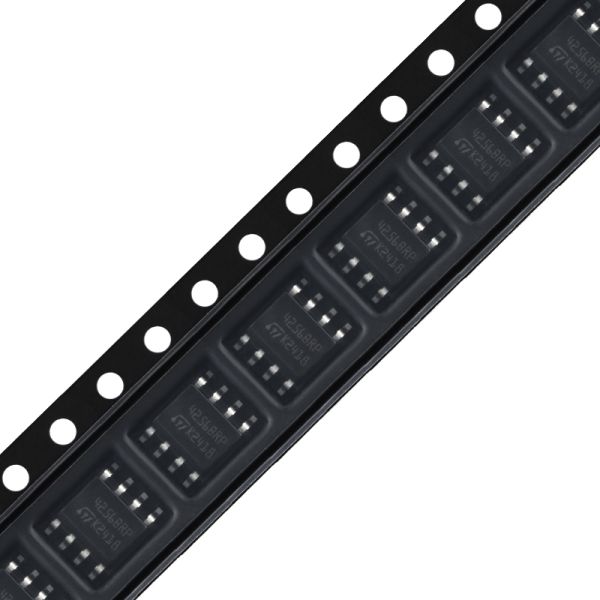

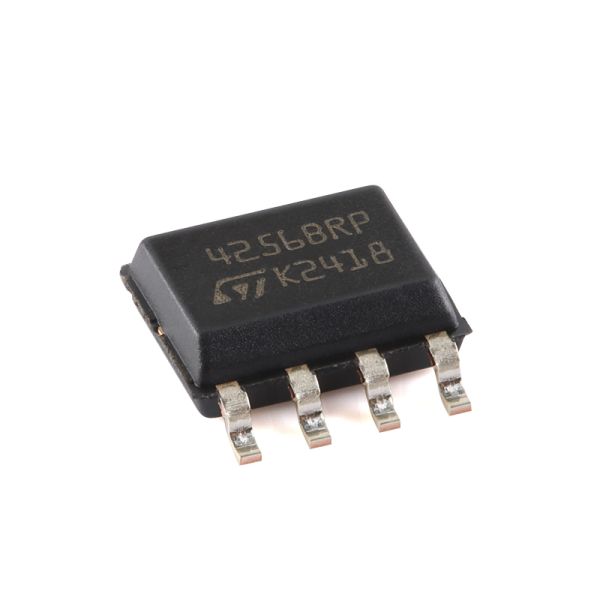

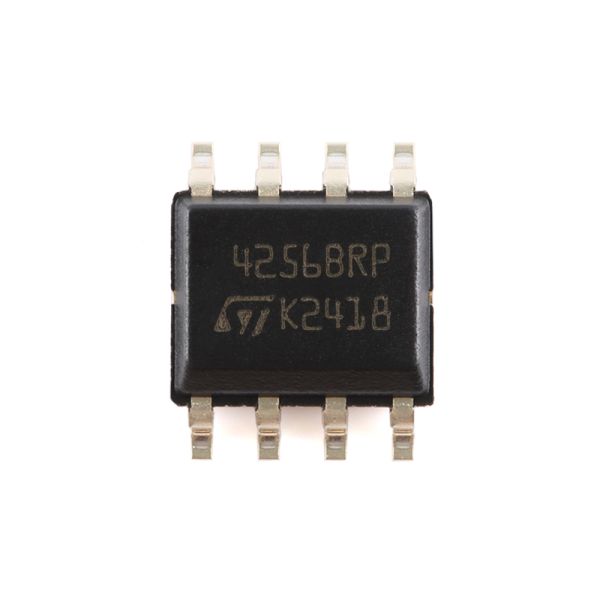

M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz
M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz
M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz
M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz
M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz
M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz
M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz
M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz
Specifications
Brand Name :
ST
Model Number :
M24256-BRMN6TP
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Operating Temperature :
-40℃~+85℃
operating voltage :
1.8V~5.5V
Interface Type :
I2C
Storage Capadity :
256Kbit
Clock Frequency (fc) :
1MHz
Write Cycle Time (Tw) :
5ms
Description
M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz
Product Overview
M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz. Compatible models include M24256-BW, M24256-BR, M24256-BF, M24256-DR, and M24256-DF.
Key Features
  • Compatible with all I2C bus modes: 1 MHz, 400 kHz, and 100 kHz
  • Memory array: 256 Kbit (32 Kbytes) of EEPROM with 64-byte page size
  • Additional write lockable page (M24256-D order codes)
  • Single supply voltage and high speed: 1 MHz clock from 1.7 V to 5.5 V
  • Fast write operations: Byte Write and Page Write within 5 ms
  • Wide operating temperature range: -40 °C to +85 °C
  • Random and sequential Read modes
  • Write protect of the whole memory array
  • Enhanced ESD/Latch-Up protection
  • Exceptional durability: Over 4 million Write cycles
  • Long-term data retention: Over 200 years
Signal Pin Configuration
Signal Name Function Direction
E2, E1, E0 Chip Enable Input
SDA Serial Data I/O
SCL Serial Clock Input
WC Write Control Input
VCC Supply Voltage -
VSS Ground -
Product Documentation
M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz M24256-BRMN6TP 256-Kbit serial I²C bus EEPROM I2C 1.8V~5.5V 1MHz
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
