M95M01-RMN6TP 1-Mbit serial SPI bus EEPROM 1.8V~5.5V 16MHz SPI
M95M01-RMN6TP 1-Mbit serial SPI bus EEPROM 1.8V~5.5V 16MHz SPI
M95M01-RMN6TP 1-Mbit serial SPI bus EEPROM 1.8V~5.5V 16MHz SPI
M95M01-RMN6TP 1-Mbit serial SPI bus EEPROM 1.8V~5.5V 16MHz SPI
M95M01-RMN6TP 1-Mbit serial SPI bus EEPROM 1.8V~5.5V 16MHz SPI
M95M01-RMN6TP 1-Mbit serial SPI bus EEPROM 1.8V~5.5V 16MHz SPI
M95M01-RMN6TP 1-Mbit serial SPI bus EEPROM 1.8V~5.5V 16MHz SPI
M95M01-RMN6TP 1-Mbit serial SPI bus EEPROM 1.8V~5.5V 16MHz SPI
Specifications
Brand Name :
ST
Model Number :
M95M01-RMN6TP
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Operating Temperature :
-40℃~+85℃
operating voltage :
1.8V~5.5V
Interface Type :
SPI
Storage Capadity :
1Mbit
Clock Frequency (fc) :
16MHz
Write Cycle Time (Tw) :
5ms
Description
M95M01-RMN6TP 1-Mbit Serial SPI Bus EEPROM
1.8V~5.5V 16MHz SPI - M95M01-DF M95M01-R 1-Mbit serial SPI bus EEPROM
Key Features
  • Compatible with Serial Peripheral Interface (SPI) bus
  • Memory array: 1 Mbit (128 Kbytes) of EEPROM with 256-byte page size
  • Fast write operations: Byte Write and Page Write within 5 ms
  • Additional write-lockable identification page
  • Flexible write protection: quarter, half or whole memory array
  • High-speed clock: 16 MHz
  • Single supply voltage: 1.8V to 5.5V (M95M01-R) / 1.7V to 5.5V (M95M01-DF)
  • Wide operating temperature range: -40°C to +85°C
  • Enhanced ESD protection
  • Exceptional endurance: over 4 million write cycles
  • Long-term data retention: over 200 years
Signal Pin Functions
Signal Name Function Direction
C Serial Clock Input Input
D Serial Data Input Input
Q Serial Data Output Output
S Chip Select Input Input
W Write Protect Input Input
HOLD Hold Input Input
VCC Supply Voltage -
VSS Ground -

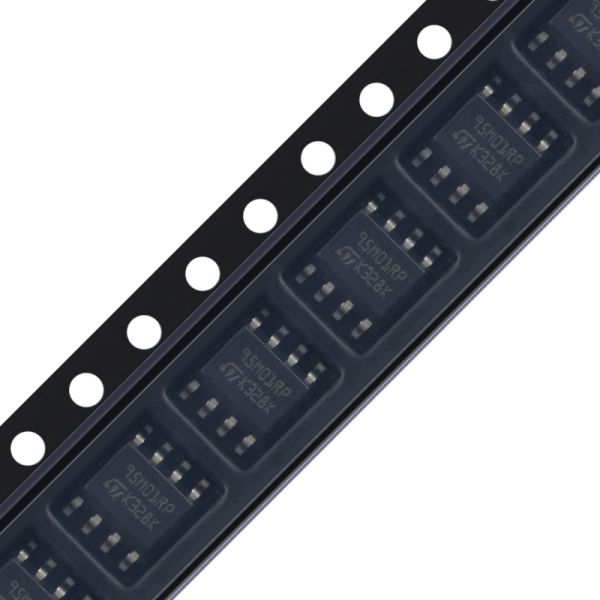

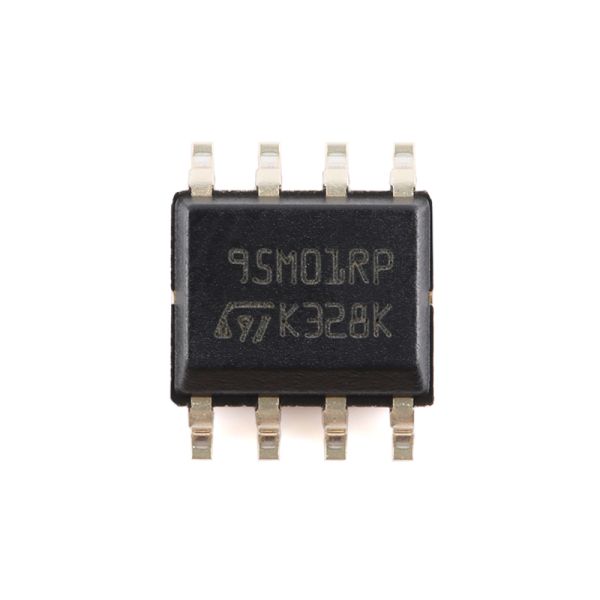

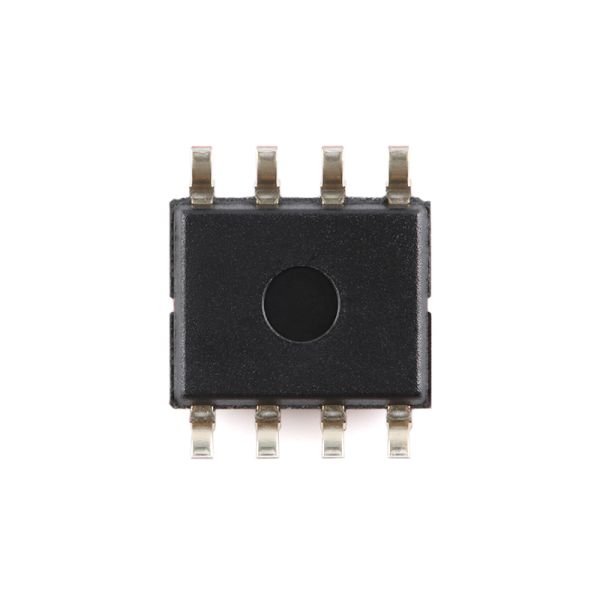

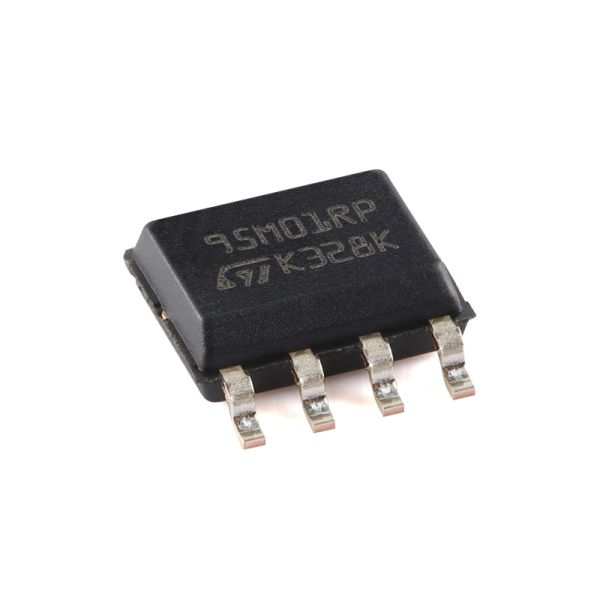

Product Images
M95M01-RMN6TP 1-Mbit serial SPI bus EEPROM 1.8V~5.5V 16MHz SPI M95M01-RMN6TP 1-Mbit serial SPI bus EEPROM 1.8V~5.5V 16MHz SPI M95M01-RMN6TP 1-Mbit serial SPI bus EEPROM 1.8V~5.5V 16MHz SPI M95M01-RMN6TP 1-Mbit serial SPI bus EEPROM 1.8V~5.5V 16MHz SPI
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
