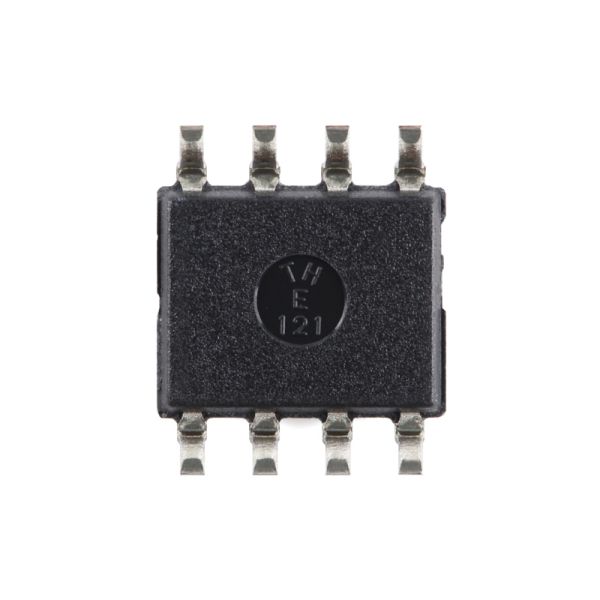

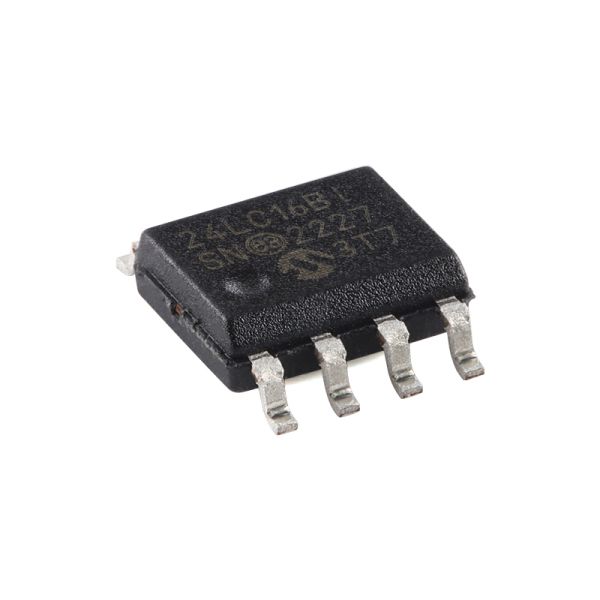

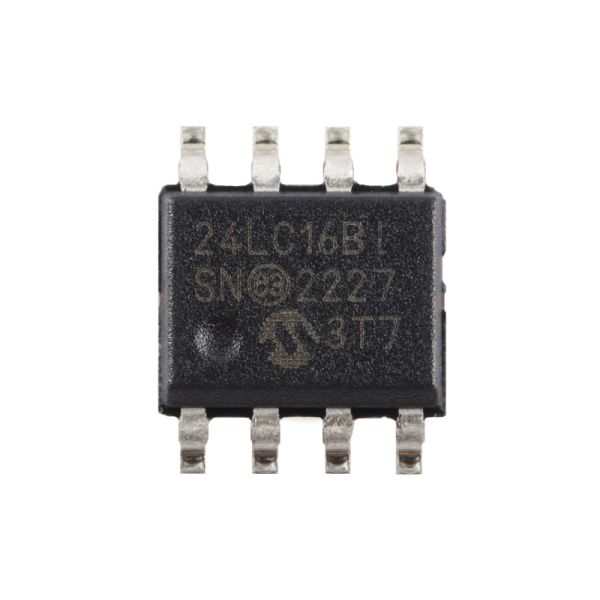

24LC16BT-I/SN 16K I²C™ Serial EEPROM Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices
24LC16BT-I/SN 16K I²C™ Serial EEPROM Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices
24LC16BT-I/SN 16K I²C™ Serial EEPROM Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices
24LC16BT-I/SN 16K I²C™ Serial EEPROM Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices
24LC16BT-I/SN 16K I²C™ Serial EEPROM Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices
24LC16BT-I/SN 16K I²C™ Serial EEPROM Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices
Specifications
Brand Name :
MICROCHIP
Model Number :
24LC16BT-I/SN
Certification :
rohs
Place of Origin :
VN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Product Category: :
EEPROM
Memory Size: :
16 kbit
Interface Type: :
2-Wire, I2C
Maximum Clock Frequency: :
400 kHz
Organization: :
2 k x 8
Package / Case: :
SOIC-8
Description
24LC16BT-I/SN 16K I²C™ Serial EEPROM
16K I²C™ Serial EEPROM with single supply operation down to 1.7V for 24AA16 devices and 2.5V for 24LC16B devices.
Key Features
  • Single supply operation down to 1.7V (24AA16) and 2.5V (24LC16B)
  • Low-power CMOS technology: 1 mA active current, 1 μA standby current
  • 2-wire serial interface, I2C™ compatible
  • Schmitt trigger inputs for noise suppression
  • Output slope control to eliminate ground bounce
  • 100 kHz and 400 kHz clock compatibility
  • 5 ms maximum page write time
  • Self-timed erase/write cycle
  • 16-byte page write buffer
  • Hardware write-protect
  • ESD protection > 4,000V
  • Over 1 million erase/write cycles
  • Data retention > 200 years
  • Factory programming available
  • Pb-free and RoHS compliant
  • Temperature ranges: Industrial (-40°C to +85°C), Automotive (-40°C to +125°C)
Product Description
The Microchip Technology Inc. 24AA16/24LC16B (24XX16*) is a 16 Kbit Electrically Erasable PROM organized as eight blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA respectively. The device features page write capability for up to 16 bytes of data and is available in various package options.
Package Options
Available in 8-lead PDIP, SOIC, TSSOP, MSOP, DFN, TDFN, 5-lead SOT-23 and Chip Scale packages.
Pin Configuration
Name PDIP SOIC TSSOP DFN TDFN MSOP SOT-23 CS Description
A0 1 1 1 1 1 1 — — Not Connected
A1 2 2 2 2 2 2 — — Not Connected
A2 3 3 3 3 3 3 — — Not Connected
VSS 4 4 4 4 4 4 2 2 Ground
SDA 5 5 5 5 5 5 3 5 Serial Address/Data I/O
SCL 6 6 6 6 6 6 1 4 Serial Clock
WP 7 7 7 7 7 7 5 3 Write-Protect Input
VCC 8 8 8 8 8 8 4 1 +1.7V to 5.5V Power Supply
24LC16BT-I/SN 16K I²C™ Serial EEPROM Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices 24LC16BT-I/SN 16K I²C™ Serial EEPROM Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices 24LC16BT-I/SN 16K I²C™ Serial EEPROM Single Supply with Operation down to 1.7V for 24AA16 Devices, 2.5V for 24LC16B Devices
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
