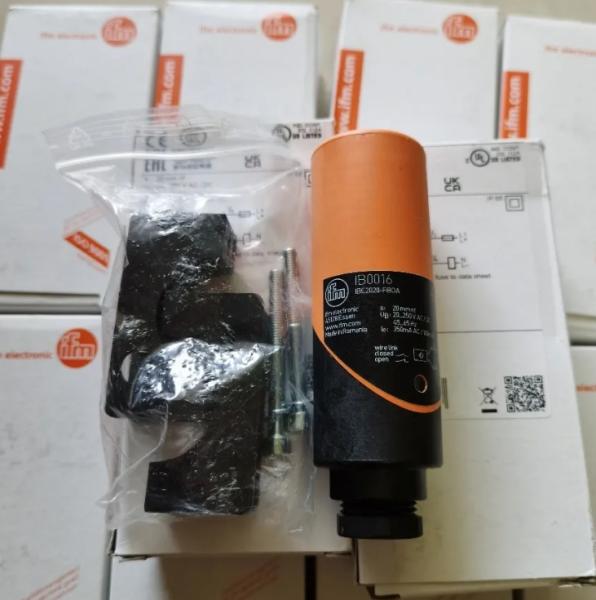

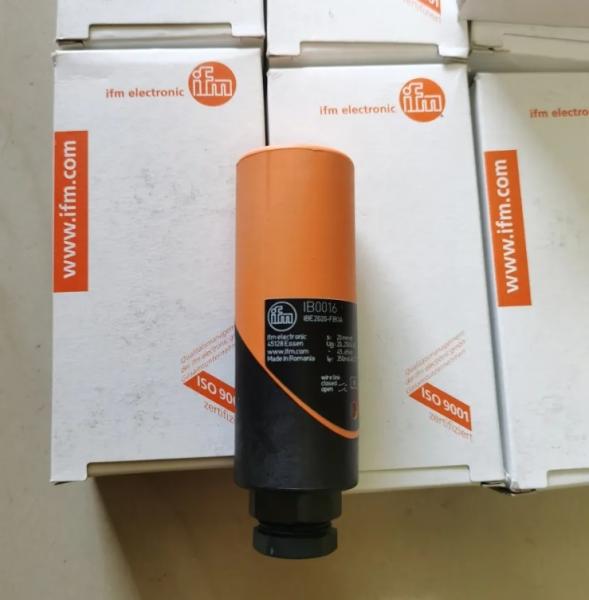

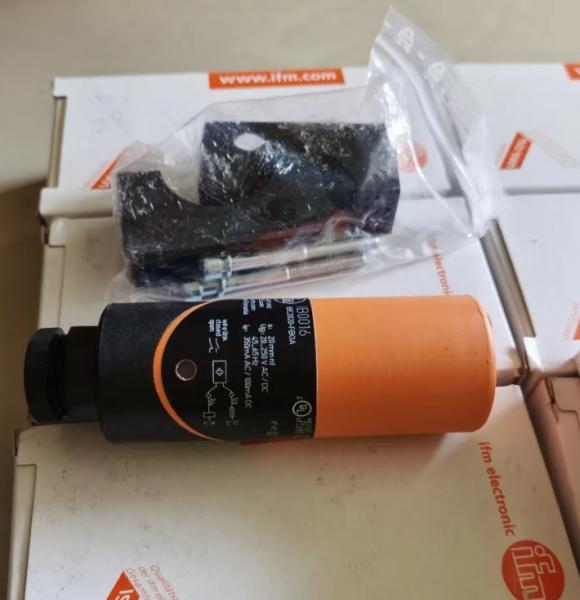

Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
Specifications
Brand Name :
IFM
Model Number :
IB0004
Certification :
-
Place of Origin :
China
MOQ :
1
Price :
USD160/PC
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10000
Delivery Time :
2weeks
Packaging Details :
Original
Communication interface :
Ethernet
Output function :
normally open / normally closed; (selectable)
Sensing range[mm] :
20
Description

Product characteristics

Output function normally open
Sensing range[mm] 20
Housing tubular
Dimensions[mm] Ø 34 / L = 82

Electrical data

Operating voltage[V] 20...250 AC/DC
Protection class II
Reverse polarity protection no

Outputs

Output function normally open
Max. voltage drop switching output DC[V] 6
Max. voltage drop switching output AC[V] 6.5
Minimum load current[mA] 5
Max. leakage current[mA] 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC[mA] 250; (350 (...50 °C))
Permanent current rating of switching output DC[mA] 100
Short-time current rating of switching output[mA] 2200; (20 ms / 0,5 Hz)
Switching frequency AC[Hz] 25
Switching frequency DC[Hz] 50
Short-circuit proof no
Overload protection no

Monitoring range

Sensing range[mm] 20
Real sensing range Sr[mm] 20 ± 10 %
Operating distance[mm] 0...16.2

Accuracy / deviations

Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3
Hysteresis[% of Sr] 1...15
Switch-point drift[% of Sr] -10...10

Operating conditions

Ambient temperature[°C] -25...80
Protection IP 67

Tests / approvals

EMC
EN 60947-5-2
EN 55011 class B
MTTF[years] 610

Mechanical data

Weight[g] 257
Housing tubular
Mounting non-flush mountable
Dimensions[mm] Ø 34 / L = 82
Material PBT

Displays / operating elements

Display
Switching status 1 x LED, yellow

Electrical connection

Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Accessories

Items supplied
Mounting clamp: 1

Remarks

Remarks
Recommendation: check the unit for reliable function after a short circuit.
Pack quantity 1 pcs.

Electrical connection

Connection Cable: 2 m, PVC; 2 x 0.5Original Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFMOriginal Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFMOriginal Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFMOriginal Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFMOriginal Germany IFM Inductive Sensor IB0004 IB0026 IB5096 IB5097 IB0017 IB0029 IB0011 Sensor IFM
