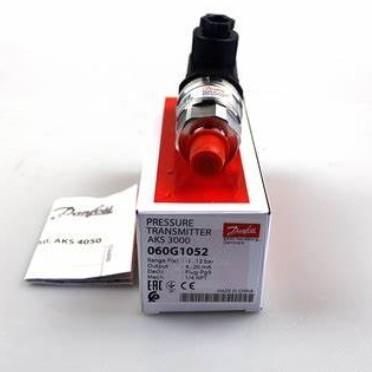

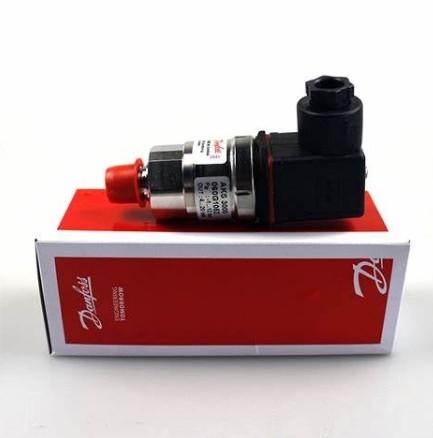

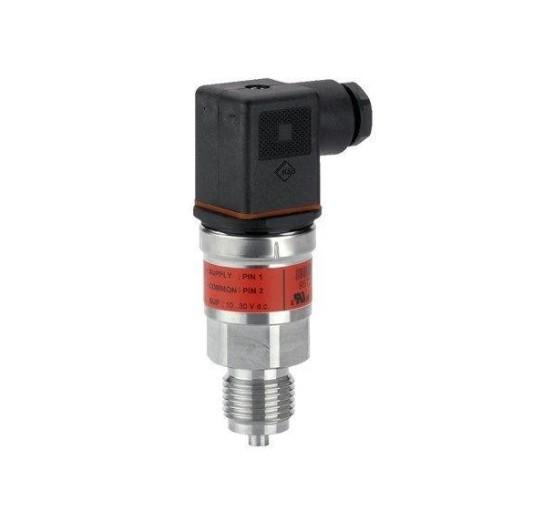

Danfoss Pressure Transmitter, AKS 3000, -1.00 Bar - 12.00 Bar, -14.50 Psi - 174.00 Psi 060G1052

Specifications

Brand Name :

Danfoss

Model Number :

060G1052

Certification :

Place of Origin :

china

MOQ :

Price :

USD$110

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :

500pc

Delivery Time :

3-4weeks

Packaging Details :

carton

Gross weight :

0.18 Kilogram

+ supply :

Pin 1

Volume :

0.411 Liter

Compensated temp. range [°F] [min] :

-22 °F

Description

Product details

Gross weight	0.18 Kilogram
Net weight	0.157 Kilogram

Volume	0.411 Liter
EAN	5702423099825

+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	2 %
Accuracy, typical [±FS%]	1 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX GOST POCC cUR
Approval standard	6967179 E227388 E31024
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	40 °C
Compensated temp. range [°C] [min]	-30 °C
Compensated temp. range [°F] [max]	104 °F
Compensated temp. range [°F] [min]	-22 °F
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Out of scope
EX Sales text	-20CTa+85C II 3G Ex nA IIA T3 Gc
Flush diaphragm	No
High Clipping Level	22.4
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
International Article Number	5702423099825
Intrinsically safe	No
Low Clipping level	3.6
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C

Medium temperature range [°F] [max]	185 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.5 %
Output signal	Current
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Overload pressure max. [bar]	33 bar
Packing format	Multi pack
Pressure connection size	1/4-18
Pressure connection standard	ANSI/ASME B1.20.1
Pressure connection type	NPT
Pressure Male/Female	Male
Pressure range [bar] [max]	12 bar
Pressure range [bar] [min]	-1 bar
Pressure range [psi] [max]	174 psi
Pressure range [psi] [min]	-14.5 psi
Pressure reference	Sealed gauge
Product group	Sensors
Product Name Description	Pressure transmitter
Pulse-snubber	No
Quantity per packing format	14 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	442fa760-b631-4ddb-a979-55b604269353
SCIP dossier product name	Sensor AKS 3000
Specification key	AKS 3000-DH31-A1EC04-0
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [max]	32 V
Supply voltage [V] DC [min]	9 V
Supply voltage [V] DC [min]	9 V
Type	AKS 3000
UK RoHS compliance	Out of scope
