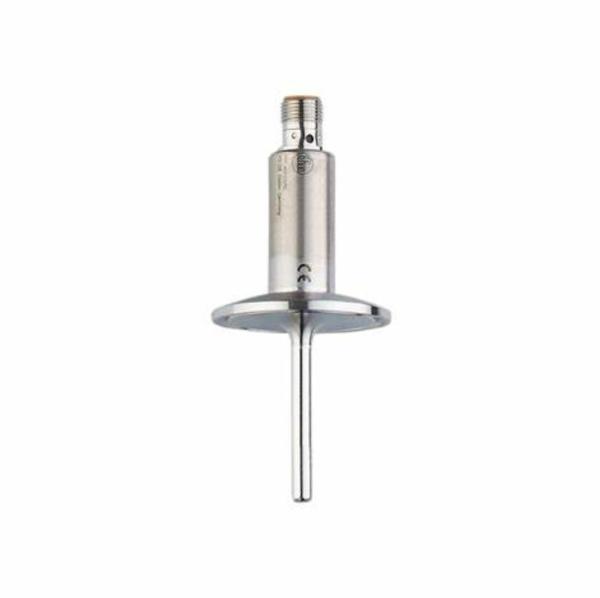

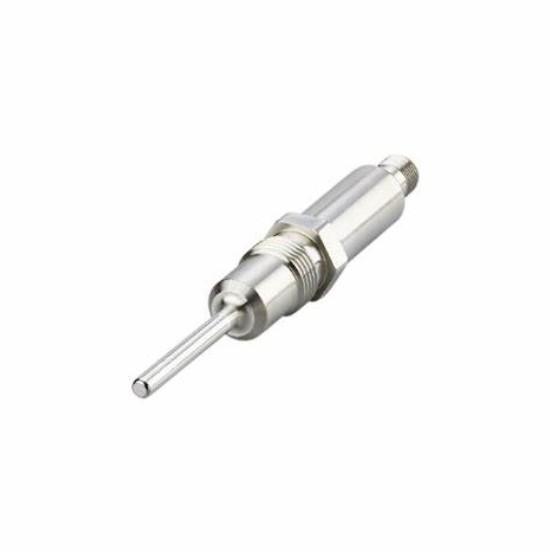

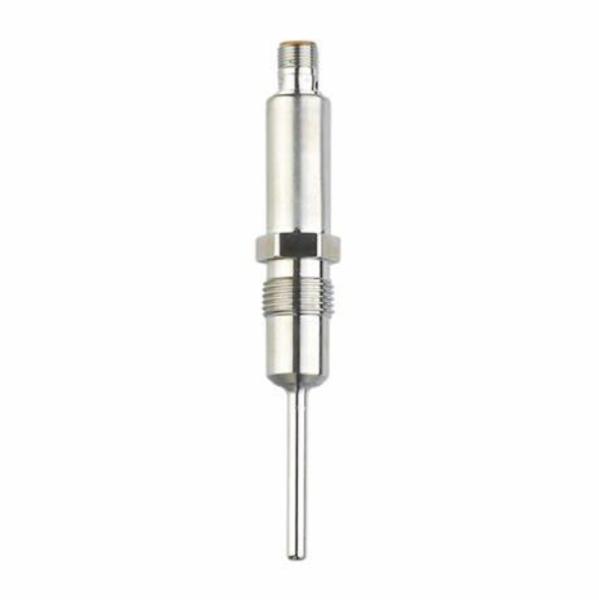

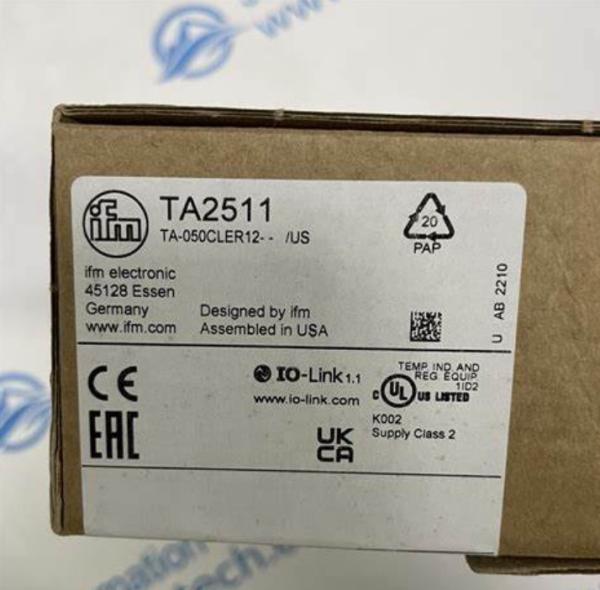

IFM Temperature Transmitter TA2511 TA-050CLER12- - /US
IFM Temperature Transmitter TA2511 TA-050CLER12- - /US
IFM Temperature Transmitter TA2511 TA-050CLER12- - /US
IFM Temperature Transmitter TA2511 TA-050CLER12- - /US
IFM Temperature Transmitter TA2511 TA-050CLER12- - /US
IFM Temperature Transmitter TA2511 TA-050CLER12- - /US
IFM Temperature Transmitter TA2511 TA-050CLER12- - /US
IFM Temperature Transmitter TA2511 TA-050CLER12- - /US
Specifications
Brand Name :
IFM
Model Number :
TA2511
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
USD$260
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500pc
Delivery Time :
in stock
Packaging Details :
carton
Measuring range[°C] :
-50...200
Communication interface :
IO-Link
Installation length EL[mm] :
50
Pressure rating[bar] :
160
Description

Product characteristics

Number of inputs and outputs Number of analog outputs: 1
Measuring range[°C] -50...200
Communication interface IO-Link
Process connection threaded connection G 1/2 sealing cone
Installation length EL[mm] 50

Application

Measuring element 1 x Pt 1000; (to DIN EN 60751, class A)
Media liquids and gases
Pressure rating[bar] 160
Vacuum resistance[mbar] -1000
MAWP (for applications according to CRN)[bar]

160

Electrical data

Operating voltage[V] 18...32 DC; (cULus - Class 2 source required)
Current consumption[mA] < 50
Protection class III
Reverse polarity protection yes
Power-on delay time[s] 2

Outputs

Total number of outputs 1
Output signal analog signal; IO-Link; (configurable)
Number of analog outputs 1
Analog current output[mA] 4...20
Max. load[Ω] 250; ((18...19 V); 19...32 V: 300 Ω)
Short-circuit protection yes
Overload protection yes
