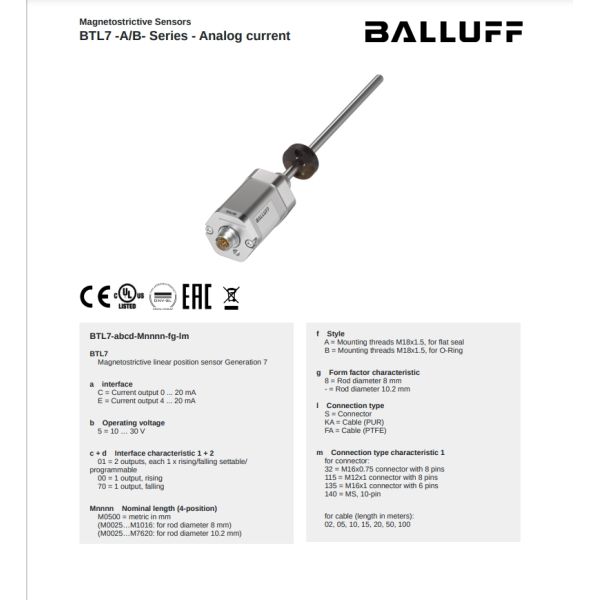

BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
Specifications
Brand Name :
Balluff
Model Number :
BTL7-E100-M0650-B-S32
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
USD$750
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500pcs
Delivery Time :
6-8weeks
Packaging Details :
carton
Housing material :
Aluminum, Anodized
Connection :
Connector, M16x0.75, 8-pin
Measuring range :
750 mm
Sampling frequency max. :
1000 Hz
Description
Style
Rod series
Mounting part
Threaded flange M18x1.5
Housing material
Aluminum, Anodized
Magnets, number max.
1
Connection
Connector, M16x0.75, 8-pin
Analog output
Analog, current 4…20 mA
Measuring range
750 mm
Sampling frequency max.
1000 Hz
Non-linearity max.
±0.01 % FS
Repeat accuracy
± 5 µm
Operating voltage Ub
20...28 VDC
Ambient temperature
-40...85 °C
IP rating
IP67
Approval/Conformity
CE
UKCA
cULus
WEEE

BTL7-E100-M0650-B-S32 Balluff Micropulse Transducer With 750 Mm Measuring Range And 1000 Hz Sampling Frequency
