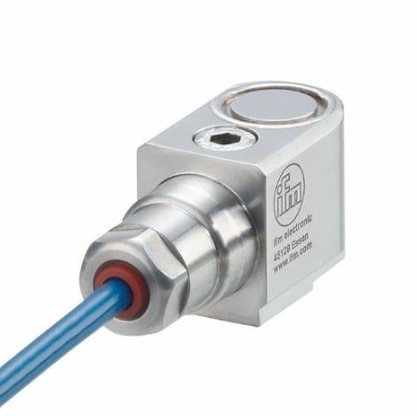

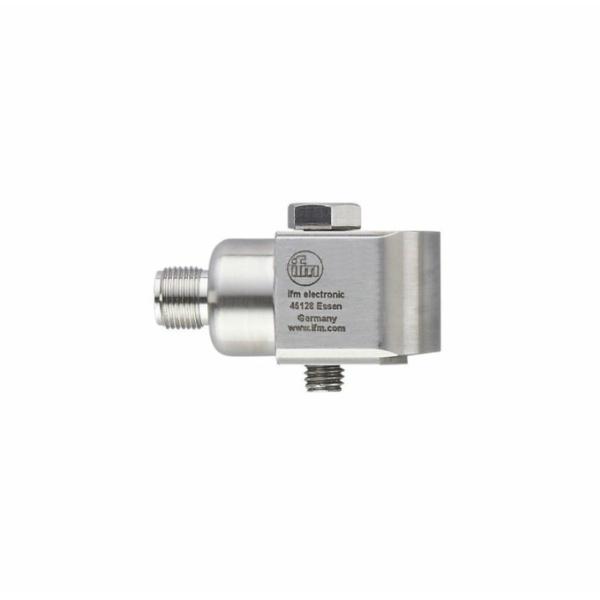

IFM Accelerometer VSP01A VIBRATION SENSOR ATEX
IFM Accelerometer VSP01A VIBRATION SENSOR ATEX
IFM Accelerometer VSP01A VIBRATION SENSOR ATEX
IFM Accelerometer VSP01A VIBRATION SENSOR ATEX
IFM Accelerometer VSP01A VIBRATION SENSOR ATEX
IFM Accelerometer VSP01A VIBRATION SENSOR ATEX
IFM Accelerometer VSP01A VIBRATION SENSOR ATEX
IFM Accelerometer VSP01A VIBRATION SENSOR ATEX
Specifications
Brand Name :
IFM
Model Number :
VSP01A
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
USD$529
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500pc
Delivery Time :
6-8weeks
Packaging Details :
carton
Measuring principle :
piezoelectric
Operating voltage [V] :
10...12 DC
Current consumption [mA] :
0.5...8
Protection class :
III
Description
Product characteristics
Measuring range of vibration [g] -50...50
Frequency range [Hz] 2...10000
Measuring principle piezoelectric
Application
Design for connection to external diagnostic electronics VSExxx
Electrical data
Switching amplifiers Connection to intrinsically safe supply isolators (Ex ia)
Operating voltage [V] 10...12 DC
Current consumption [mA] 0.5...8
Min. insulation resistance [MΩ] 100; (500 V DC)
Protection class III
Reverse polarity protection yes
Outputs
Max. load [Ω] 200
Short-circuit protection yes
Overload protection yes
Measuring/setting range
Measuring range of vibration [g] -50...50
Frequency range [Hz] 2...10000
Measuring principle piezoelectric
Sensitivity [mV/g] 100
Noise density [mg] 0.1
Max. transverse sensitivity [%] 5
Minimum measuring time [s] 2
Number of measurement axes 1
Operating conditions
Ambient temperature [°C] -55...90
Storage temperature [°C] -55...90
Protection IP 68; (water-proof up to: 100 m 10 bar; restrictions for 1D applications: IP 65)
Tests / approvals
Approval Baseefa12ATEX0248X; IECEx BAS 12.0133 X
ATEX marking II 1G Ex ia IIC T4 Ga (-55°C < Ta < +90°C)
II 1D Ex ia IIIC T110°C IP65 Da (-55°C < Ta < +90°C)
II 1G Ex ia IIC T6 Ga (-55°C < Ta < +60°C)
II 1D Ex ia IIIC T80°C IP65 Da (-55°C < Ta < +60°C)
EMC
EN 61000-6-2 2005
EN 61000-6-4 2007
Shock resistance
5000 g
Mechanical data
Weight [g] 668.5
Type of mounting M8 x 1,25
Dimensions [mm] 30 x 25.5 x 64.7
Material housing: stainless steel
Tightening torque [Nm] 8
Accessories
Accessories (optional)
Safety barrier, ZB0633
Remarks
Pack quantity 1 pcs.
Electrical connection
Cable: 10 m, PUR
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — EN-US — VSP01A — 24.04.2023 —
