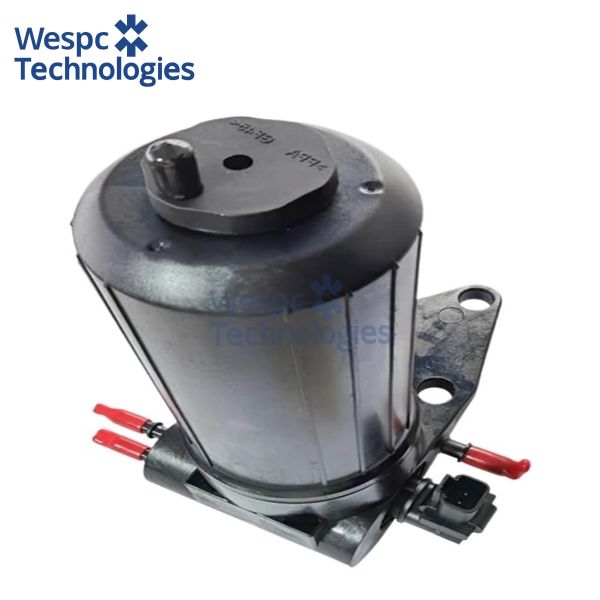

WESPC Diesel Engine ULPK0041 10000-65694 4132A014M1 Fuel Lift Pump For Perkins

Application:

This 12 V electric gear-type lift pump is engineered for Perkins 1104A-44, 1104C-44 and 1104D-44 turbo-diesel engines (4.0 L, 4-cylinder) that power Massey Ferguson 6400-, 7400- and 8200-series tractors, Landini Legend 105/115/130 row-crop machines, JCB 4CX backhoe loaders and 540-70 telehandlers, plus FG Wilson P22-6 and Pramac GSW85P skid-mounted generator sets. It mounts on the rear left face of the timing cover and supplies filtered fuel to the high-pressure injection pump across engine speeds from 650 r/min idle to 2 400 r/min rated.

Technical specifications:

The brushless 12 V DC positive-displacement gear pump delivers 140 L/h at 350 kPa and 12 V, drawing 3.5 A at 2 000 r/min. Die-cast aluminium body carries SAE J744 size 2 flange with two M8 threaded holes on 50 mm centres; 8 mm quick-connect inlet and outlet ports accept standard push-fit fuel lines. Internal relief valve opens at 400 kPa to prevent downstream over-pressure; Viton seals and gaskets ensure compatibility with biodiesel blends up to B20 and ultra-low-sulphur winter diesel down to −45 °C.

Material & performance features:

Powder-coated aluminium housing resists salt-spray corrosion; precision-hardened steel gears run in a bronze bearing sleeve for quiet, long-life operation and minimal wear. Stainless-steel magnetic strainer cap captures ferrous debris down to 40 µm, while spring-loaded Viton check valves prevent back-flow and vapour lock. The encapsulated brushless 12 V DC motor is IP67-sealed against dust and moisture, and a self-resetting thermal cut-off at 110 °C guards against overload. Lightweight, vibration-damped and maintenance-free sealed bearings make the unit ideal for continuous-duty agricultural, construction and standby-power applications.

Interchange part numbers:

ULPK0041, 10000-65694, 4132A014M1, 3860189, 4132A008, 4132A014, ULPK0038, 4181A022, 3638721M91, 747602M91, 4226484M1, 4226937M91, 17/927800, 1R-0793, 232-7808, 270-6992, 357-4187.
