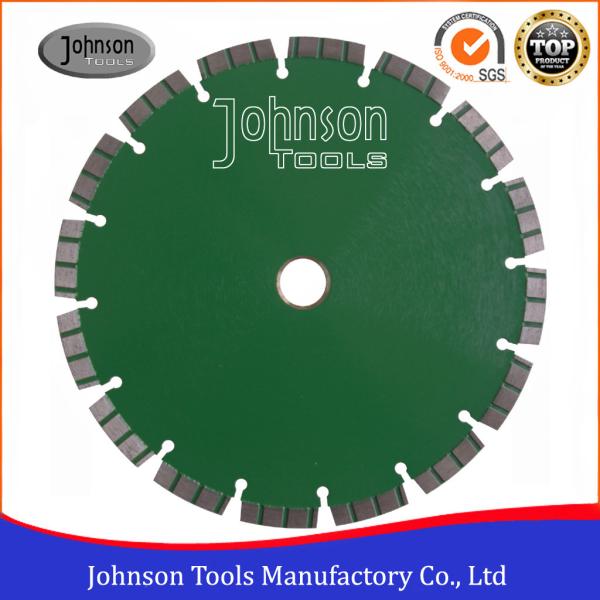

230mm Laser Diamond Turbo Saw Blade for Cured Concrete
230mm Laser Diamond Turbo Saw Blade for Cured Concrete
230mm Laser Diamond Turbo Saw Blade for Cured Concrete
230mm Laser Diamond Turbo Saw Blade for Cured Concrete
230mm Laser Diamond Turbo Saw Blade for Cured Concrete
230mm Laser Diamond Turbo Saw Blade for Cured Concrete
230mm Laser Diamond Turbo Saw Blade for Cured Concrete
230mm Laser Diamond Turbo Saw Blade for Cured Concrete
230mm Laser Diamond Turbo Saw Blade for Cured Concrete
230mm Laser Diamond Turbo Saw Blade for Cured Concrete
Specifications
Colour :
Clear Or As Your Request
Segment thickness :
2.6mm
Center hole :
16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm
Type :
Turbo Saw Blade
Outer Diameter :
230mm
Brand Name :
Johnson Tools
Model Number :
230mm
Certification :
SGS, GB
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiate
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
1000pcs per month
Delivery Time :
20-35days
Packaging Details :
white or colored package
Segment height :
7/10/12mm
Description

230mm Laser Diamond Turbo Saw Blade for Cured Concrete


1. Description:

9" Laser welded Diamond Blade designed for angle grinder. Wet or dry cutting for no reinforcement concrete pipe, roads, highways, driveways, sidewalks and some types of brick and pavers and so on.

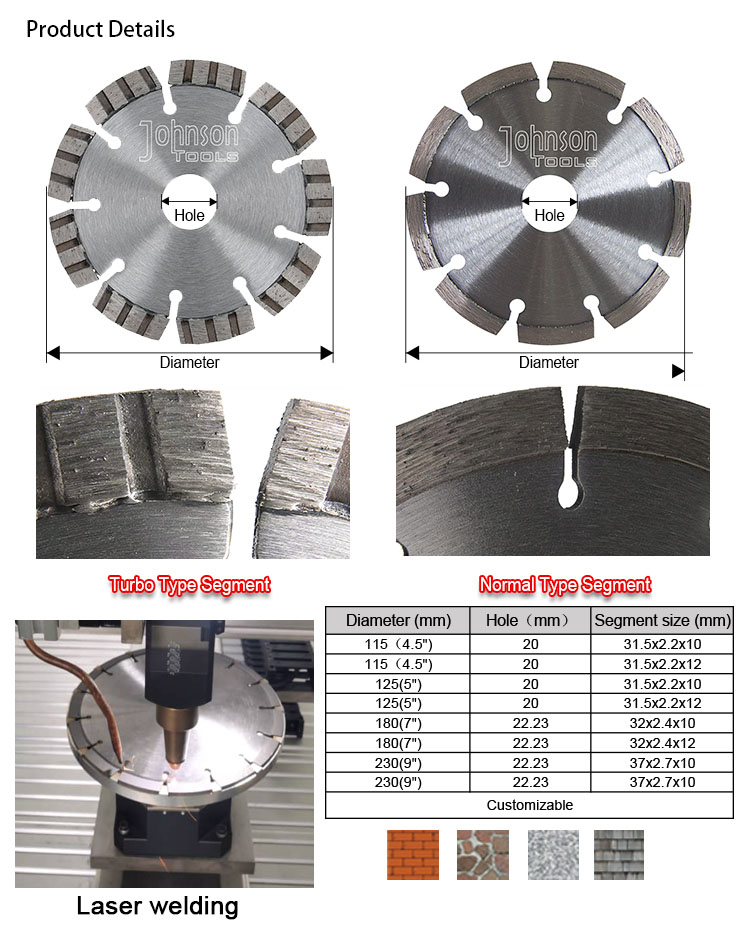

2. Specification:

Diameter:230mm
Segment thickness:2.6mm
Segment height:7/10/12mm
Inner hole:16/20mm, 22.23mm, 25.4mm, 50mm or as your request

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
9" 230 37 2.6 7 16
9" 230 37 2.6 10 16
9" 230 37 2.6 12 16

Other size Concrete Saw Blade we could do as following

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40
30" 750 40 5.0 10/12/15 46

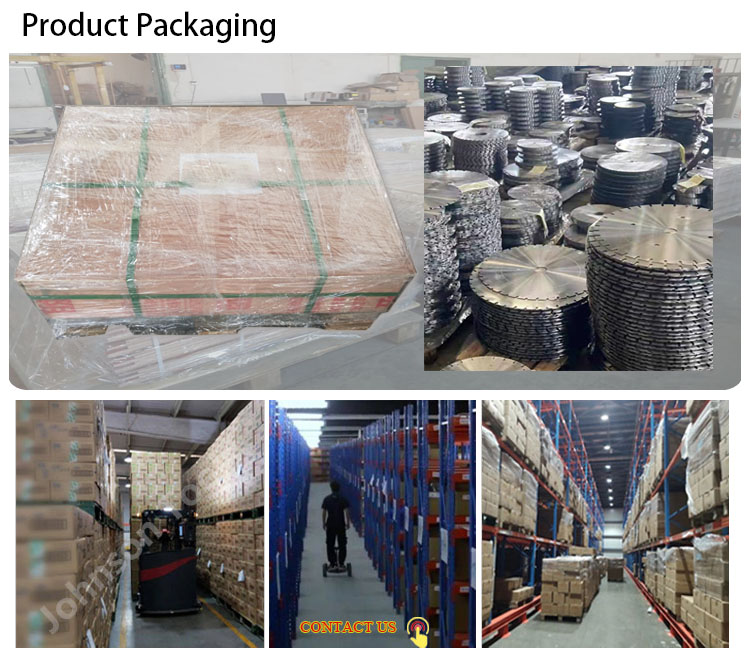

3. Packing:

Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.

Delivery way: By air, by sea, by land, by courier, etc.

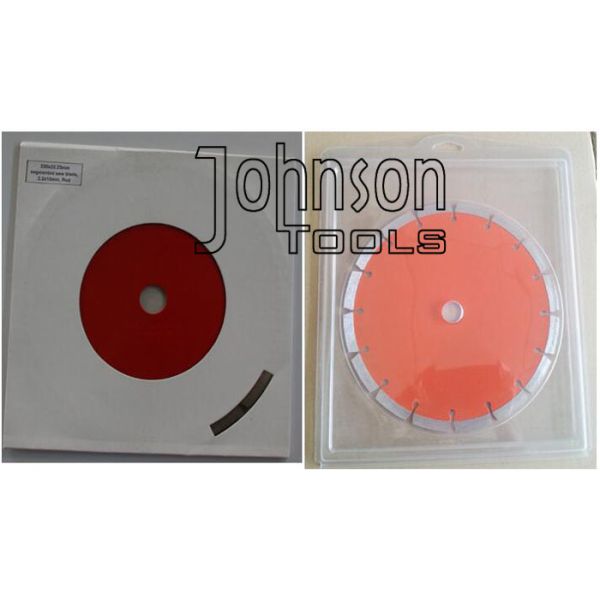

Packaging: white box , plastic case or as you request.

230mm Laser Diamond Turbo Saw Blade for Cured Concrete

230mm Laser Diamond Turbo Saw Blade for Cured Concrete
