115mm Laser Diamond Concrete Saw Blades 2.2mm Segment Concrete Diamond Blade
115mm Laser Diamond Concrete Saw Blades 2.2mm Segment Concrete Diamond Blade
115mm Laser Diamond Concrete Saw Blades 2.2mm Segment Concrete Diamond Blade
115mm Laser Diamond Concrete Saw Blades 2.2mm Segment Concrete Diamond Blade
115mm Laser Diamond Concrete Saw Blades 2.2mm Segment Concrete Diamond Blade
115mm Laser Diamond Concrete Saw Blades 2.2mm Segment Concrete Diamond Blade
115mm Laser Diamond Concrete Saw Blades 2.2mm Segment Concrete Diamond Blade
115mm Laser Diamond Concrete Saw Blades 2.2mm Segment Concrete Diamond Blade
115mm Laser Diamond Concrete Saw Blades 2.2mm Segment Concrete Diamond Blade
115mm Laser Diamond Concrete Saw Blades 2.2mm Segment Concrete Diamond Blade
Specifications
Technology :
Laser Welded Technology
Other size :
4'/5"/6"/7"/8"/9"/10"/12"/30"
Center hole :
16/20/22.23/25.4/50/60/80mm
Outer Diameter :
115mm
Brand Name :
Johnson Tools
Model Number :
115mm
Certification :
SGS, GB
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiate
Payment Terms :
Western Union
Supply Ability :
1000pcs per month
Delivery Time :
15-35days
Packaging Details :
white or colored package
Segment height :
7/10/12mm
Segment thickness :
2.2mm
Description

115mm Laser Diamond Concrete Saw Blades 2.2mm Segment Concrete Diamond Blade

1. Description:

Concrete Cutting Saw Blades are professionally designed for wet or dry cutting cured concrete, high quality diamond makes faster cuting and longer cutting life.

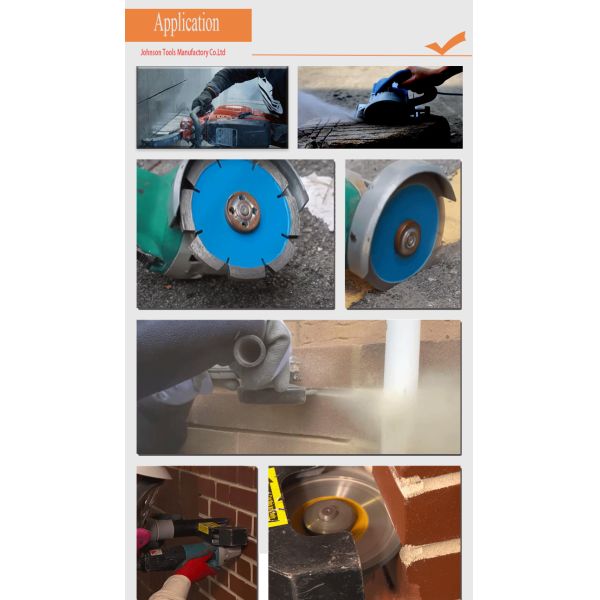

Application on Angle Grinders.​

2. Features:

Application For cutting concrete, reinforced concrete, etc
Segment Type segmented blade
Dry or Wet Dry use
Slot Key slot
Advantage Low noise, fast cutting and longer life

3. Specification:

Diameter:115mm
Segment thickness:2.2mm
Segment height:7/10/12mm
Inner hole:16mm, 20mm, 22.23mm, 25.4mm, 50mm, 60mm, 80mm

4.Parameter:

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
4.5" 115 31 2.2 7/10/12 9

Other size Concrete Saw Blade we could do as following

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
16" 400 40 3.4 10/12/15 28
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40
30" 750 40 5.0 10/12/15 46

115mm Laser Diamond Concrete Saw Blades 2.2mm Segment Concrete Diamond Blade
