400mm Dry Cut Diamond Blade , Concrete Cutting Saw For Soft / Hard Construction Materials
400mm Dry Cut Diamond Blade , Concrete Cutting Saw For Soft / Hard Construction Materials
400mm Dry Cut Diamond Blade , Concrete Cutting Saw For Soft / Hard Construction Materials
400mm Dry Cut Diamond Blade , Concrete Cutting Saw For Soft / Hard Construction Materials
400mm Dry Cut Diamond Blade , Concrete Cutting Saw For Soft / Hard Construction Materials
400mm Dry Cut Diamond Blade , Concrete Cutting Saw For Soft / Hard Construction Materials
400mm Dry Cut Diamond Blade , Concrete Cutting Saw For Soft / Hard Construction Materials
400mm Dry Cut Diamond Blade , Concrete Cutting Saw For Soft / Hard Construction Materials
400mm Dry Cut Diamond Blade , Concrete Cutting Saw For Soft / Hard Construction Materials
400mm Dry Cut Diamond Blade , Concrete Cutting Saw For Soft / Hard Construction Materials
Specifications
Machinery :
Power Saw, Walk Behind Saw, Table Saw
Application :
Soft to very hard construction materials
Usage :
Dry cutting
Performance :
Good sharpness, long lifetime
Brand Name :
Johnson Tools
Model Number :
400mm
Certification :
SGS, GB
Place of Origin :
China
MOQ :
5-10pcs
Price :
Negotiate
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100000pcs per year
Delivery Time :
Around 15-35days
Packaging Details :
White box, colored package
Type :
Circular saw concrete blade
Net weight :
2.7-3.0kg
Description


400mm Laser Welded Diamond Concrete Saw Blades for Dry Cutting Reinforced Concrete


1.Description

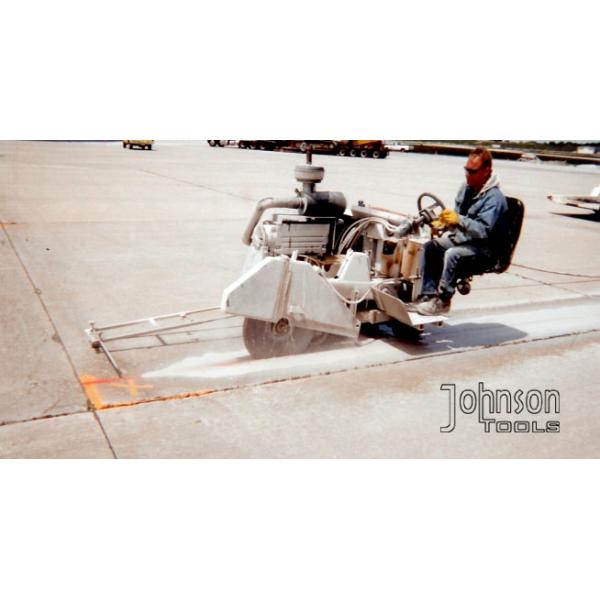

400mm diamond concrete saw blades is mainly used for the situations which contained reinforced concrete, like cutting new and old road expansion joints and bridge parapet ripper dressing.


Design different segment formula for different power machines, different hardness, different wear resistance, etc. Apply to different construction materials cutting.


Well exported to Europe, America, Africa, Australia and Asia market.


2.Specification


1. Diameter: 400mm

2. Segment thickness:3.4mm
3. Segment height: 10mm, 12mm, 15mm.
4. Inner hole: 22.23mm, 25.4mm, 50mm or as your request.


Inch

Diameter

(mm)

Teeth length

(mm)

Teeth thickness

(mm)

Teeth height

(mm)

Teeth number

(nos)
16" 400 40 3.4 10/12/15 28


Other size Concrete Saw Blade we could do as following

Inch Diameter
(mm)		 Teeth length
(mm)		 Teeth thickness
(mm)		 Teeth height
(mm)		 Teeth number
(nos)
4" 105 32 2.2 7/10/12 8
4.5" 115 31 2.2 7/10/12 9
5" 125 31 2.2 7/10/12 10
6" 150 34 2.2 7/10/12 11
7" 180 34 2.4 7/10/12 14
8" 200 40 2.4 7/10/12 13
9" 230 37 2.6 7/10/12 16
10" 250 40 2.6 10/12/15 16
12" 300 40 3.0 10/12/15 20
14" 350 40 3.2 10/12/15 24
18" 450 40 3.6 10/12/15 32
20" 500 40 4.0 10/12/15 36
24" 600 40 4.4 10/12/15 42
26" 650 40 4.4 10/12/15 42
28" 700 40 5.0 10/12/15 40
30" 750 40 5.0 10/12/15 46


400mm Dry Cut Diamond Blade , Concrete Cutting Saw For Soft / Hard Construction Materials
