Dual-Blade Arc-Slab Automatic Edge Trimming Machine
Dual-Blade Arc-Slab Automatic Edge Trimming Machine
Dual-Blade Arc-Slab Automatic Edge Trimming Machine
Dual-Blade Arc-Slab Automatic Edge Trimming Machine
Dual-Blade Arc-Slab Automatic Edge Trimming Machine
Dual-Blade Arc-Slab Automatic Edge Trimming Machine
Dual-Blade Arc-Slab Automatic Edge Trimming Machine
Dual-Blade Arc-Slab Automatic Edge Trimming Machine
Dual-Blade Arc-Slab Automatic Edge Trimming Machine
Dual-Blade Arc-Slab Automatic Edge Trimming Machine
Specifications
Max processing width :
1500mm
Operation :
Automatic
Cutting Blade Diameter :
600-800mm
Transport Package :
Load in a 20 Feet Container
Hs Code :
84641090
Color :
Yellow, Black, Customized
Gross Power :
18.5kw*2/22kw*2
Power Supply :
Electricity
Usage :

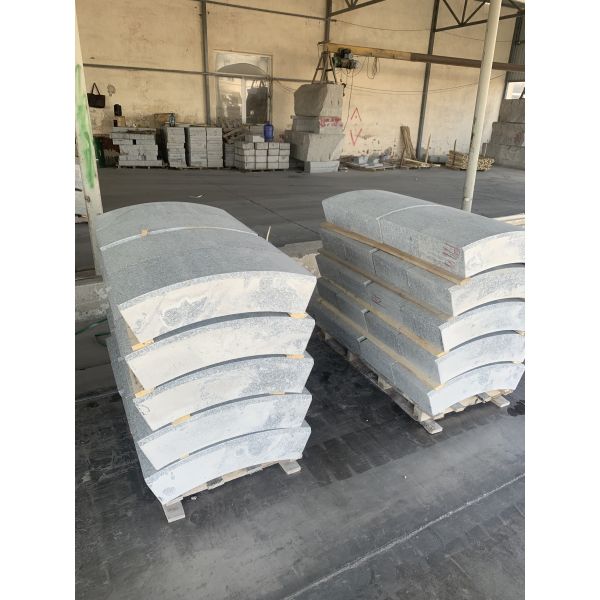

Circular column slabs/Arc kerbstones/Tombstone radials/Decorative arc tile/Countertop curved ends
Brand Name :
Xianda Machinery
Model Number :
HKB-21500C
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Place of Origin :
Jinjiang, Fujian, China
MOQ :
1 Set
Price :
To Be Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
1000 Sets/Year
Delivery Time :
15 Days
Packaging Details :
Wire rope lashing,Suitable for sea/air/land/rail transportation.
Description

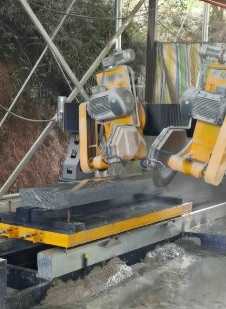

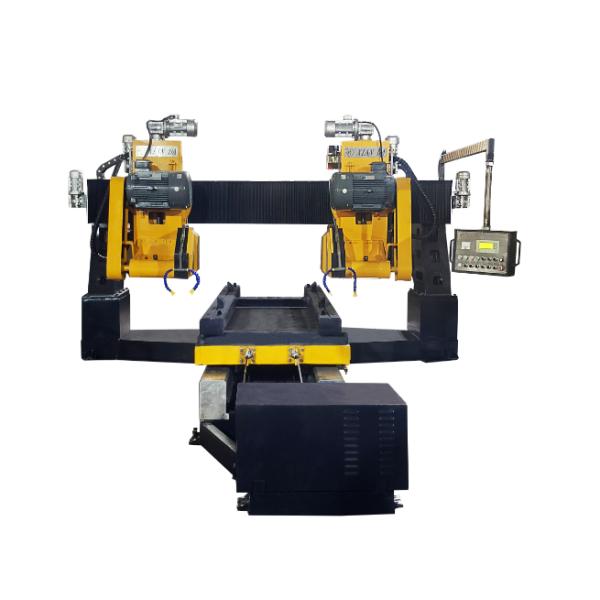

Dual-Blade Arc-Slab Automatic Edge Trimming Machine
In the competitive stone fabrication industry, efficiency, accuracy, and consistency are the cornerstones of success. Whether you're handling marble, granite, quartz, or engineered stone slabs, the final edge finish directly impacts product value and customer satisfaction. Introducing the Dual-Blade Arc-Slab Automatic Edge Trimming Machine—a game-changing solution designed to elevate your stone processing capabilities with cutting-edge technology and unparalleled performance.
Why Choose Our Dual-Blade Arc-Slab Automatic Edge Trimming Machine?

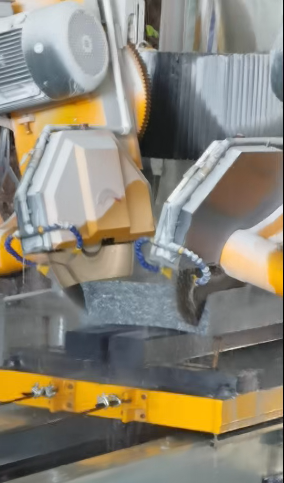

  • Dual-Blade Synergy: Features two high-performance diamond blades operating in perfect synchronization for uniform edge thickness (±0.1mm tolerance) and smooth, chip-free surfaces—reducing processing time by 40% compared to single-blade alternatives.
  • Full Automation: Advanced CNC control system with intuitive touchscreen operation minimizes manual adjustments and human error, reducing labor costs by up to 60% while maintaining strict quality standards.
  • Versatile Applications: Handles various materials (marble, granite, quartz, artificial stone) and sizes (up to 3000mm length, 1500mm width) with adjustable arc radius ranges from 50mm to 500mm.
  • Durable Construction: Robust steel frame absorbs vibration during high-speed trimming, while premium-grade diamond blades ensure long service life and resistance to wear.
Our clients report 35% increased production efficiency and 25% waste reduction after integrating this machine into their workflows.
Technical Specifications
Parameter Unit HKB-21500C
Blade diameter mm 600-800mm
Worktable size mm 1000*2500mm
Front-to-back travel mm 2500mm
Cutting head lifting stroke mm 500mm
Cutting head rotation degree ° ±45° (electric control)
Main motor power kw 18.5kw*2/22kw*2 (optional)
Total power kw 44/54kw
Max processing width (vertical cut) mm 1500mm
Gross weight kg ≈5000
Outline dimensions mm 4000*7100*2600mm
Water consumption m³/h 4
Dual-Blade Arc-Slab Automatic Edge Trimming Machine Dual-Blade Arc-Slab Automatic Edge Trimming Machine Dual-Blade Arc-Slab Automatic Edge Trimming Machine Dual-Blade Arc-Slab Automatic Edge Trimming Machine
