Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming
Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming
Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming
Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming
Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming
Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming
Specifications
Brand Name :
Xianda Machinery
Model Number :
HKB-41500
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Place of Origin :
Jinjiang, Fujian, China
MOQ :
1 Set
Price :
To Be Negotiable
Payment Terms :
,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets/Year
Delivery Time :
15 Days
Packaging Details :
Wire rope lashing,Suitable for sea/air/land/rail transportation.
Condition :
New
Model :
HKB-41500
Gross Motor :
35kw
Outline Dimension :
4500*3800*2100mm
Power Source :
Electric
Warranty :
1 year
Cutting Precision :
High
Rotation Angle :
0-60°
Description

HKB-41500

Four-Blade Arc-Slab Edge Cutting Machine
Trim, bevel and finish circular column slabs 10–20× faster than manual work

1. Machine Overview

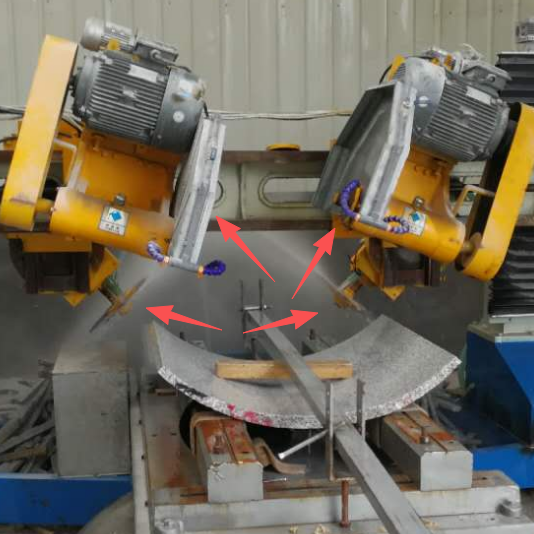

The HKB-41500 series is a gantry-type, four-blade edge cutter engineered for high-precision trimming of circular stone slabs (arc plates) up to 1.5 m long × 1.5 m wide.
Four diamond blades cut simultaneously at a 0–60° adjustable angle, delivering column-ready accuracy and 10–20× manual speed in one automatic pass.

2. Quick Specifications

Parameter Unit HKB-41500
Max processing length mm 1500
Max processing width mm 1500
Cutting angle ° 0~60°
Gross power kw 35
Outline dimension
4500×3800×2100
Gross weight kg ≈4500
Water consumption m³/h 4

Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming

Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming

Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming

Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming

Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming

Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming

Four-Blade Arc-Slab Edge Cutting Machine with 0-60° Adjustable Angle and 1 Year Warranty for High-Precision Stone Edge Trimming

3. Key Features

  • 0–60° Cutting Angle → any bevel or arris without tool change
  • Arc-Slab Worktable → self-centering rollers, no segment shift
  • Steel-Wire Rope Feed → overload slip protects blades from jamming
  • Micro-Computer Control → one-button recall
  • Wet-Cut Water Curtain → recycles 4 m³/h, dust-free workshop

4. Typical Applications

  • Circular column slabs – hotel lobbies, façade columns
  • Arc kerbstones—curved road edges
  • Tombstone radials—curved headstone borders
  • Decorative arc tiles – plaza & garden edges
  • Countertop curved ends—bar-top returns

5. Workflow (1 Operator)

  1. Place arc slab on roller table
  2. Select program (angle, passes, length)
  3. Press START—blades advance automatically
  4. Unload finished piece—ready for column assembly

6. Package, Delivery & Warranty

  • Export crate: wire rope lashing, suitable for sea/air/land/rail transportation.
  • Delivery: 20 days (stock) / 30 days (custom colour)
  • Warranty: 12 months for parts
  • Installation: video-guide + remote support; on-site service optional
  • Spare parts: 48 h dispatch from regional warehouse
Keywords: HKB-41500, HKB-4150C, four-blade arc slab edge cutting machine, circular slab edge trimmer, granite arc edge cutter, marble curved edge cutting machine, automatic edge trimming machine, column slab edge processor, high-efficiency stone edge cutter, arc kerbstone cutting machine
Meta Description: The HKB-41500/4150C four-blade arc-slab edge cutting machine trims circular stone slabs 10–20× faster than manual work. 0–60° angle, 1.5 m width, column-ready accuracy. Order 1 unit.
