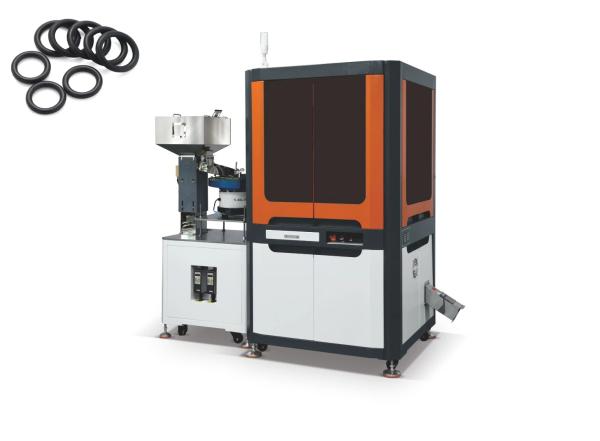

High Speed High Accuracy Optical Visual Inspection Machine For O Ring
High Speed High Accuracy Optical Visual Inspection Machine For O Ring
High Speed High Accuracy Optical Visual Inspection Machine For O Ring
High Speed High Accuracy Optical Visual Inspection Machine For O Ring
Specifications
Brand Name :
DGAX
Model Number :
SquT
Certification :
CE
Place of Origin :
Dongguan,China
MOQ :
1set
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
100sets/month
Delivery Time :
45-60days
Packaging Details :
Foam inner+ outside wooden case
Function :
Products appearance defect inspection
Application :
Rubbers, Plastics, PTFE, Hardware
Warranty :
1 Year
Core Components :
Servo Motor, PLC, cylinder
Power supply :
AC220V±10% 50HZ/60HZ
Efficiency :
Max 36,000pcs/h (Depends on size and material )
Volume :
Feeding device 300L
Quantity of Camera :
Depends on detection requirement
Description

High speed high accuracy optical visual inspection machine for O ring

Key Features

✔ Ultra-Precise Measurement – ±2μm accuracy for ID/OD/cross-section (meets ISO 3601-3 standards)
✔ Lightning-Fast Inspection – 1,800+ O-rings/hour (with auto-loading system)
✔ Multi-Defect Detection – Simultaneously checks:
→ Surface defects (cracks ≥20μm, bubbles, inclusions)
→ Dimensional errors (ovality >0.5%, diameter tolerances ±0.03mm)
→ Contamination (embedded particles ≥15μm)

Advanced Optical System

  • Dual 16MP Cameras – Top/bottom synchronized inspection

  • Telecentric Lenses – Eliminates perspective distortion

  • 3D Laser Profilometer – Measures cross-section thickness (±1μm)

  • Adaptive Lighting – 8-channel RGB-IR for all rubber colors (black/red/transparent)

Smart Defect Classification

Defect Type Detection Limit Rejection Criteria
Critical Cracks ≥0.02mm depth Automatic NG binning
Dimensional NG Beyond ±0.05mm SPC alarm
Surface Contamination ≥30μm particles Customer-definable

Industry 4.0 Ready

→ AI Self-Learning – Improves recognition for new rubber compounds
→ Digital Twin – Compares with CAD models in real-time
→ OEE Dashboard – Tracks yield, downtime, defect trends

Material Compatibility

  • All Rubber Types: NBR, FKM, EPDM, Silicone (Shore A 30-90)

  • Special Applications: Metal-insert O-rings, X-ring profiles
