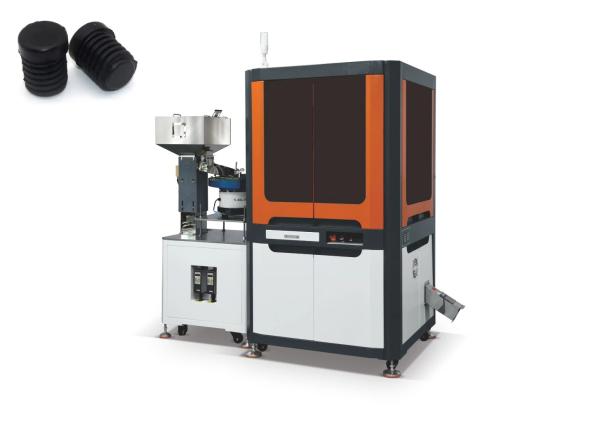

CCD High Speed Optical Visual Inspection Machine For Rubber Grommet
CCD High Speed Optical Visual Inspection Machine For Rubber Grommet
Specifications
Brand Name :
DGAX
Model Number :
SquT
Certification :
CE
Place of Origin :
Dongguan,China
MOQ :
1set
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
100sets/month
Delivery Time :
45-60days
Packaging Details :
Foam inner+ outside wooden case
Function :
Products defect inspection
Application :
Rubbers, Plastics, PTFE, Hardware
Warranty :
1 Year
Core Components :
Servo Motor, PLC, cylinder
Power supply :
AC220V±10% 50HZ/60HZ
Efficiency :
Max 36,000pcs/h (Depends on size and material )
Volume :
Feeding device 300L
Quantity of Camera :
Depends on detection requirement
Description

CCD high speed Optical visual inspection machine for rubber grommet

(100% Automated Defect Detection for Sealing Components)

Rubber-Specific Inspection Capabilities

✔ Material-Adaptive Imaging – Specialized lighting for black/colored rubber (EPDM, NBR, silicone)
✔ Elasticity Compensation – AI accounts for deformation during handling (±0.02mm accuracy)
✔ Critical Sealing Zone Focus – Enhanced detection at:
→ Lip edges (micro-tears ≥25μm)
→ Compression grooves (profile deviations >5%)
→ Mold parting lines (flash ≥0.1mm)

Technical Highlights

  • Optics: 16MP polarized CCD + coaxial illumination (glare suppression for glossy rubber)

  • Throughput: 1,500 pcs/min (with anti-static conveyor)

  • Defect Library: Pre-trained models for common rubber defects (flow lines, scorch marks, under-cure)

  • Compliance: Meets ASTM D2000 and SAE J200 material standards

Targeted Rubber Defects

Defect Type Detection Sensitivity Impact
Voids/Inclusions ≥50μm Seal failure
Dimensional Shrinkage ±0.07mm Fit issues
Surface Cracks 0.05mm depth Durability
Mold Contamination Foreign material ≥100μm Compliance

Industry-Specific Solutions

  • Automotive: Adhesion check between rubber/metal inserts (hybrid grommets)

  • HVAC: Detection of foam cell ruptures in sponge rubber variants

  • Medical: USP Class VI compliance validation

Why Specialized for Rubber?

→ Non-Contact Inspection: Prevents deformation of soft materials
→ Dynamic Thresholding: Auto-adjusts for batch-to-batch compound variations
→ Aging Resistance Test: Optional UV exposure chamber for predictive lifespan analysis
