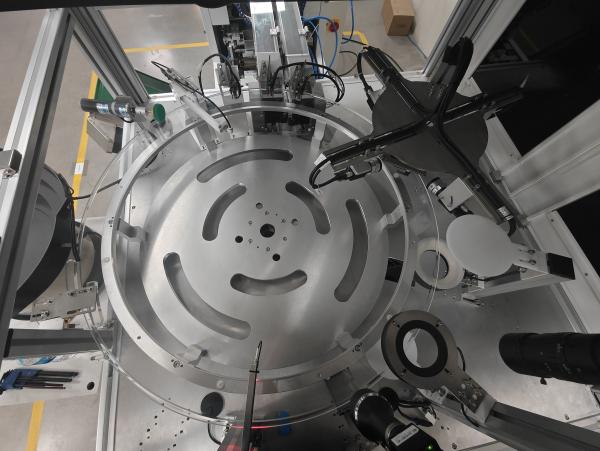

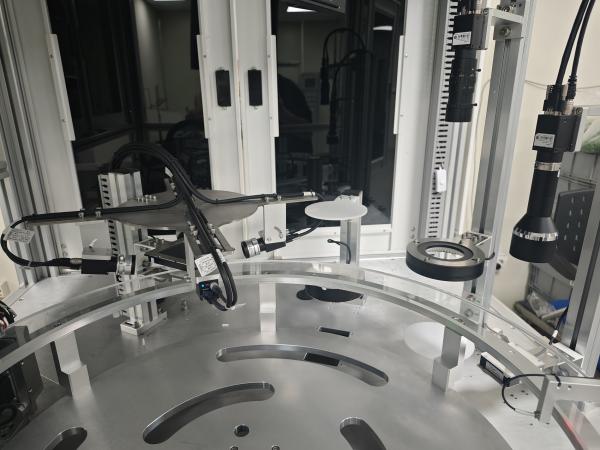

Fast Speed Intelligent Visual Inspection Machine For Cup Seal Detection
Fast Speed Intelligent Visual Inspection Machine For Cup Seal Detection
Fast Speed Intelligent Visual Inspection Machine For Cup Seal Detection
Fast Speed Intelligent Visual Inspection Machine For Cup Seal Detection
Fast Speed Intelligent Visual Inspection Machine For Cup Seal Detection
Fast Speed Intelligent Visual Inspection Machine For Cup Seal Detection
Fast Speed Intelligent Visual Inspection Machine For Cup Seal Detection
Fast Speed Intelligent Visual Inspection Machine For Cup Seal Detection
Specifications
Brand Name :
DGAX
Model Number :
SquT
Certification :
CE
Place of Origin :
Dongguan,China
MOQ :
1set
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
100sets/month
Delivery Time :
45-60days
Packaging Details :
Foam inner+ outside wooden case
Function :
Products appearance defect inspection
Application :
Rubbers, Plastics, PTFE, Hardware,cup seal
Warranty :
1 Year
Core Components :
Servo Motor, PLC, cylinder
Power supply :
AC220V±10% 50HZ/60HZ
Efficiency :
Max 36,000pcs/h (Depends on size and material )
Volume :
Feeding device 300L
Quantity of Camera :
Depends on detection requirement
Description

Fast speed intelligent visual inspection machine for Cup seal detection

Key Features

✔ Ultra-Fast Inspection – 1,500+ seals/min with ±5μm accuracy
✔ Multi-Angle Defect Recognition – 360° imaging with rotary staging
✔ AI-Powered Classification – Detects:
→ Critical defects (cracks, tears >30μm)
→ Dimensional errors (ID/OD ±0.05mm, lip thickness variations)
→ Surface flaws (scratches, contamination, molding defects)

Technical Specifications

  • Optical System:

    • 20MP global shutter CCD + telecentric lens

    • 3D laser profilometer (for lip geometry analysis)

  • Lighting: Multi-spectral LED array (diffused + coaxial)

  • Throughput: 25 pcs/second with pneumatic sorting

  • Software: Deep learning algorithm (≤0.2% false rejects)

Target Defects

Defect Type Detection Capability Impact
Lip Deformation >0.1mm deviation Seal failure
Micro-Cracks ≥20μm length Leak risk
Flash Material ≥0.05mm width Assembly issues
Contaminants ≥50μm particles Contamination risk

Industry Applications

  • Hydraulic/Pneumatic Seals – Ensures leak-proof performance

  • Automotive Fuel Systems – IATF 16949 compliant reporting

  • Medical Device Seals – ISO 13485 validation support

Smart Functions

→ Self-Calibration – Automatic compensation for material/color changes
→ Digital Twin – Compares with CAD models (GD&T analysis)
→ Cloud Analytics – Real-time OEE/defect trend monitoring
