Specifications
Brand Name :
HANSWELD
Model Number :
HSD-610
Place of Origin :
China
MOQ :
1 SET
Price :
$4,000.00 - $10,000.00/Pieces
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 Sets/per week
Delivery Time :
3-7 work days
Packaging Details :
wooden box
Voltage :
AV380V
Dimension(L*W*H) :
1960*2200*2100MM
Forming Width :
Forming Length
Heating Power (kW) :
15 kW
Description

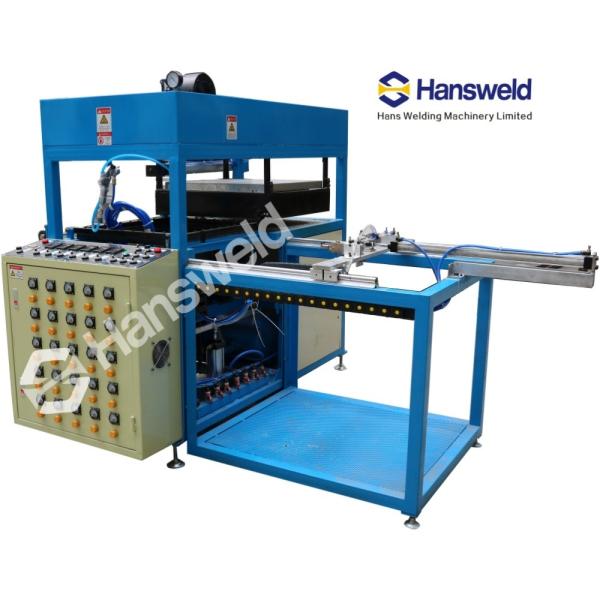

PVC PET Blister Clamshell Semi-Auto Vacuum Forming Machine For Sale

Advantage:

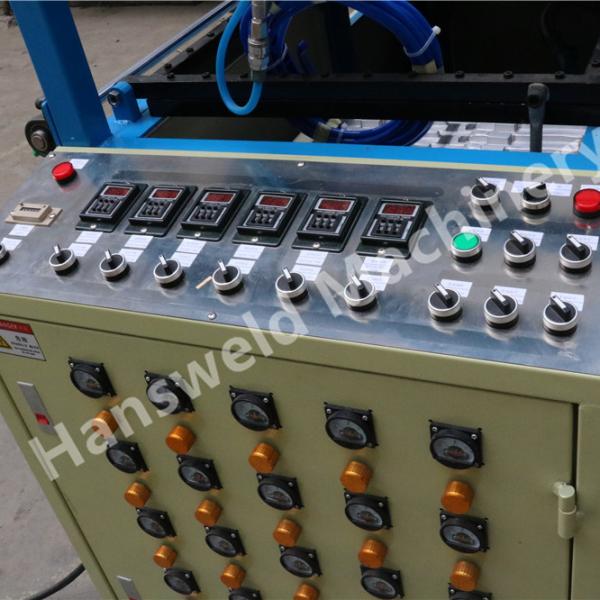

1.25 groups of solid-state voltage regulators and ammeters, simple and intuitive control of each heating brick. 2. Taiwan Songling digital display heating time control, easy to operate, simple and clear control panel. Button switch, more personal operating habits, improve efficiency. 3. Use the vacuum pump storage tank to design and ensure sufficient vacuum. Each time the molding is in place, it will automatically push the heating furnace, saving time and labor, greatly reducing the labor input and improving the efficiency.
The Machine Parameters
Model HSD-610
Voltage 380V 3P 50/60HZ
Power 12.5KW
Forming Size 560*610MM
Forming Height 200MM
Production speed 200-300Moulds/H
The thickness of the material 0.2-1.5MM
Machine Size 1800*1200*2000MM
Machine Weight 600KG
