Thin Plastic Sheet Semi Automatic Vacuum Thermoforming Machine
Thin Plastic Sheet Semi Automatic Vacuum Thermoforming Machine
Specifications
Brand Name :
HANSWELD
Model Number :
HSD-610
Place of Origin :
China
MOQ :
1 SET
Price :
$4,000.00 - $10,000.00/Pieces
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 Sets/per week
Delivery Time :
3-7 work days
Packaging Details :
wooden box
Product Type :
Blister
Weight (T) :
0.8 T
Heating Pow :
15 kW
Key Selling Points :
Easy to Operate
Forming Width :
: 610 mm
Operation Mode: :
Automatic
Description

Product Features:

This machine can heat and soften PVC, PE, pet, PETG, PP, PC, PS, hips, APET and other coil or sheet materials, and then absorb them in vacuum to form different shapes of blisters. It is especially suitable for the Blister Factory, and can also be used in small batch blister production.

Advantage:

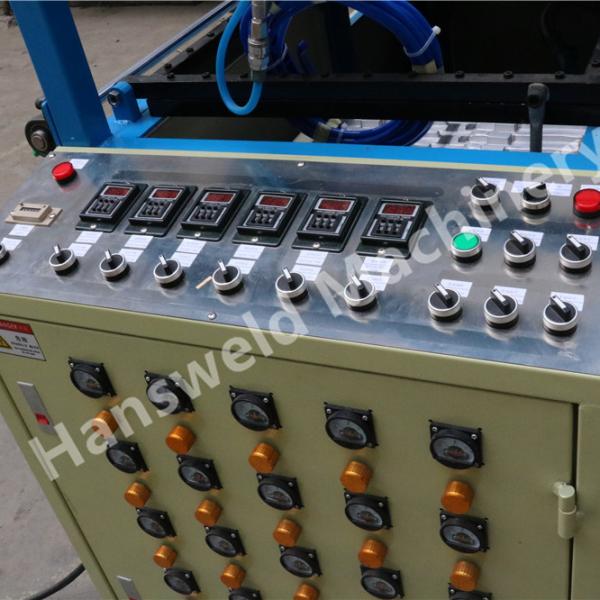

1.25 groups of solid-state voltage regulators and ammeters, simple and intuitive control of each heating brick. 2. Taiwan Songling digital display heating time control, easy to operate, simple and clear control panel. Button switch, more personal operating habits, improve efficiency. 3. Use the vacuum pump storage tank to design and ensure sufficient vacuum. Each time the molding is in place, it will automatically push the heating furnace, saving time and labor, greatly reducing the labor input and improving the efficiency.

Main features:

1. Automatic pushing furnace design can greatly reduce the labor input and improve the production efficiency and product quality. 2. Button control or foot control can be selected to facilitate operation. 3. 25 pieces of ceramic infrared heating bricks can flexibly control the temperature of each brick, which is suitable for materials of different sizes and thicknesses. 4. 25 groups of solid-state voltage regulators and ammeters, simple and intuitive control of each heating brick. 5. Large scale cold air design makes the product cool down quickly. 6. Manual semi-automatic mode selection, convenient for proofing or small batch production. 7. Raw material roll, thickness 0.1-1.0mm.

Model HSD-610
Voltage 380V 3P 50/60HZ
Power 12.5KW
Forming Size 560*610MM
Forming Height 200MM
Production speed 200-300Moulds/H
The thickness of the material 0.2-1.5MM
Machine Size 1800*1200*2000MM
Machine Weight 600KG

Thin Plastic Sheet Semi Automatic Vacuum Thermoforming Machine
