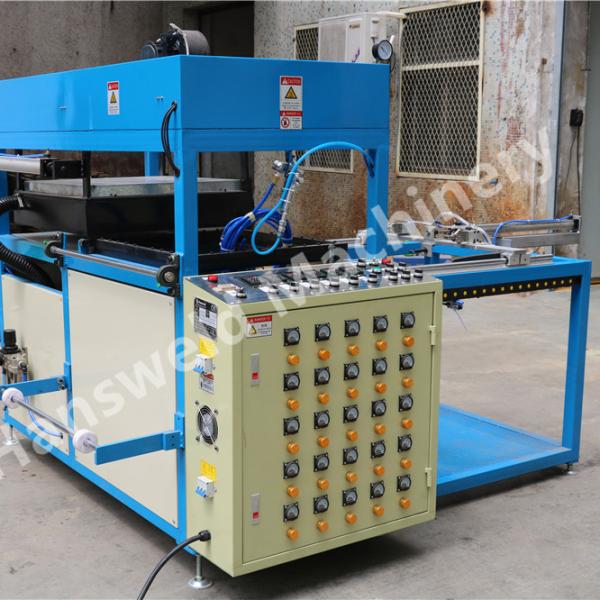

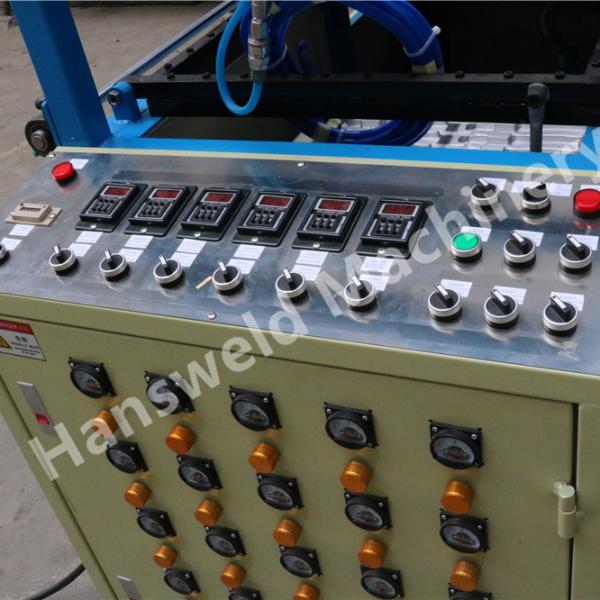

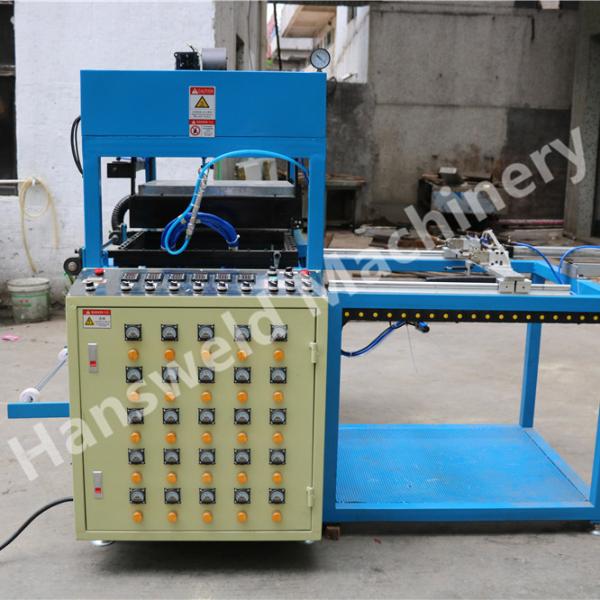

PLC Blister Vacuum Forming Machine Equipment With PID PET PVC Sheet
PLC Blister Vacuum Forming Machine Equipment With PID PET PVC Sheet
PLC Blister Vacuum Forming Machine Equipment With PID PET PVC Sheet
PLC Blister Vacuum Forming Machine Equipment With PID PET PVC Sheet
PLC Blister Vacuum Forming Machine Equipment With PID PET PVC Sheet
PLC Blister Vacuum Forming Machine Equipment With PID PET PVC Sheet
PLC Blister Vacuum Forming Machine Equipment With PID PET PVC Sheet
PLC Blister Vacuum Forming Machine Equipment With PID PET PVC Sheet
Specifications
Brand Name :
HANSWELD
Model Number :
HSD-610
Place of Origin :
China
MOQ :
1 SET
Price :
$4,000.00 - $10,000.00/Pieces
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 Sets/per week
Delivery Time :
3-7 work days
Packaging Details :
wooden box
Product Type :
Blister
Weight (T) :
0.8 T
Voltage :
AV380V
Dimension(L*W*H) :
1960*2200*2100MM
Production Speed :
200-300moulds/H
Forming height: :
200mm
Description

1. Main Application:

This type machine can be used for plastic film for all kinds, such as toys, hardware, food, electronics, medicine, with a transparent film coating repacked in a board, form a seal packing.

This type machine can also produce plastic ceiling panel, cake boxes, lunch boxes, automobile materials and sanitary materials etc, which can be produced with three-dimensional relief pattern like 3D advertisement products.

Suitable material: PVC, PET, PP, PC, ABS, PS, EPS, HIPS, LDPE, HDPE and all thermoplastic sheet.

Product Features:

This machine can heat and soften PVC, PE, pet, PETG, PP, PC, PS, hips, APET and other coil or sheet materials, and then absorb them in vacuum to form different shapes of blisters. It is especially suitable for the Blister Factory, and can also be used in small batch blister production.

Model HSD-610
Voltage 380V 3P 50/60HZ
Power 12.5KW
Forming Size 560*610MM
Forming Height 200MM
Production speed 200-300Moulds/H
The thickness of the material 0.2-1.5MM
Machine Size 1800*1200*2000MM
Machine Weight 600KG

PLC Blister Vacuum Forming Machine Equipment With PID PET PVC Sheet

PLC Blister Vacuum Forming Machine Equipment With PID PET PVC Sheet

PLC Blister Vacuum Forming Machine Equipment With PID PET PVC Sheet

PLC Blister Vacuum Forming Machine Equipment With PID PET PVC Sheet
