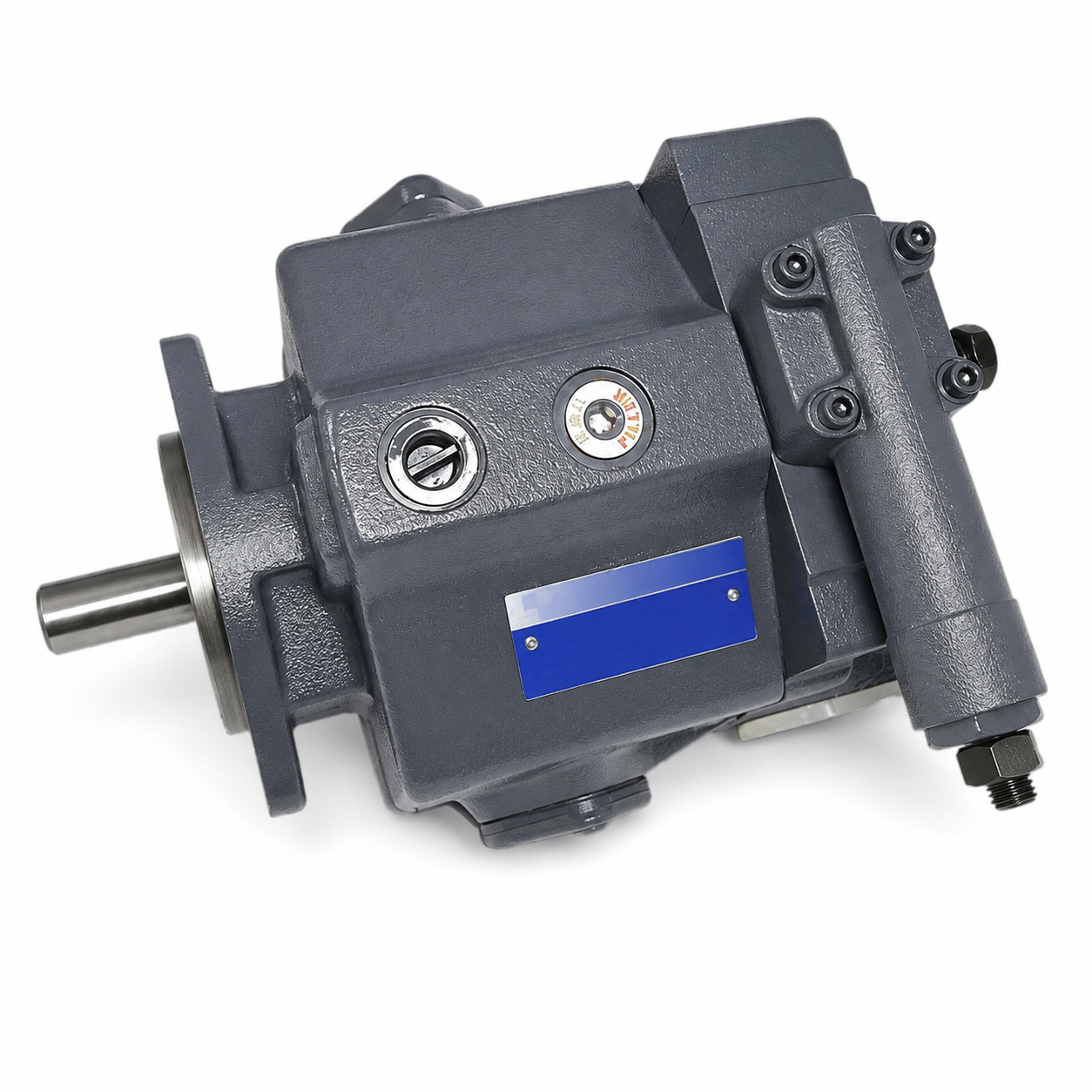

TOKYO KEIKI P8VMR-10-CBC-10 Variable Piston Pump
TOKYO KEIKI P8VMR-10-CBC-10 Variable Piston Pump
Specifications
Delivery Time :
7-14 Days
Maximum Displacement :
Approximately 8.4 cm³/rev
Model Number :
P8VMR-10-CBC-10
Design / Special Specification :
Pump Design 10 / Control Design 10
Price :
USD 330.26 /Unit
Packaging Details :
original packing
Speed Range :
Obsolete Legacy Model, Replacement Verification Required
Supply Ability :
1-10 Pcs , 3-5days ; 11-20Pcs, 5-7days ; ≥ 21Pcs , both parties negotiate the lead time
Rotation / Mounting :
CClockwise Viewed from Shaft End
Pressure Adjustment Range :
Approximately 35 kPa
Payment Terms :
T/T
Control Method :
Pressure Compensator with Maximum Displacement Adjustment
Maximum Working Pressure :
Approximately 1.8 to 7 MPa
Place of Origin :
Japan
MOQ :
1
Pump Type :
Low-Noise Swash-Plate Variable Displacement Piston Pump
Brand Name :
TOKYO KEIKI
Description

TOKYO KEIKI TOKIMEC P8VMR-10-CBC-10 Variable Piston Pump

The TOKYO KEIKI TOKIMEC P8VMR-10-CBC-10 is a legacy compact variable displacement axial piston pump with a maximum displacement of approximately 8.4 cm³/rev.

It uses pressure-compensator control and includes a maximum-displacement adjustment feature. The pump is intended for low-noise hydraulic systems operating over an approximate pressure-setting range of 1.8 to 7 MPa.

Pressure and Displacement Control

The pressure compensator automatically reduces displacement as outlet pressure reaches the selected cutoff setting. This helps reduce energy loss when the circuit does not require full pump flow.

The additional displacement adjustment allows the maximum pump output to be limited mechanically.

Technical Specifications

BrandTOKYO KEIKI / TOKIMEC
ModelP8VMR-10-CBC-10
Pump TypeLegacy low-noise variable displacement axial piston pump
Maximum DisplacementApproximately 8.4 cm³/rev
RotationClockwise when viewed from the shaft end
Control MethodPressure compensator control
Maximum Displacement AdjustmentProvided
Pressure Setting RangeApproximately 1.8 to 7 MPa
Maximum Case-Drain PressureApproximately 35 kPa
Pump Design Number10
Control Design Number10
Product StatusObsolete legacy model

Installation Notes

  • Verify the drive rotation before coupling the replacement pump.
  • Fill the pump case and suction line with clean hydraulic oil before startup.
  • Keep the case-drain line unrestricted and directly connected to the reservoir.
  • Confirm the existing maximum-displacement setting before removing the old pump.
  • Check shaft dimensions, mounting pattern and port locations before shipment.

Legacy and Replacement Notes

This Design 10 model is obsolete and should be listed as old stock or on a replacement-inquiry basis. Inventory may consist of unused old stock, refurbished pumps or third-party replacements.

Some cross-reference sources identify P8VMR-20-CB-10 as a replacement. Because the replacement code does not retain the final C, confirm whether maximum-displacement adjustment is required before approving the substitution.
