TOKYO KEIKI P8VMR-10-CB-10 Variable Piston Pump
TOKYO KEIKI P8VMR-10-CB-10 Variable Piston Pump
Specifications
Delivery Time :
7-14 Days
Maximum Displacement :
Approximately 8.4 cm³/rev
Model Number :
P8VMR-10-CB-10
Design / Special Specification :
Pump Design 10 / Control Design 10
Supply Ability :
1-10 Pcs , 3-5days ; 11-20Pcs, 5-7days ; ≥ 21Pcs , both parties negotiate the lead time
Rotation / Mounting :
CClockwise Viewed from Shaft End
Pressure Adjustment Range :
Approximately 1.8 to 7 MPa
Payment Terms :
T/T
Control Method :
Pressure Compensator with Maximum Displacement Adjustment
Maximum Working Pressure :
Pressure Compensator without Maximum Displacement Adjuster
Price :
USD 444.50 /Unit
Packaging Details :
original packing
Product Status :
Obsolete Legacy Model, Replacement Verification Required
Place of Origin :
Japan
MOQ :
1
Pump Type :
Low-Noise Swash-Plate Variable Displacement Piston Pump
Brand Name :
TOKYO KEIKI
Description

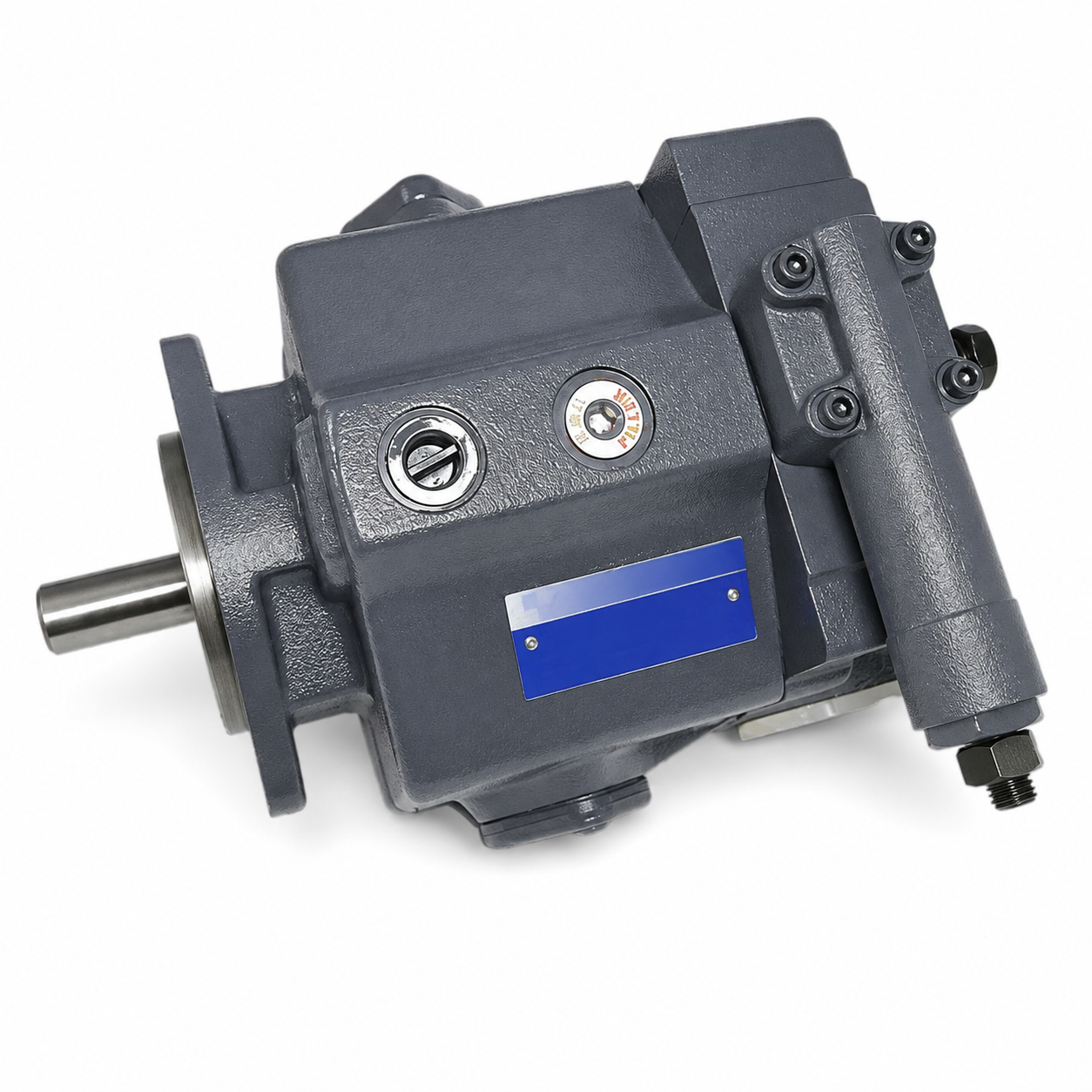

TOKYO KEIKI TOKIMEC P8VMR-10-CB-10 Variable Piston Pump

The TOKYO KEIKI TOKIMEC P8VMR-10-CB-10 is a legacy low-noise variable displacement axial piston pump with an approximate maximum displacement of 8.4 cm³/rev.

The CB configuration uses pressure-compensator control without the additional maximum-displacement adjuster identified by a final C in the CBC version.

Pressure Compensator Function

The compensator reduces pump displacement when delivery pressure reaches the selected setting. This allows pressure to be maintained while reducing unnecessary pump delivery.

The approximate pressure-setting range is 1.8 to 7 MPa. The exact setting must be verified during commissioning with a calibrated pressure gauge.

Technical Specifications

BrandTOKYO KEIKI / TOKIMEC
ModelP8VMR-10-CB-10
Pump TypeLegacy low-noise variable displacement axial piston pump
Maximum DisplacementApproximately 8.4 cm³/rev
RotationClockwise when viewed from the shaft end
Control MethodPressure compensator control
Maximum Displacement AdjusterNot identified in the CB configuration
Pressure Setting RangeApproximately 1.8 to 7 MPa
Maximum Case-Drain PressureApproximately 35 kPa
Pump Design Number10
Control Design Number10
Product StatusObsolete legacy model

Installation Notes

  • Check motor rotation before installing the coupling.
  • Prime the pump and fill the case before starting the hydraulic power unit.
  • Keep the suction line short, adequately sized and airtight.
  • Return the case drain directly to the tank.
  • Confirm the original pressure setting before removing the existing pump.

Legacy and Replacement Notes

This Design 10 pump is obsolete and should be offered as old stock or on a replacement-inquiry basis. Confirm whether the offered unit is unused old stock, refurbished or a compatible replacement.

P8VMR-20-CBC-10 is cited as a replacement candidate by some suppliers, but the additional C indicates a different displacement-adjustment configuration. Confirm interchangeability before shipment.
