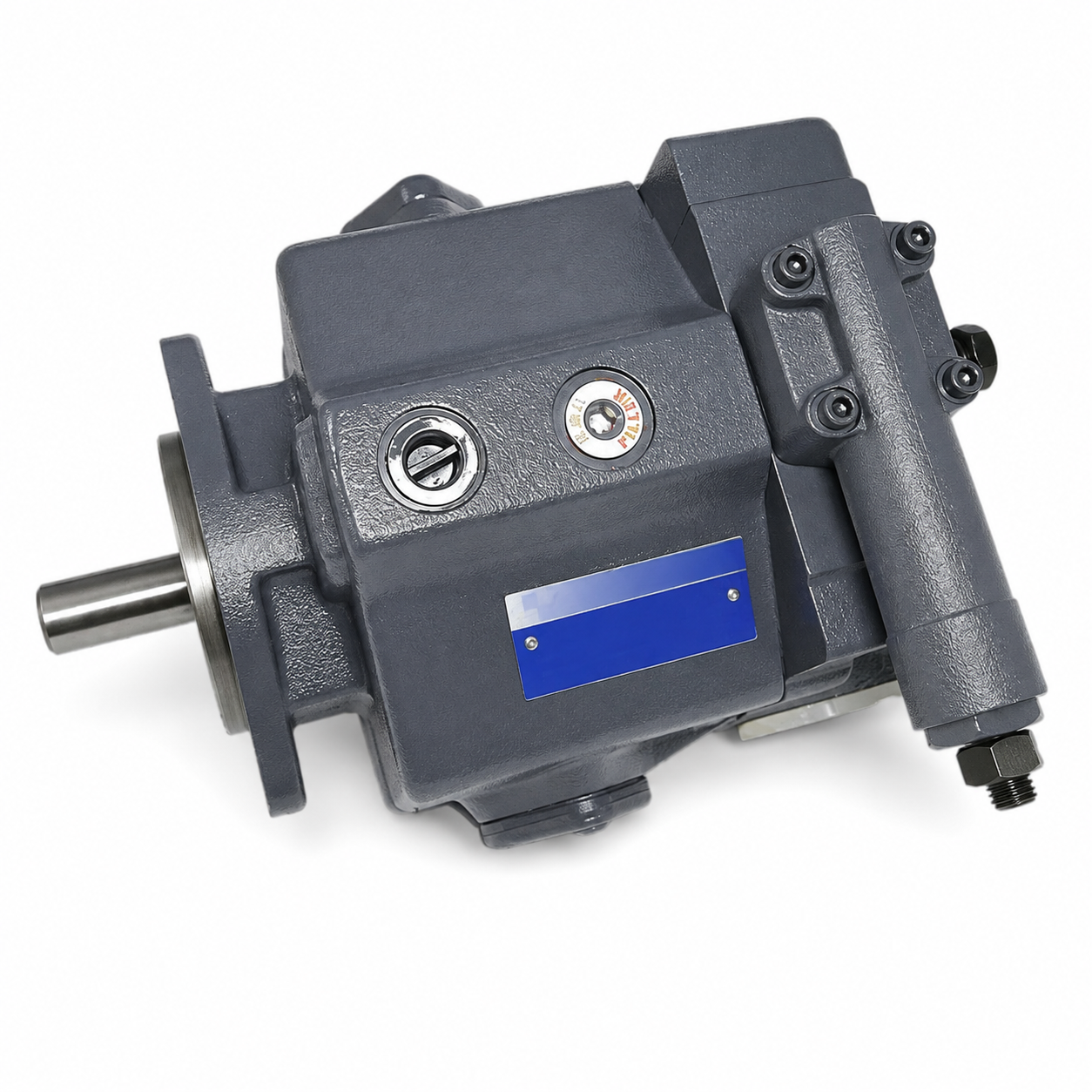

TOKYO KEIKI P8VMR-20-CBC-10 Variable Piston Pump
TOKYO KEIKI P8VMR-20-CBC-10 Variable Piston Pump
Specifications
Delivery Time :
7-14 Days
Maximum Displacement :
Approximately 8.4 cm³/rev
Model Number :
P8VMR-20-CBC-10
Design / Special Specification :
Pump Design 20 / Control Design 10
Maximum Working Pressure :
Approximately 1.8 to 7 MPa
Price :
USD 349.30 /Unit
Packaging Details :
original packing
Speed Range :
Current Replacement-Stock Configuration, Subject to Availability
Supply Ability :
1-10 Pcs , 3-5days ; 11-20Pcs, 5-7days ; ≥ 21Pcs , both parties negotiate the lead time
Rotation / Mounting :
Clockwise Viewed from Shaft End
Pressure Adjustment Range :
Approximately 35 kPa
Payment Terms :
T/T
Control Method :
Pressure Compensator with Maximum Displacement Adjustment
Place of Origin :
Japan
MOQ :
1
Pump Type :
Low-Noise Variable Displacement Axial Piston Pump
Brand Name :
TOKYO KEIKI
Description

TOKYO KEIKI TOKIMEC P8VMR-20-CBC-10 Variable Piston Pump

The TOKYO KEIKI TOKIMEC P8VMR-20-CBC-10 is a compact low-noise variable displacement axial piston pump with a maximum displacement of approximately 8.4 cm³/rev.

The pump uses pressure-compensator control and includes maximum-displacement adjustment. It is intended for relatively small hydraulic power units and industrial pressure-control systems operating within the approximately 1.8 to 7 MPa range.

Control Function

When delivery pressure reaches the compensator setting, the swash plate moves toward minimum displacement so that the pump supplies only the flow required to maintain pressure.

The maximum-displacement adjuster can be used to limit pump output. It is not a substitute for a separate flow-control valve where pressure-compensated flow regulation is required.

Technical Specifications

BrandTOKYO KEIKI / TOKIMEC
ModelP8VMR-20-CBC-10
Pump TypeLow-noise variable displacement axial piston pump
Maximum DisplacementApproximately 8.4 cm³/rev
RotationClockwise when viewed from the shaft end
Control MethodPressure compensator control
Maximum Displacement AdjustmentProvided
Pressure Setting RangeApproximately 1.8 to 7 MPa
Maximum Case-Drain PressureApproximately 35 kPa
Pump Design Number20
Control Design Number10

Installation Notes

  • Verify clockwise rotation before starting the drive motor.
  • Prime the suction line and fill the pump case before startup.
  • Route the case drain directly to the tank with minimal back pressure.
  • Do not operate continuously outside the specified pressure range.
  • Adjust the maximum displacement only after releasing system pressure.
  • Confirm the shaft, mounting flange and port positions against the existing pump.

Replacement Notes

This Design 20 model is commonly identified as a replacement for certain Design 10 P8VMR variants. However, the CB and CBC suffixes indicate different maximum-displacement adjustment configurations.

Confirm the complete old and new model codes before replacement. Installation dimensions alone do not prove that the control function is identical.
