LED Navigation Buoy Lights Smart AtoN Marine Lantern IP68 For Harsh Sea Conditions
LED Navigation Buoy Lights Smart AtoN Marine Lantern IP68 For Harsh Sea Conditions
LED Navigation Buoy Lights Smart AtoN Marine Lantern IP68 For Harsh Sea Conditions
LED Navigation Buoy Lights Smart AtoN Marine Lantern IP68 For Harsh Sea Conditions
Specifications
Brand Name :
Dexon
Model Number :
DX-ML160
Certification :
CE, ISO9001, IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
USD 680～1000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Color :
Red/Green/White/Yellow/Blue
Light Source :
LED
Operating Temperature :
-35°C to +65°C
Visibility Range :
5-11nautical miles
Lens Material :
Optical Acrylic
Protection Level :
IP68
Description
Navigation Buoy LED Light withstand the most challenging marine conditions

Buoys ｜Beacons ｜Harbor Entrances ｜Offshore Platforms ｜Marinas

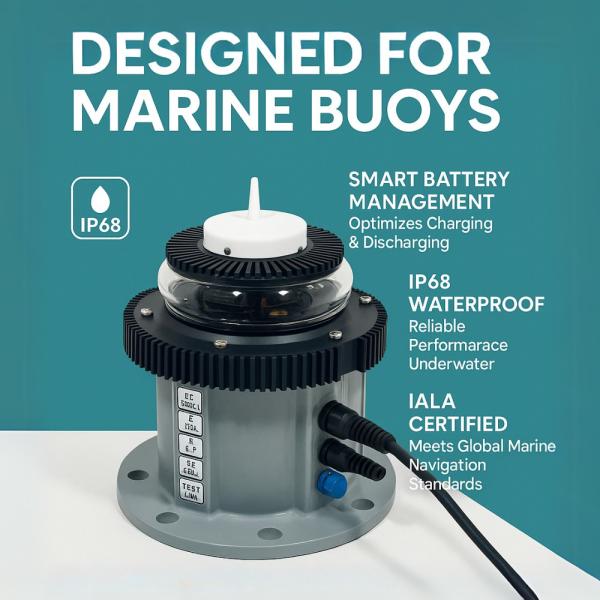

The DX-ML160 is a compact, IALA-compliant LED marine light that has been built for both floating and fixed AtoN installations. The product incorporates a state-of-the-art battery management system that automatically adjusts charge and discharge cycles when connected to an external power source. This feature enhances battery longevity and minimises service requirements, contributing to a more efficient and reliable performance. The device has an IP68-rated, fully sealed design and durable ABS+PC housing, making it reliable in saltwater, storms and submersion. This unit is perfectly suited to remote or unmanned operations, where long-term durability and stability are paramount.

LED Navigation Buoy Lights Smart AtoN Marine Lantern IP68 For Harsh Sea Conditions

Core advantages

  1. The design is IALA-compliant, making it suitable for both floating and fixed AtoN installations.
  2. Advanced BMS is designed to ensure the efficient management of battery cycles, thereby maximising operational longevity.
  3. Compatible with external power sources, allowing for flexible deployment and energy stability.
  4. Fully sealed IP68 construction ensures reliable performance in submerged and high-salinity environments.
  5. Durable ABS+PC housing offers exceptional resilience against extreme weather conditions, including storms, UV exposure and saltwater corrosion.
  6. Optimised for remote, unmanned operation, with minimal maintenance needs.

Technical specification

Category Specification Details
Main features

 Operating Voltage DC 8V—32V, intelligent compatibility with DC 12V and 24V
Flash Mode

256 adjustable options

Brightness: Adjustable by percentage
Light Colore
 Red/Green/Yellow/White/Blue/Yellow-Blue
Illumination Distance
 5—11nm @ 0.74T
Daylight Threshold
 Digital light sensor, adjustable threshold
Waterproof Rating
IP68
Operating Temperature
-35°C to +65°C
Emission Angle
Fixed Light ≥2.5°
Horizontal Max Luminous Intensity

White: 2800cd/33.6W ｜ Red: 1955.9cd/19.8W

Yellow: 1186cd/22.9W ｜ Blue: 663cd/33.6W

Green: 1587cd/33.9W
LED Lifespan >100,000 hours
Light features
Lens Material
 Optical Acrylic
Lens Size 155mm
Shell Material Composite SMC (Fiberglass)
Charging Current ≤10A
Synchronous Flash Synchronous flashing function
Number of Layers One or two layers controllable
Parameter Setting
RS232, Button
Installation Size
Conforms to domestic and international standards
Weight ≤2.6KG
Product Size 240*240*267mm

Drawings

LED Navigation Buoy Lights Smart AtoN Marine Lantern IP68 For Harsh Sea Conditions

Application

  • Buoys
  • Beacons
  • Harbor Entrances
  • Offshore Platforms
  • Floating AtoN Installations
  • Fixed AtoN Installations
  • Marinas
  • Docks & Piers
  • Channel Markers

FAQ

1, Is the lantern suitable for fixed and floating AtoN?
Yes. IALA-compliant for both buoy and beacon installations.


2, How reliable is it in harsh marine conditions?
Fully sealed IP68 with ABS+PC housing—built for saltwater, storms, and UV.


3, Has this product been widely deployed?
Yes. Trusted by 70%+ of China’s maritime bureaus for AIS AtoN projects.


4, How is it powered?
Supports external power + built-in smart BMS for stable long-term use.


5, What are the shipping and delivery options?
DHL for small orders, sea freight for bulk. Delivery in 5–14 days depending on order type.
