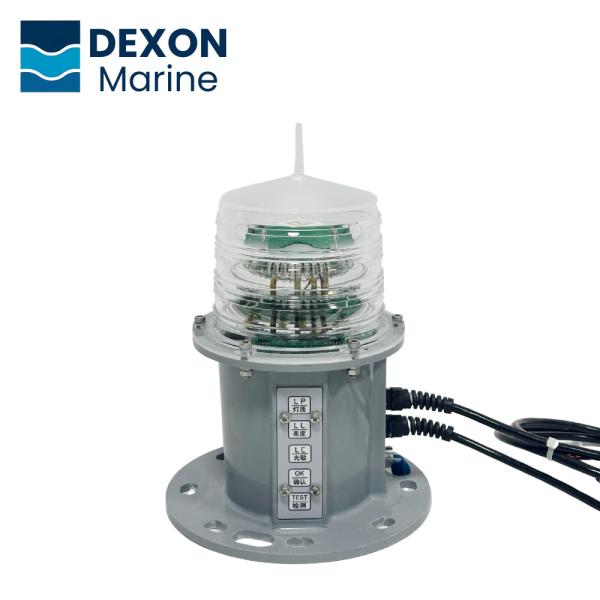

Low Power LED Marine Lanterns With SMC Shell AIS Ready 256 Level Intensity
Low Power LED Marine Lanterns With SMC Shell AIS Ready 256 Level Intensity
Low Power LED Marine Lanterns With SMC Shell AIS Ready 256 Level Intensity
Low Power LED Marine Lanterns With SMC Shell AIS Ready 256 Level Intensity
Low Power LED Marine Lanterns With SMC Shell AIS Ready 256 Level Intensity
Low Power LED Marine Lanterns With SMC Shell AIS Ready 256 Level Intensity
Specifications
Brand Name :
Dexon
Model Number :
DX-ML160
Certification :
CE, ISO9001, IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
USD 680～1000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Color :
Red/Green/White/Yellow/Blue
Light Source :
LED
Operating Temperature :
-35°C to +65°C
Visibility Range :
3-5 nautical miles
Lens Material :
Optical Acrylic
Protection Level :
IP68
Description
Low-power marine lantern with an SMC shell offers 256 levels of intensity

Buoys ｜Beacons ｜Harbor Entrances ｜Offshore Platforms ｜Marinas

The LED lantern has been designed for versatility and long-term use. It features a smart power system and is compatible with 8–32V DC input, making it ideal for use with external solar or backup power supplies. It performs reliably across a wide range of climates and remains operational in harsh marine conditions thanks to its IP68 waterproof rating. The unit offers flexible lighting modes, multiple flash configurations, and can be customized to suit different light colors and intensities, meeting IALA standards for a variety of navigational needs.

Low Power LED Marine Lanterns With SMC Shell AIS Ready 256 Level Intensity

Core advantages

  1. Equipped with a wide 8–32V DC input, making it compatible with solar and external power sources.
  2. IP68 waterproof protection ensures safe operation in harsh marine settings.
  3. Capable of supporting multiple flash patterns and offers adjustable light intensity levels.
  4. Customisable colour output and is compliant with IALA navigation standards.
  5. Designed for remote, long-term operation with minimal intervention.
  6. Smart power system has been developed to deliver consistent performance across all climates.

Technical specification

Category Specification Details
Main features
 Operating Voltage DC 8V—32V, intelligent compatibility with DC 12V and 24V
Flash Mode

256 adjustable options

Brightness: Adjustable by percentage
Light Colore
 Red/Green/Yellow/White/Blue/Yellow-Blue
Illumination Distance
 5—7.9nm @ 0.74T
Daylight Threshold
 Digital light sensor, adjustable threshold
Waterproof Rating
IP68
Operating Temperature
-35°C to +65°C
Emission Angle
Floating Light ≥8°
Horizontal Max Luminous Intensity

White: 464cd/6.6W ｜ Red: 196cd/5W

Yellow: 125.6cd/5.29W ｜ Blue: 126cd/6.3W
LED Lifespan >100,000 hours
Light features
Lens Material
 Optical Acrylic
Lens Size 155mm
Shell Material Composite SMC (Fiberglass)
Charging Current ≤10A
Synchronous Flash Synchronous flashing function
Number of Layers One or two layers controllable
Parameter Setting
RS232, Button
Installation Size
Conforms to domestic and international standards
Weight ≤2.6KG
Product Size 240*240*342mm

Drawings

Low Power LED Marine Lanterns With SMC Shell AIS Ready 256 Level Intensity

Application

  • Buoys
  • Beacons
  • Harbor Entrances
  • Offshore Platforms
  • Floating AtoN Installations
  • Marinas
  • Docks & Piers
  • Channel Markers

FAQ

1, What power input does it support?
Wide 8–32V DC input — ideal for solar and external systems.

2, Is it waterproof?
Yes. IP68-rated for safe use in tough marine environments.

3, Can I adjust the light settings?
Supports 256 flash patterns and light intensity levels.

4, Are color options available?
Yes. IALA-compliant red, green, white, yellow, or blue.

5, Is it good for long-term unmanned use?
Built for remote, low-maintenance AtoN deployments.

6, How does it perform in extreme weather?
Smart power system ensures stable output in any climate.
