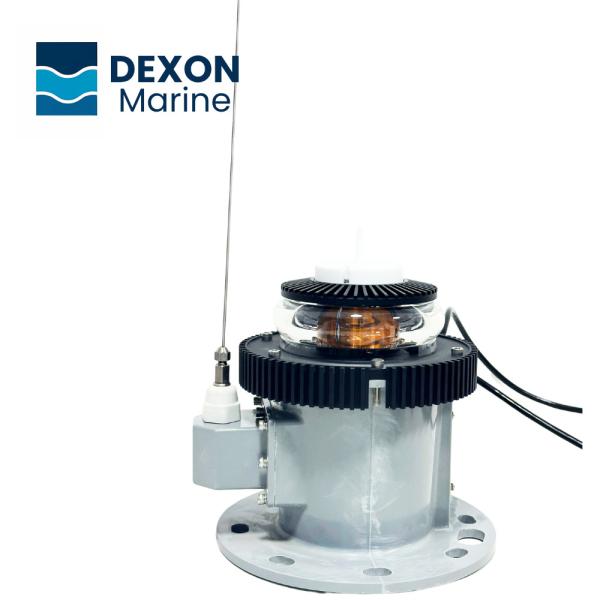

IP68 6.6W LED Marine Lanterns LED Boat Running Light support external AIS Option
IP68 6.6W LED Marine Lanterns LED Boat Running Light support external AIS Option
IP68 6.6W LED Marine Lanterns LED Boat Running Light support external AIS Option
IP68 6.6W LED Marine Lanterns LED Boat Running Light support external AIS Option
Specifications
Brand Name :
Dexon
Model Number :
DX-ML160
Certification :
CE, ISO9001, IALA
Place of Origin :
Chengdu
MOQ :
1
Price :
USD 680～1000
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram,L/C
Supply Ability :
10000/month
Delivery Time :
3～10 days
Packaging Details :
cartons/pallets
Color :
Red/Green/Yellow/White/Blue/Yellow-Blue
Light Source :
LED
Lens Material :
Acrylic
Operating Temperature :
-35°C to +65°C
Waterproof Rating :
IP68
Lens Size :
155mm
Description
This LED marine lantern is highly efficient, with a power consumption of just 6.6W and a white light intensity of 464 candelas. The antenna is high-gain omnidirectional VHF and supports all three AIS modes — SOTDMA, FATDMA and RATDMA, ensuring full global compatibility. The product is equipped with a smart BMS and has a wide 8–32V DC input range, making it ideal for autonomous, low-maintenance deployment.

IP68 6.6W LED Marine Lanterns LED Boat Running Light support external AIS Option

Core advantages

  1. High-gain VHF antenna ensures a strong AIS signal in any direction, making it a reliable choice for professional use.
  2. Compatible with all AIS protocols: SOTDMA, FATDMA, RATDMA.
  3. Intelligent BMS is equipped with an 8–32V DC input, making it ideally suited for autonomous marine operations.
  4. Fully optimised for low-maintenance deployment on unmanned buoys.
  5. Global AIS coverage and compact efficiency make it an ideal solution for modern AtoN.

Technical specification

Category Specification Details
Main features

 Operating Voltage DC 8V—32V, intelligent compatibility with DC 12V and 24V
Flash Mode

256 adjustable options

Brightness: Adjustable by percentage
Light Color
 Red/Green/Yellow/White/Blue/Yellow-Blue
Illumination Distance
 5—11nm @ 0.74T
Daylight Threshold
 Digital light sensor, adjustable threshold
Waterproof Rating
IP68
Operating Temperature
-35°C to +65°C
Emission Angle
Fixed Light ≥2.5°
Horizontal Max Luminous Intensity


White: 2800cd/33.6W ｜ Red: 1955.9cd/19.8W

Yellow: 1186cd/22.9W ｜ Blue: 663cd/33.6W

Green: 1587cd/33.9W
LED Lifespan >100,000 hours
Light features
Lens Material
 Optical Acrylic
Lens Size 155mm
Shell Material Composite SMC (Fiberglass)
Charging Current ≤10A
Synchronous Flash Synchronous flashing function
Number of Layers One or two layers controllable
Parameter Setting
RS232, Button
Installation Size
Conforms to domestic and international standards
Weight ≤2.6KG
Product Size 240*240*267mm

Drawings

IP68 6.6W LED Marine Lanterns LED Boat Running Light support external AIS Option

Application

  • Buoys
  • Beacons
  • Harbor Entrances
  • Offshore Platforms
  • Floating AtoN Installations
  • Fixed AtoN Installations
  • Marinas
  • Docks & Piers
  • Channel Markers

FAQ

1, What kind of AIS support is included?
Compatible with SOTDMA, FATDMA, and RATDMA protocols.

2, How strong is the AIS signal?
Equipped with a high-gain VHF antenna for 360° coverage.

3, Is it suitable for unmanned deployments?
Yes. Optimized for autonomous AtoN with intelligent BMS (8–32V DC).

4, What’s the size and delivery time?
Weight 2.6 kg, product size is 240×240×267 mm. Ships in 3–10 days.

5, Is it usable for global AIS coverage?
Yes. Compact and protocol-compatible for worldwide marine systems.
