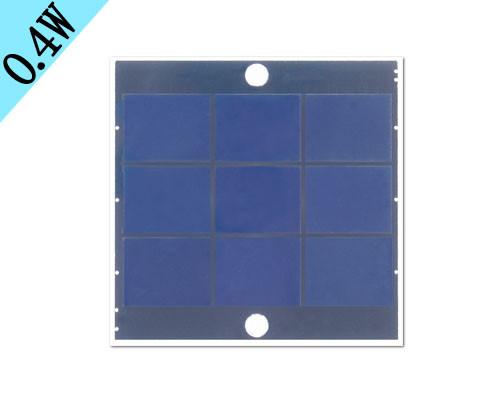

Glossy PET Sunpower Solar Panels , High Efficiency Solar Cells For Reading Lighting
Glossy PET Sunpower Solar Panels , High Efficiency Solar Cells For Reading Lighting
Glossy PET Sunpower Solar Panels , High Efficiency Solar Cells For Reading Lighting
Glossy PET Sunpower Solar Panels , High Efficiency Solar Cells For Reading Lighting
Specifications
Brand Name :
Desun
Model Number :
DS-5555
Certification :
ISO9001, CE,FCC
Place of Origin :
China
MOQ :
10000pcs
Price :
USD 0.5-0.8 unit
Supply Ability :
20000pcs per day
Delivery Time :
15-20 days
Packaging Details :
Neutral box
Cell :
Sunpower
Size :
55*55*2.4mm
Power :
0.4W
Vmp :
4.95V
Imp :
80mA
Voc :
5.9V
Isc :
85mA
Surface :
Glossy PET
Technology :
Punch
PCB :
Single-sided with rivets
Description

5555 reading lighting glossy PET sunpower solar panel factory

1. Details Description:

Our solar panels adopt high-efficiency SunPower cell which ranking in the top of the solar cell makers. The unique all-back-contact cell technology makes the SunPower cell are more efficient because they use available sunlight that others waste. It maximizes the use of available sunlight by exposing the entire front surface of the cell to the sun. Besides, their special structure and manufacturing process such as an anti-reflective coating to the front surface of the cells also make it capture more of the sun’s light.


Glossy PET Sunpower Solar Panels , High Efficiency Solar Cells For Reading Lighting

　2. Features of our Monocrystalline 100W solar panel

The Sunpower cell has the features such as Maximum light capture, Reduced resistive losses, Minimum recombination loss, and improved material absorption. All these characteristic make it has a high efficiency of 21% to 24%.

Dimension(MM) Power(W) Operating Voltage(V) Operating Current(MA) Open-circuit Voltage(V) Short-circuit Current(MA)
148*65*1.6 1.4 5.0 280 6.5 290
150*40*0.8 0.6 5.5 105 6.4 110
150*76*2.4 1.5 5.5 272 6.4 285
150*135*3 2.6 6.0 430 7.1 450
43*36*1.3 0.22 2.2 100 2.5 105
60*59*1.6 0.45 5.5 81 6.4 85
73*35*2.0 0.3 2.75 110 3.2 115
75*51*1.6 0.4 5.5 72 6.4 76
142*80*1.6 1.73 4.95 350 5.5 365
143*81*2.0 1.5 5.5 274 6.4 290

3. Widely Applications of our solar panel:

　Our Sunpower Solar Panel can reach to around 21% to 24% efficiency. And PET / ETFE lamination available, we can make it a flexible design or fixed design base on your need and different applicaions. This kind of solar panel can be widely used for different places such as solar mobile phone, bluetooth headsets, GPS, wearable devices, IOT, active FRID, solar lamp,boats, cars, caravans, bus, RV etc.

Solar Panel Application:


Glossy PET Sunpower Solar Panels , High Efficiency Solar Cells For Reading LightingGlossy PET Sunpower Solar Panels , High Efficiency Solar Cells For Reading Lighting
Glossy PET Sunpower Solar Panels , High Efficiency Solar Cells For Reading LightingGlossy PET Sunpower Solar Panels , High Efficiency Solar Cells For Reading Lighting
