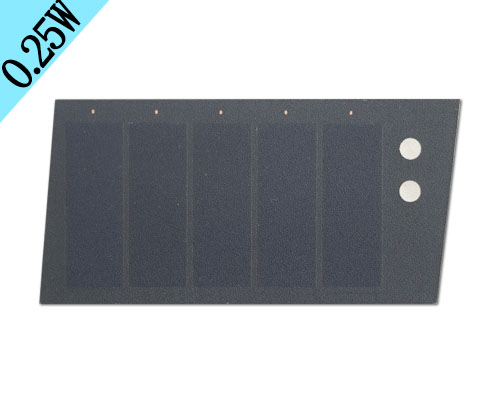

Small Scale Sunpower Solar Panels Outdoor Motion Sensor Lighting Size 73*35*1.6mm
Small Scale Sunpower Solar Panels Outdoor Motion Sensor Lighting Size 73*35*1.6mm
Specifications
Brand Name :
Desun
Model Number :
DS-7335
Certification :
ISO9001, CE,FCC
Place of Origin :
China
MOQ :
10000pcs
Price :
USD 0.6-1.0 Unit
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
20000pcs per day
Delivery Time :
15-20days
Packaging Details :
Neutral box can custom
Cell :
Sunpower
Size :
73*35*1.6mm
Power :
0.25W
Vmp :
2.75V
Imp :
90mA
Voc :
3.3V
Isc :
95mA
Surface :
Matte PET
Technology :
Laser machine
PCB :
Single-sided with rivets
Description

Outdoor motion sensor lighting small scale sunpower solar panel

1. Details Description:

Our solar panels adopt high-efficiency SunPower cell which ranking in the top of the solar cell makers. The unique all-back-contact cell technology makes the SunPower cell are more efficient because they use available sunlight that others waste. It maximizes the use of available sunlight by exposing the entire front surface of the cell to the sun. Besides, their special structure and manufacturing process such as an anti-reflective coating to the front surface of the cells also make it capture more of the sun’s light.

Small Scale Sunpower Solar Panels Outdoor Motion Sensor Lighting Size 73*35*1.6mm

2. Features of our Monocrystalline 100W solar panel

The Sunpower cell has the features such as Maximum light capture, Reduced resistive losses, Minimum recombination loss, and improved material absorption. All these characteristic make it has a high efficiency of 21% to 24%.

Dimension(MM) Power(W) Operating Voltage(V) Operating Current(MA) Open-circuit Voltage(V) Short-circuit Current(MA)
148*65*1.6 1.4 5.0 280 6.5 290
150*40*0.8 0.6 5.5 105 6.4 110
150*76*2.4 1.5 5.5 272 6.4 285
150*135*3.0 2.6 6.0 430 7.1 450
170*170*2.0 3.0 5.5 540 6.4 560
175*166*3.3 4.0 5.0 800 6.5 820
180*115*3.0 3.0 6.0 500 7.1 525
183*65*2.0 1.0 5.5 174 6.5 185
221*182*3.0 5.4 5.5 980 6.5 1000
235*135*2.4 4.0 5.0 800 6.5 820

3. Widely Applications of our solar panel:

　Our Sunpower Solar Panel can reach to around 21% to 24% efficiency. And PET / ETFE lamination available, we can make it a flexible design or fixed design base on your need and different applicaions. This kind of solar panel can be widely used for different places such as solar mobile phone, bluetooth headsets, GPS, wearable devices, IOT, active FRID, solar lamp,boats, cars, caravans, bus, RV etc.

Small Scale Sunpower Solar Panels Outdoor Motion Sensor Lighting Size 73*35*1.6mm
