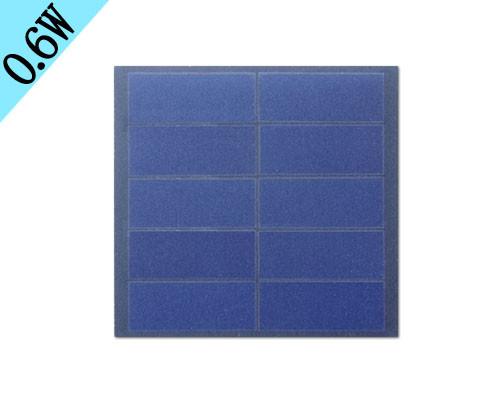

DIY Small Size Sunpower High Efficiency Solar Panels 60*60mm High Efficiency 21%
DIY Small Size Sunpower High Efficiency Solar Panels 60*60mm High Efficiency 21%
Specifications
Brand Name :
Desun
Model Number :
DS-6060
Certification :
ISO9001,CE,FCC
Place of Origin :
China
MOQ :
10000pcs
Price :
USD 1.08-1.2
Supply Ability :
20000 pcs Per day
Delivery Time :
15-20 days
Packaging Details :
Neutral box can customize
Cell :
sunpower
Size :
60*60*2.0mm
Power :
0.6W
Vmp :
4.4V
Imp: :
135mA
Voc :
5.3V
Isc :
145mA
Surface :
Matte PET
Technology :
By hand
PCB :
Double-sided
Description

　DIY small size 60*60mm high efficiency 21% sunpower solar panel supplier

1. Details Description:

Our solar panels adopt high-efficiency SunPower cell which ranking in the top of the solar cell makers. The unique all-back-contact cell technology makes the SunPower cell are more efficient because they use available sunlight that others waste. It maximizes the use of available sunlight by exposing the entire front surface of the cell to the sun. Besides, their special structure and manufacturing process such as an anti-reflective coating to the front surface of the cells also make it capture more of the sun’s light.

DIY Small Size Sunpower High Efficiency Solar Panels 60*60mm High Efficiency 21%

　　2. Features of our Monocrystalline 100W solar panel

The Sunpower cell has the features such as Maximum light capture, Reduced resistive losses, Minimum recombination loss, and improved material absorption. All these characteristic make it has a high efficiency of 21% to 24%.

Dimension(MM) Power(W) Operating Voltage(V) Operating Current(MA) Open-circuit Voltage(V) Short-circuit Current(MA)
142*80*1.6 1.73 4.95 350 5.5 365
143*81*2.0 1.5 5.5 274 6.4 290
133*81*2.7 0.9 6.6 136 7.9 145
134*65*2.4 1.3 5.0 256 6.5 268
138*67*1.6 1.0 3.3 312 4.0 320
60*59*1.6 0.45 5.5 81 6.4 85
73*35*2.0 0.3 2.75 110 3.2 115
75*51*1.6 0.4 5.5 72 6.4 76
142*80*1.6 1.73 4.95 350 5.5 365
143*81*2.0 1.5 5.5 274 6.4 290

　3. Widely Applications of our solar panel:

　Our Sunpower Solar Panel can reach to around 21% to 24% efficiency. And PET / ETFE lamination available, we can make it a flexible design or fixed design base on your need and different applicaions. This kind of solar panel can be widely used for different places such as solar mobile phone, bluetooth headsets, GPS, wearable devices, IOT, active FRID, solar lamp,boats, cars, caravans, bus, RV etc.



DIY Small Size Sunpower High Efficiency Solar Panels 60*60mm High Efficiency 21%DIY Small Size Sunpower High Efficiency Solar Panels 60*60mm High Efficiency 21%
DIY Small Size Sunpower High Efficiency Solar Panels 60*60mm High Efficiency 21%DIY Small Size Sunpower High Efficiency Solar Panels 60*60mm High Efficiency 21%
