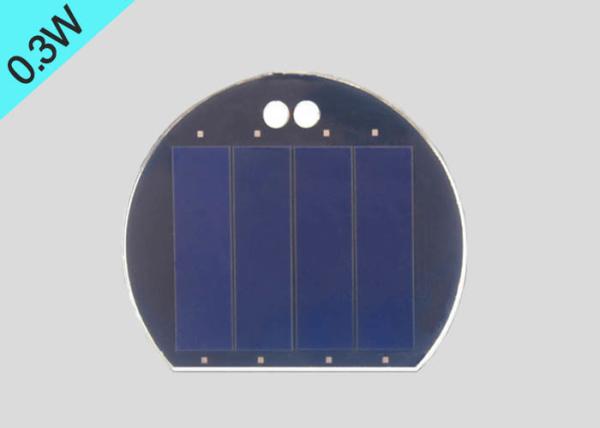

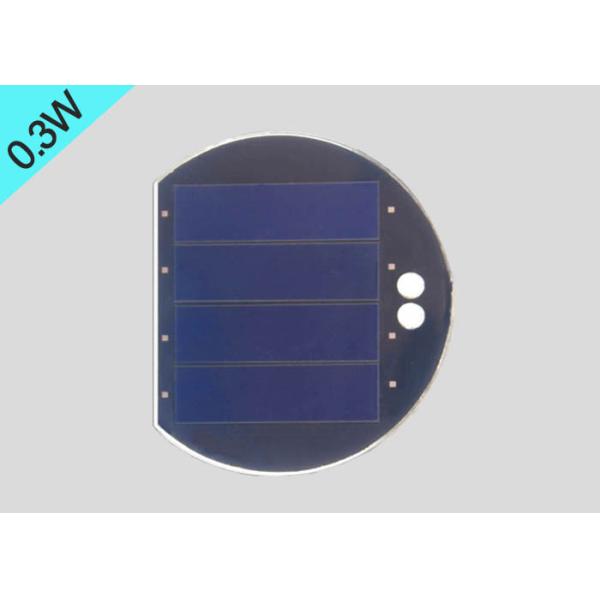

Desun Irregular Small Flexible Solar Panels , Glossy PET Solar Panel 0.3W
Desun Irregular Small Flexible Solar Panels , Glossy PET Solar Panel 0.3W
Specifications
Brand Name :
Desun
Model Number :
DS-5548
Certification :
ISO9001,CE,FCC
Place of Origin :
China
MOQ :
10000pcs
Price :
USD 0.5-0.8 unit
Supply Ability :
20000pcs per day
Delivery Time :
15-20 days
Packaging Details :
Neutral box can customize
Cell :
Sunpower
Size :
55*48*2.0mm
Power :
0.3W
Vmp :
2.2V
Imp: :
135mA
Voc :
2.65V
Isc :
145mA
Surface :
Glossy PET
Technology :
Punch
PCB :
Single-sided with rivets
Description

Desun irregular small power glossy PET sunpower solar panel manufacturer

1. Details Description:

Our solar panels adopt high-efficiency SunPower cell which ranking in the top of the solar cell makers. The unique all-back-contact cell technology makes the SunPower cell are more efficient because they use available sunlight that others waste. It maximizes the use of available sunlight by exposing the entire front surface of the cell to the sun. Besides, their special structure and manufacturing process such as an anti-reflective coating to the front surface of the cells also make it capture more of the sun’s light.

Desun Irregular Small Flexible Solar Panels , Glossy PET Solar Panel 0.3W

2. Features of our Monocrystalline 100W solar panel

We can provide different sizes and shapes solar panel base on different projects. The customized service is one of our biggest advantages.

The Sunpower cell has features such as Maximum light capture, Reduced resistive losses, Minimum recombination loss, and improved material absorption. All these characteristic make it has high efficiency of 21% to 24%.

Dimension(MM) Power(W) Operating Voltage(V) Operating Current(MA) Open-circuit Voltage(V) Short-circuit Current(MA)
148*65*1.6 1.4 5.0 280 6.5 290
150*40*0.8 0.6 5.5 105 6.4 110
150*76*2.4 1.5 5.5 272 6.4 285
150*135*3 2.6 6.0 430 7.1 450
43*36*1.3 0.22 2.2 100 2.5 105
60*59*1.6 0.45 5.5 81 6.4 85
73*35*2.0 0.3 2.75 110 3.2 115
75*51*1.6 0.4 5.5 72 6.4 76
142*80*1.6 1.73 4.95 350 5.5 365
143*81*2.0 1.5 5.5 274 6.4 290

3. Widely Applications of our solar panel:

Our Sunpower Solar Panel can reach to around 21% to 24% efficiency. And PET / ETFE lamination available, we can make it a flexible design or fixed design base on your need and different applications. This kind of solar panel can be widely used for different places such as solar mobile phone, Bluetooth headsets, GPS, wearable devices, IOT, active FRID, solar lamp, boats, cars, caravans, bus, RV etc.

Desun Irregular Small Flexible Solar Panels , Glossy PET Solar Panel 0.3W
