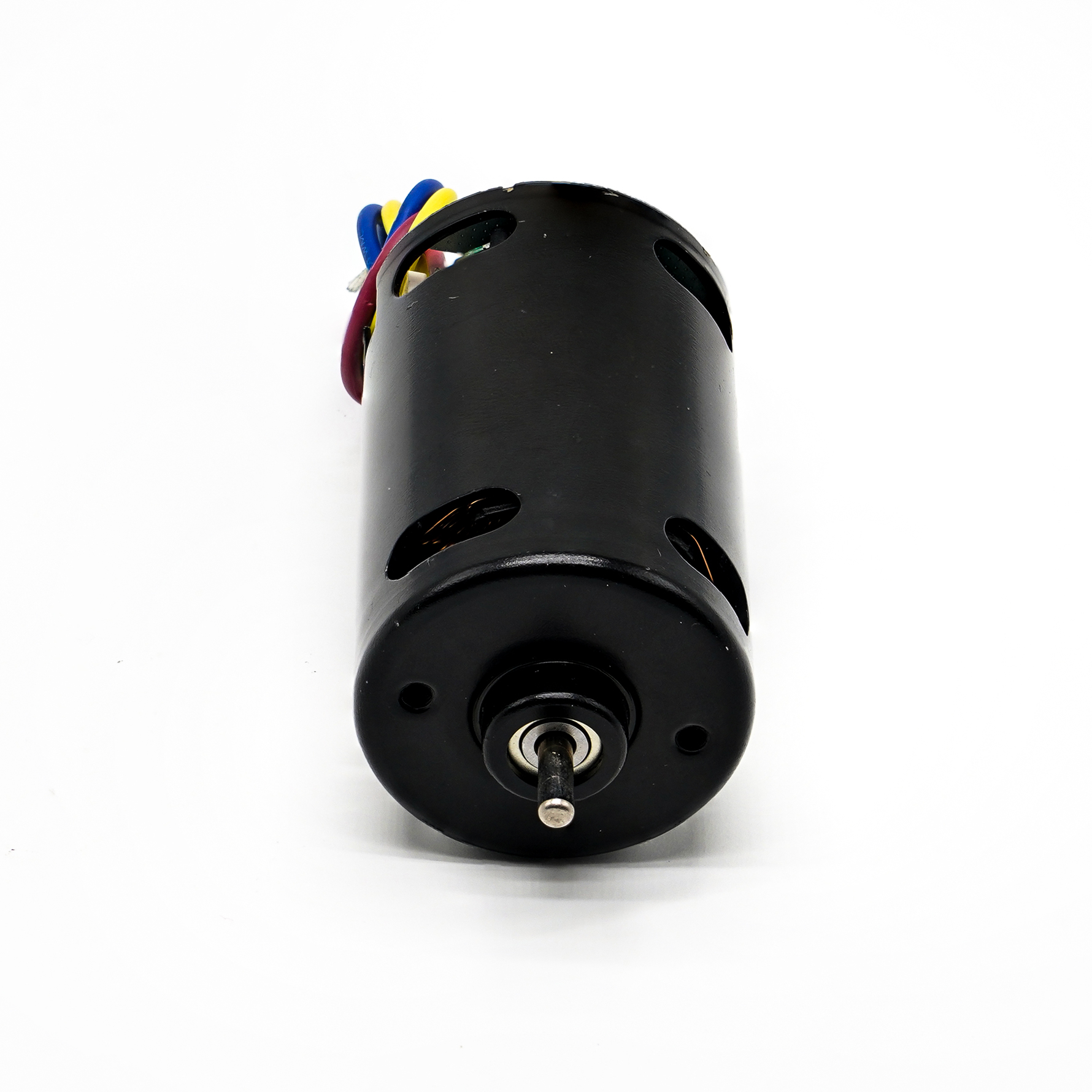

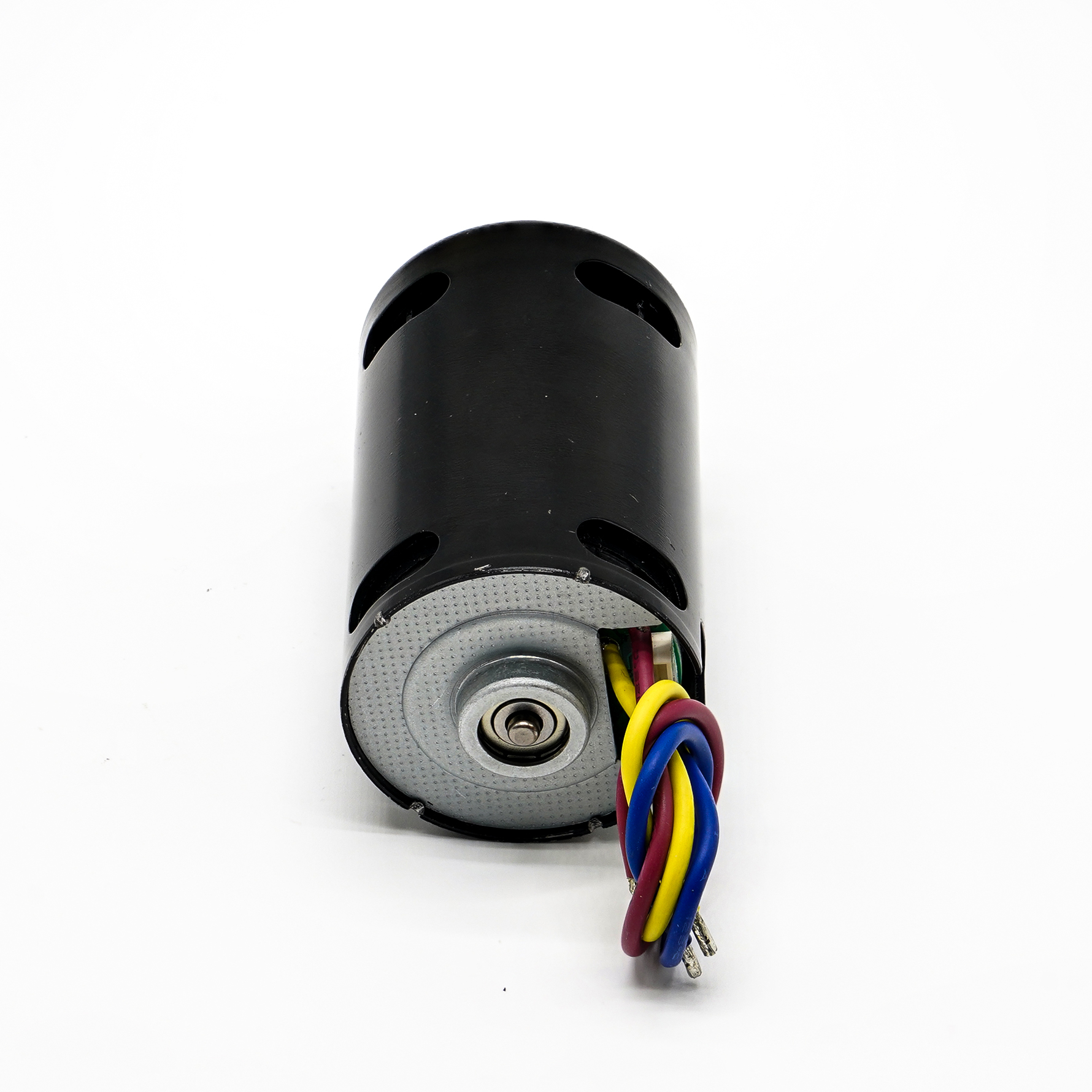

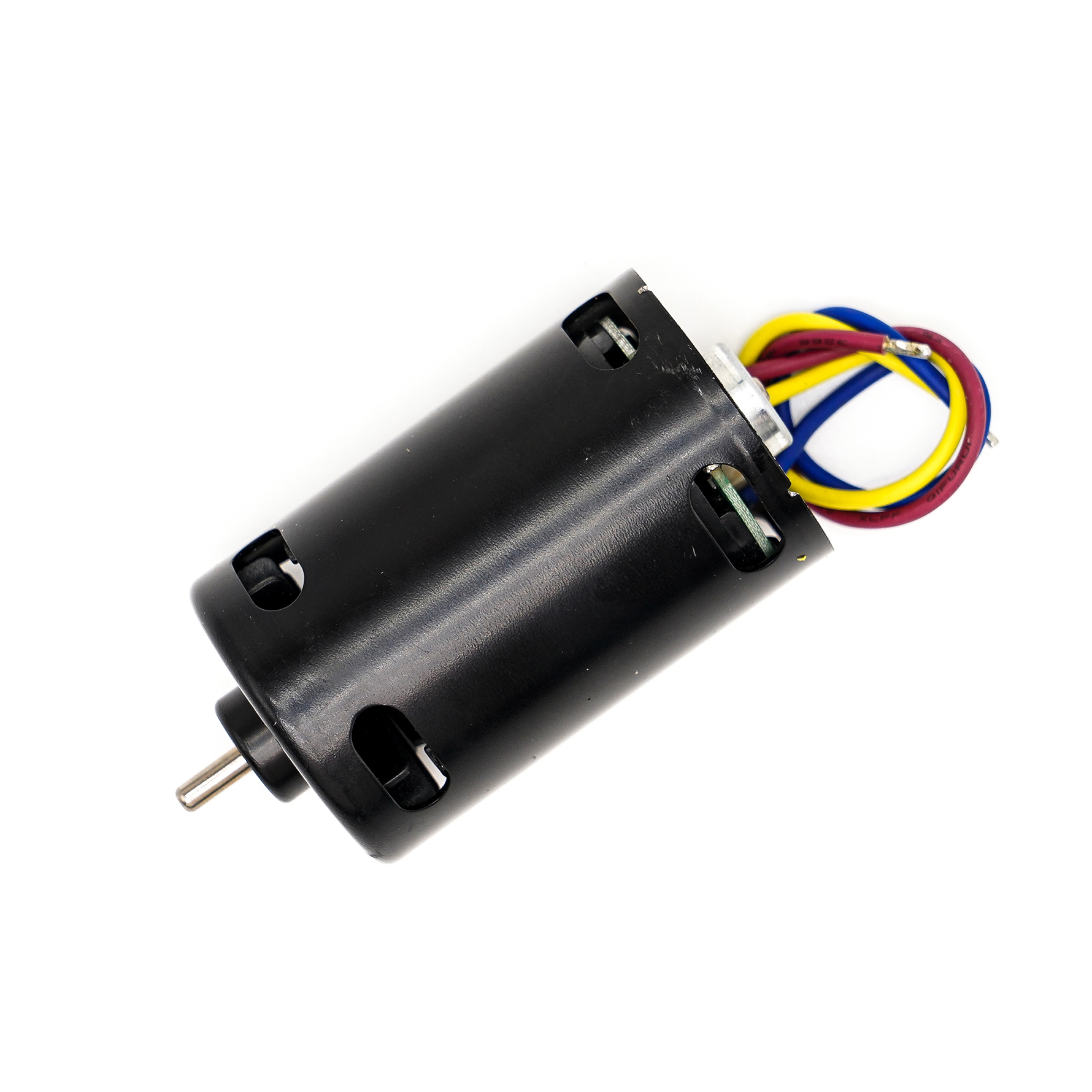

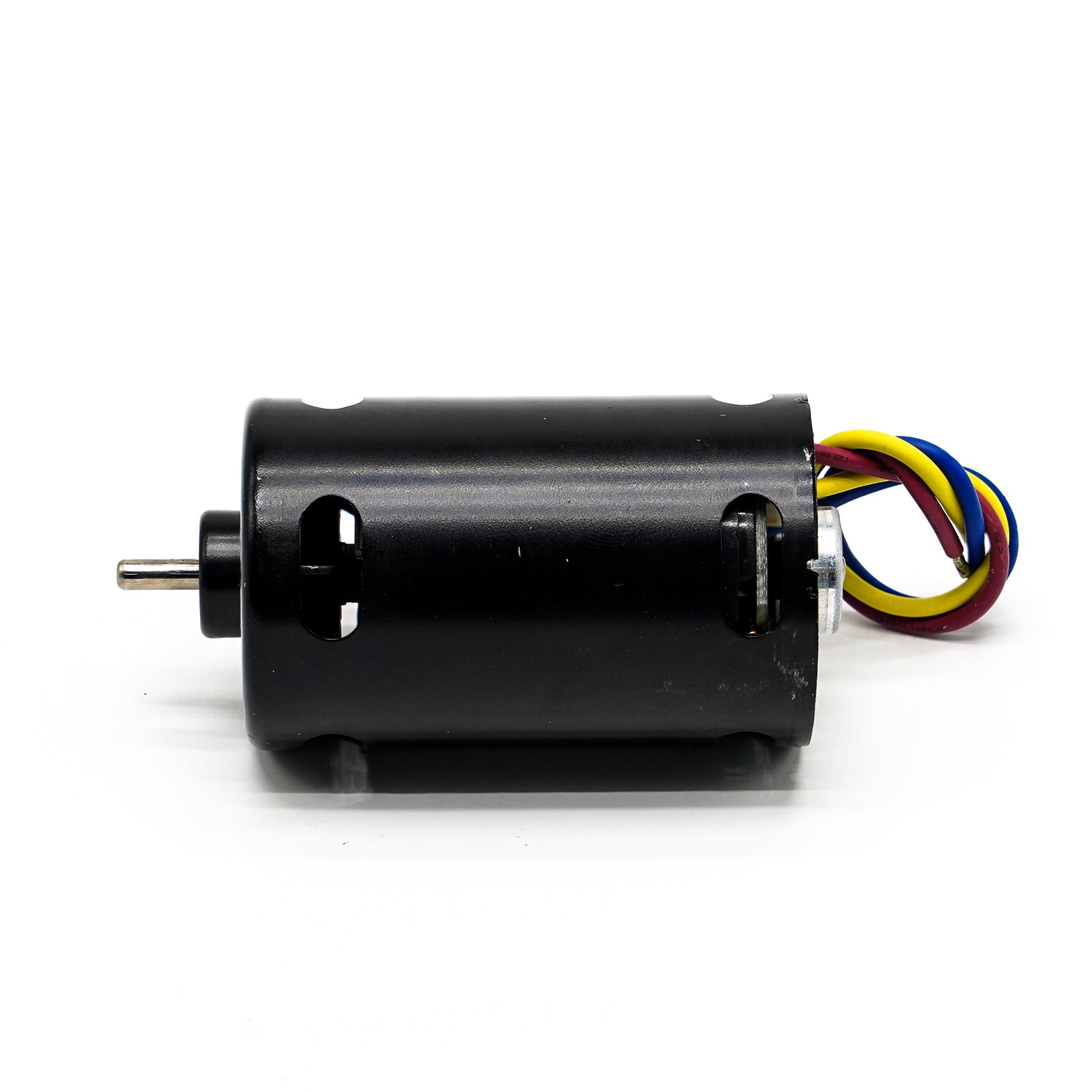

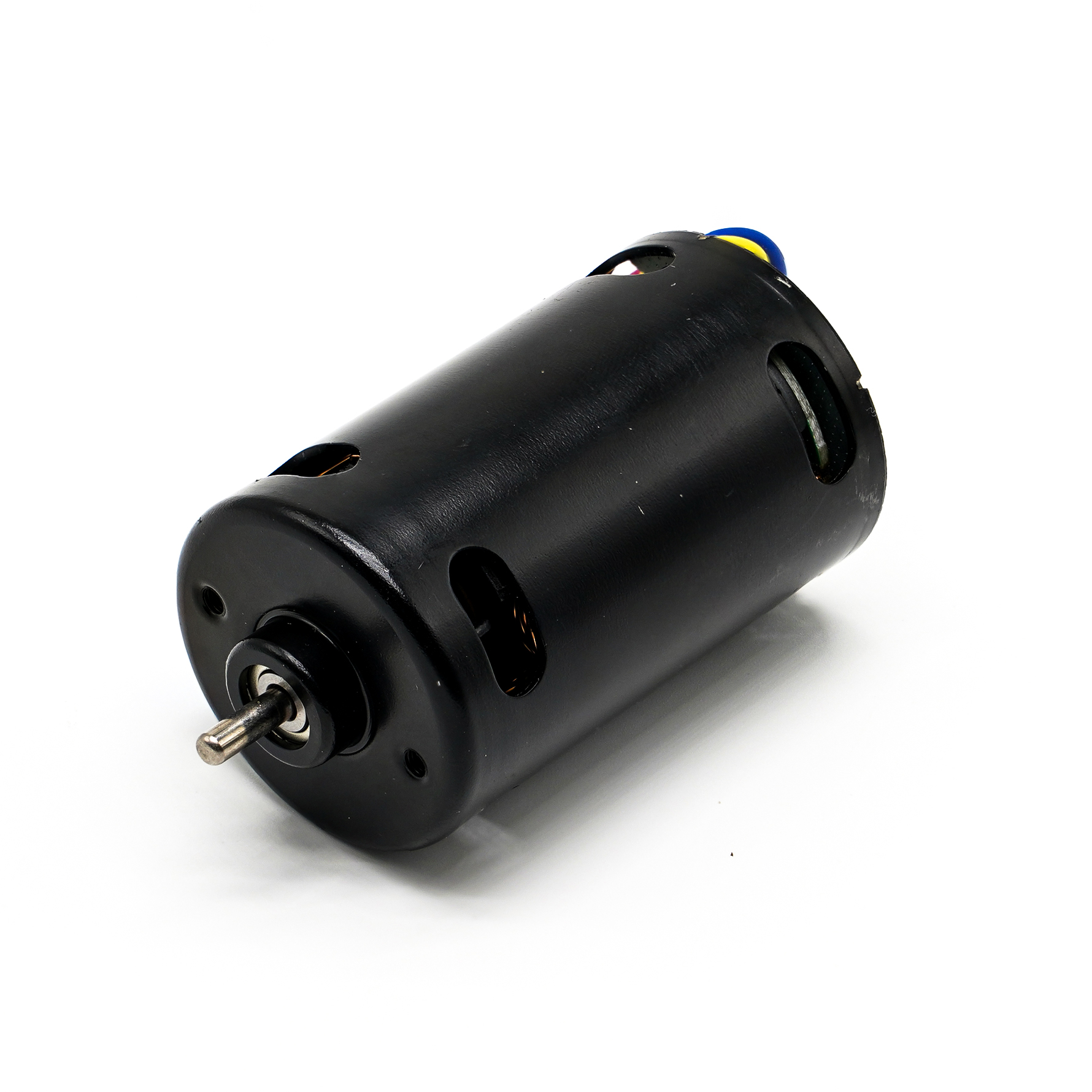

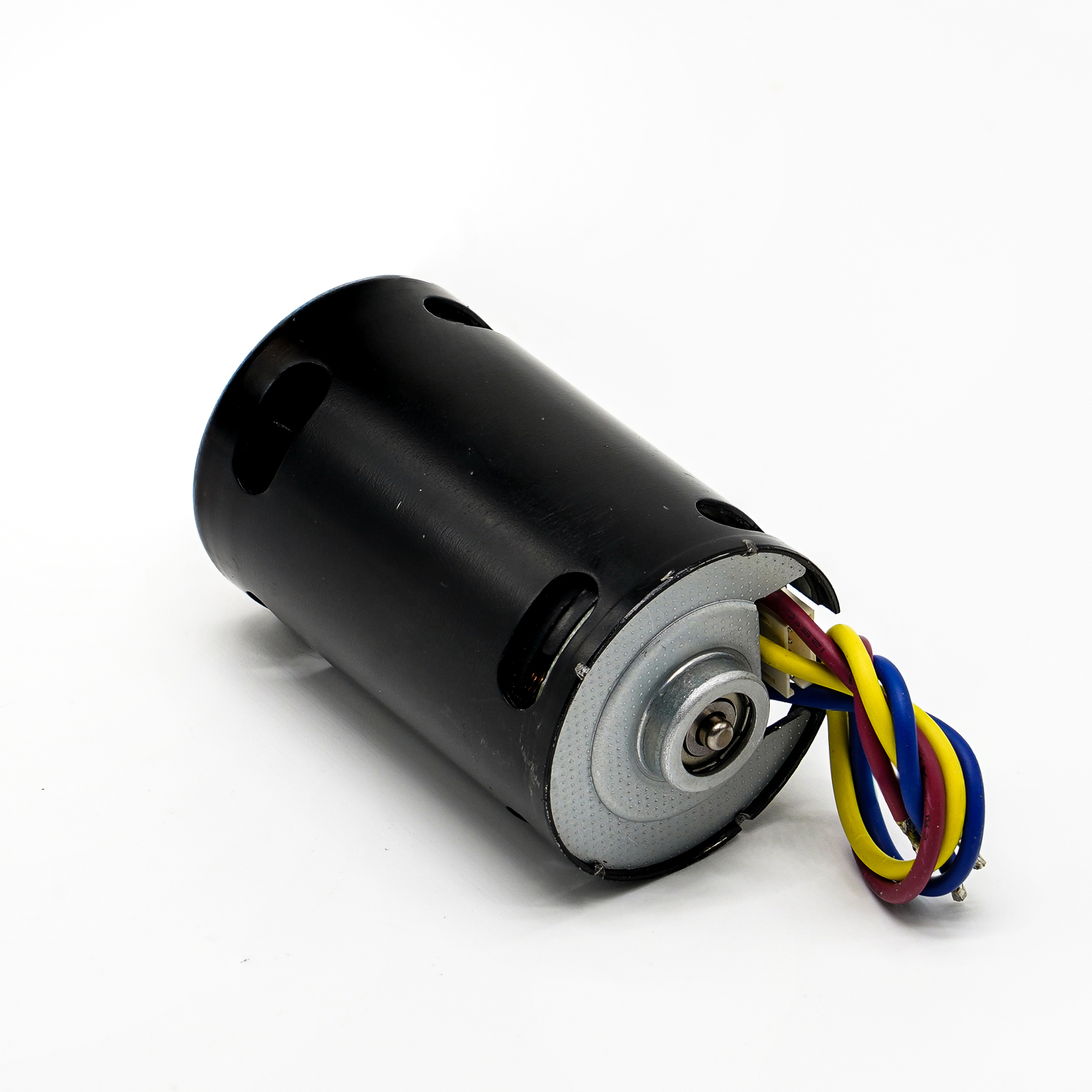

B3657 Brushless dc motor with driver
B3657 Brushless dc motor with driver
B3657 Brushless dc motor with driver
B3657 Brushless dc motor with driver
B3657 Brushless dc motor with driver
B3657 Brushless dc motor with driver
B3657 Brushless dc motor with driver
B3657 Brushless dc motor with driver
B3657 Brushless dc motor with driver
B3657 Brushless dc motor with driver
B3657 Brushless dc motor with driver
B3657 Brushless dc motor with driver
Specifications
MOQ :
2000
Delivery Time :
45days
RATED TORQUE :
38.4mNm
Certification :
CE, RoHS
Model Number :
DH-B3657-03
STALL TORQUE :
240.3mNm
Brand Name :
DEHE MOTOR
STALL CURRENT :
8.34A
Payment Terms :
T/T
NO LOAD SPEED :
8610RPM±10%
RATED CURRENT :
1.6A
Price :
10€
NO LOAD CURRENT :
0.4A MAX
Supply Ability :
50000PCS/months
RATED VOLT :
24VDC
RATED SPEED :
7230RPM±10%
MOTOR TYPE :
Brushless dc motor
Place of Origin :
CHINA
DRIVER :
Can be customized
Packaging Details :
Cartoon Box
Description
Features:
  • inner rotor BLDC motor
  • Ball bearing
  • High efficiency
  • Long life
  • Low noise
Application:
  • Violent fan
  • Power Tools
  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation
  • automatic soldering machine

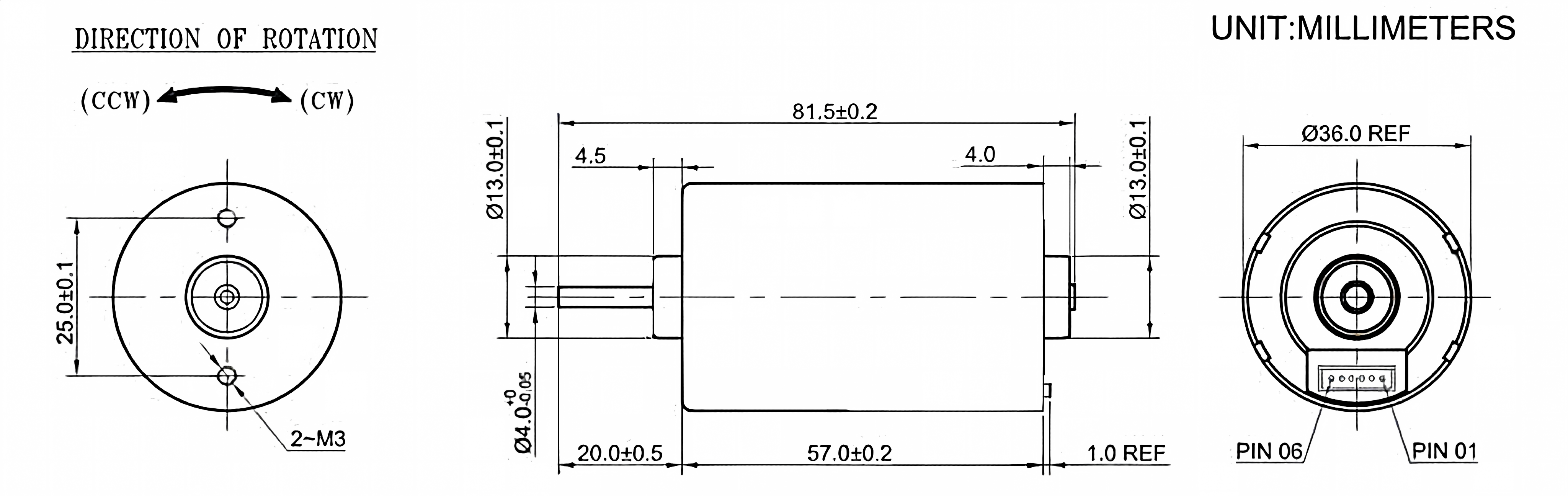

Dimensions:

B3657 Brushless dc motor with driver

MOTOR DATA:
MODEL VOLTAGE NO LOADAT MAXIMUM EFFICIENCYSTALL
OPERATING
RANGE		RATEDSPEEDCURRENTSPEEDCURRENTTORQUEOUTPUTTORQUECURRENT
r/minAr/minAg.cmW g.cmA
DH-B3657-018V~16V12V4154 0.19 3448 0.904 196.9 6.963 1158.3 4.405
DH-B3657-028V~26V18V6382 0.22 5425 1.174 267.0 14.85 1779.7 6.604
DH-B3657-038V~26V24V8610 0.28 7230 1.572 384.6 28.53 2403.9 8.342
NOTES:
  • Customizable output shaft dimensions.
  • Motor voltage can be 12V, 24V,36V,44V or else, while motor speed and torque can be adjusted.
  • Can be customized driver
