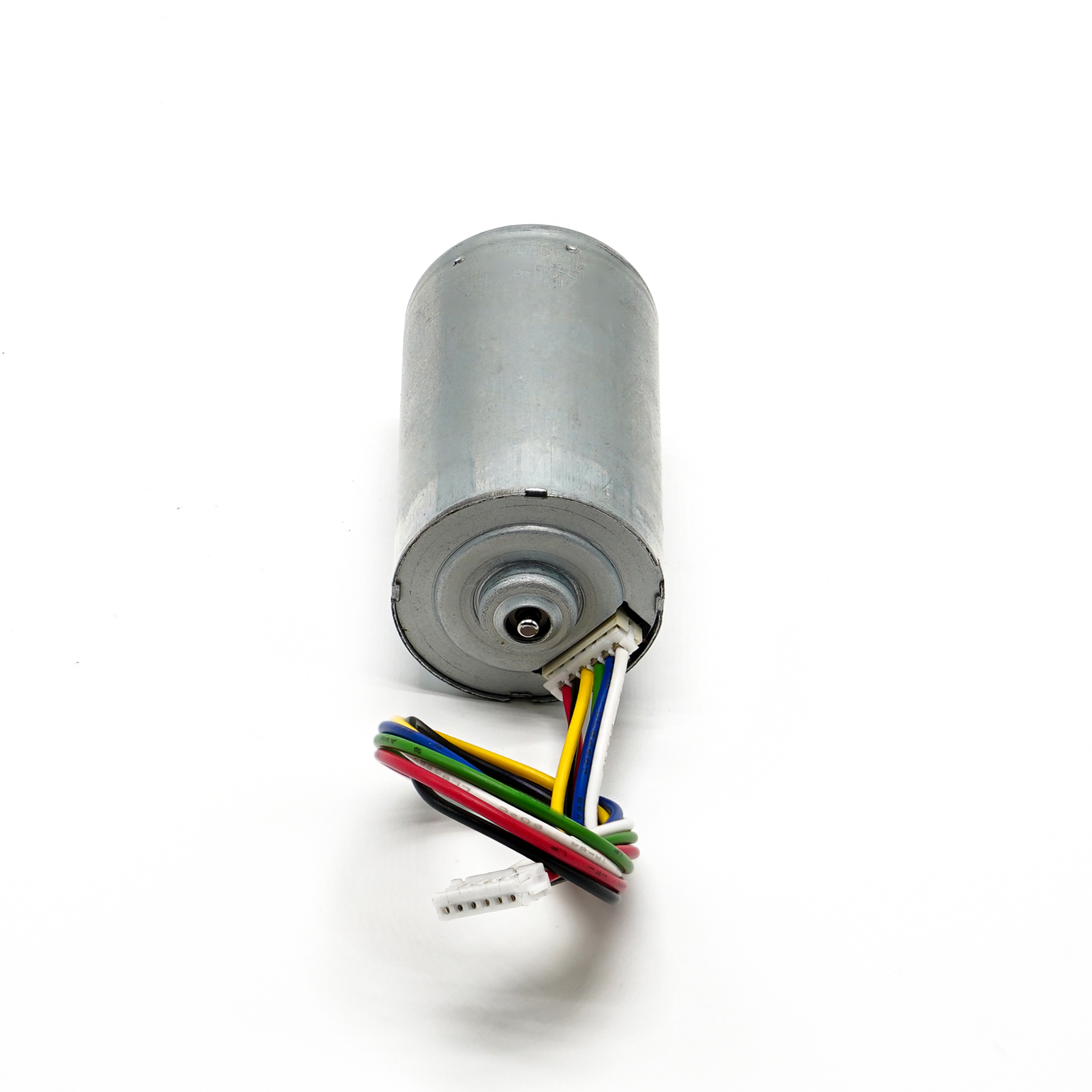

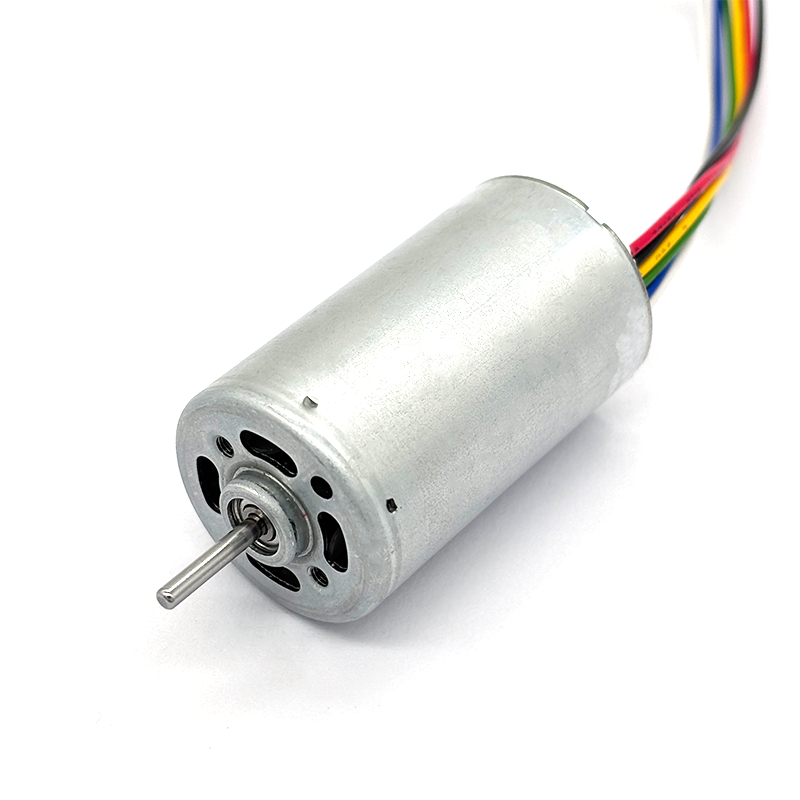

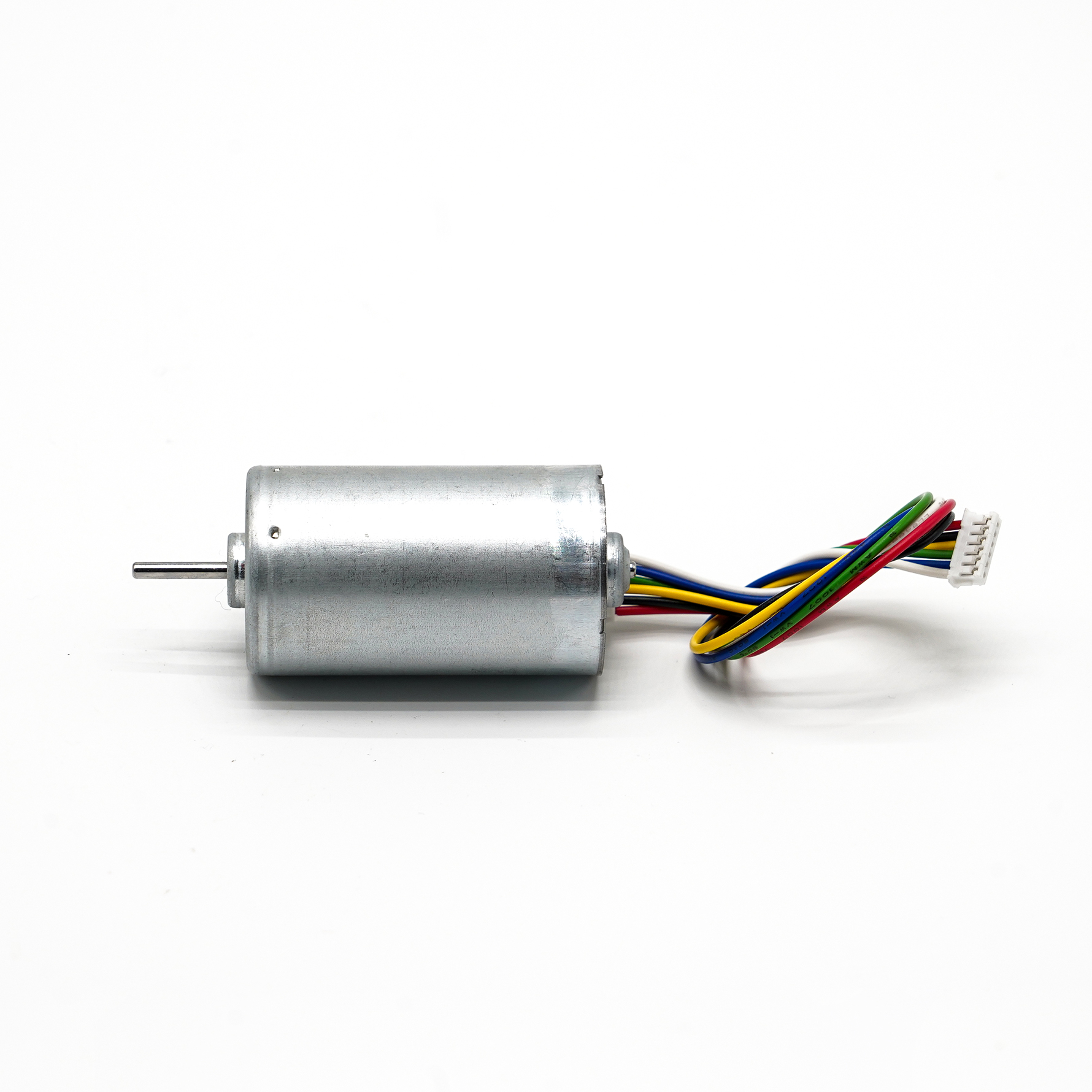

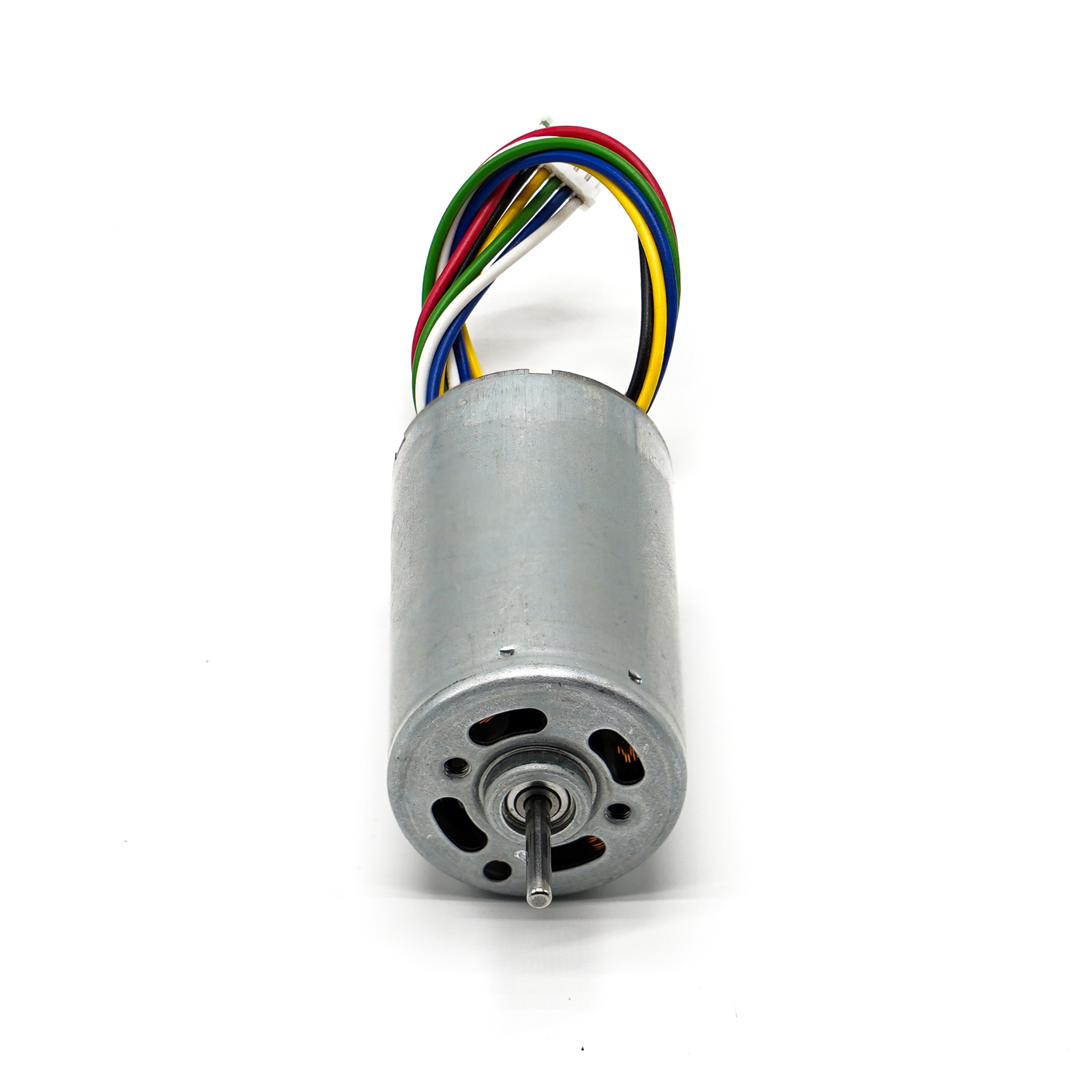

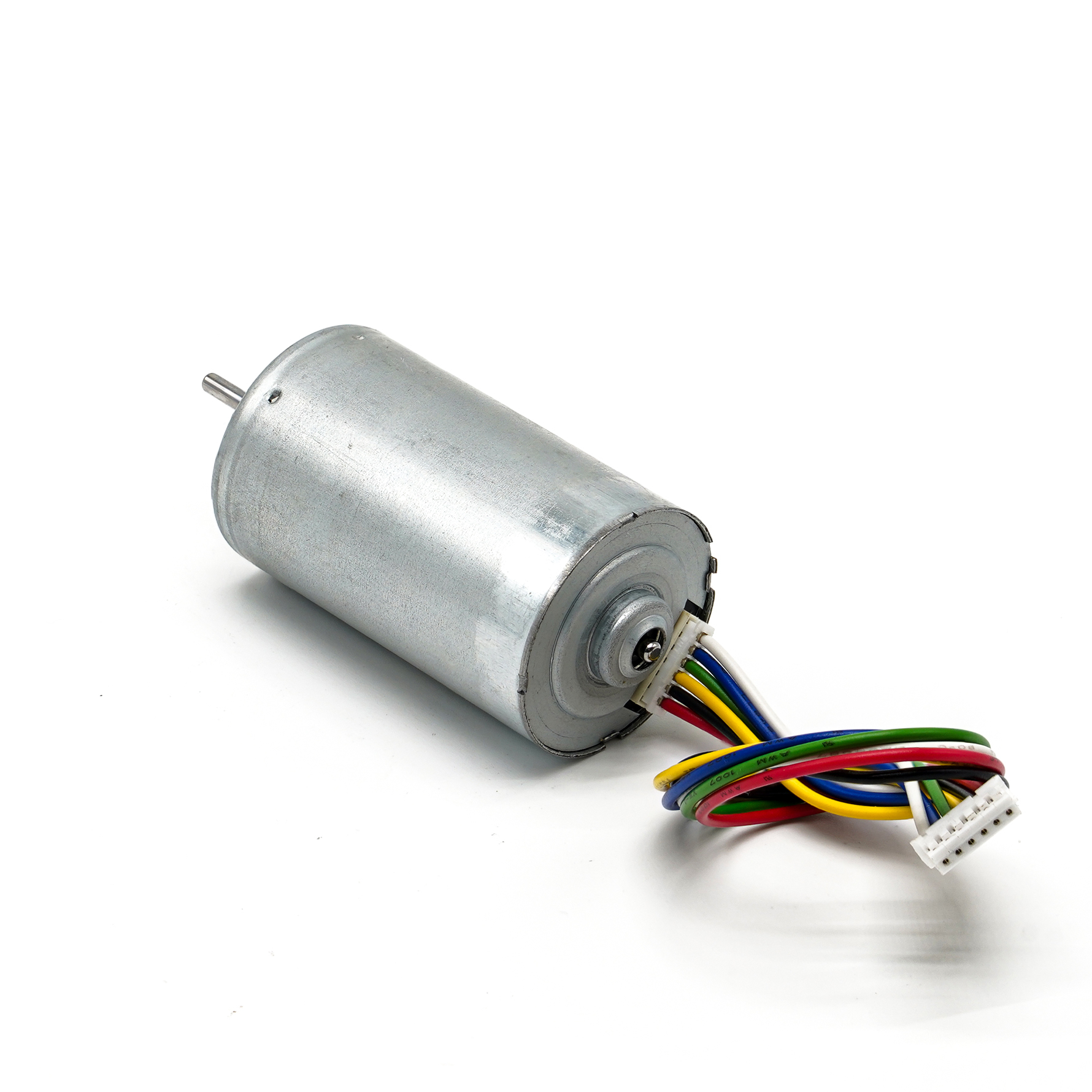

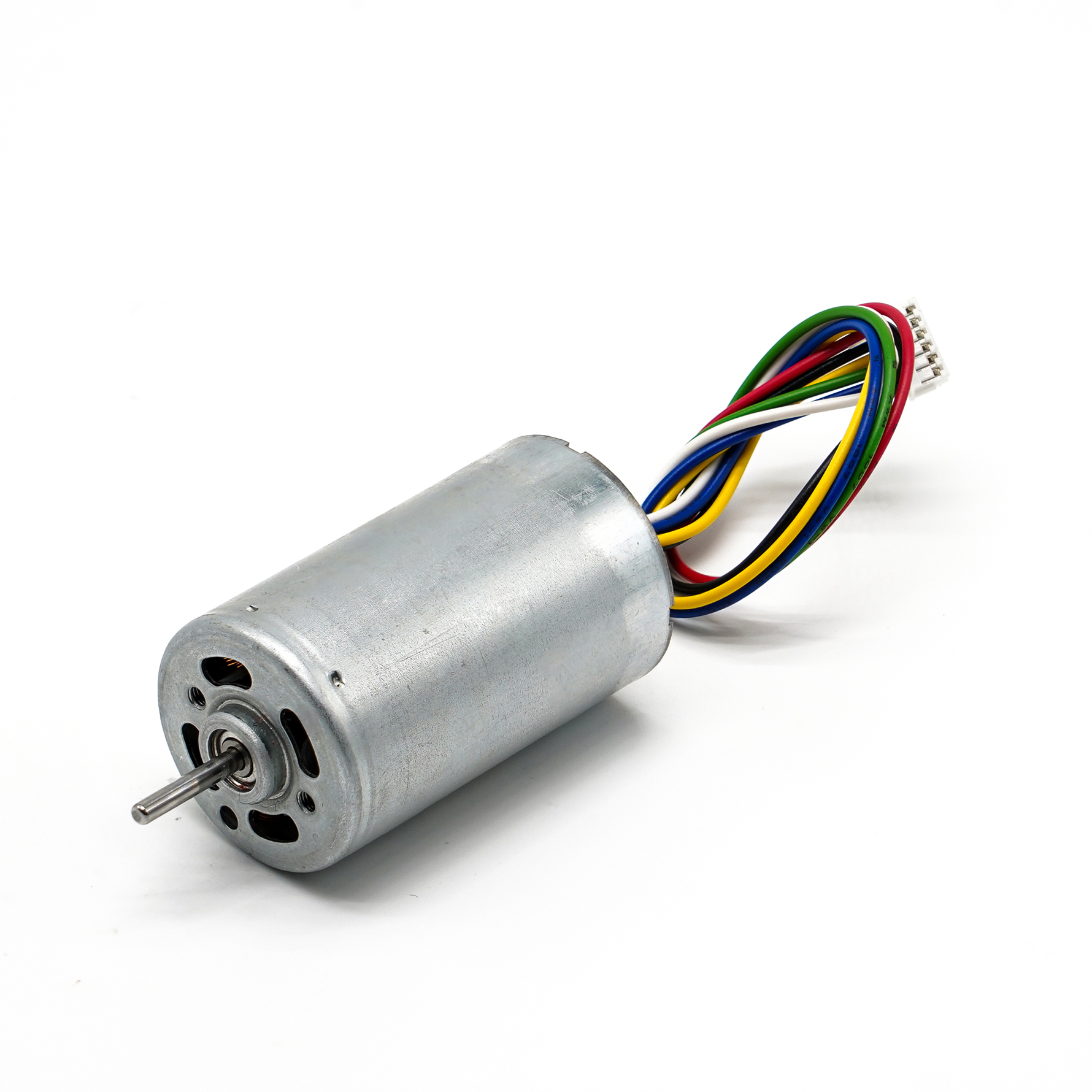

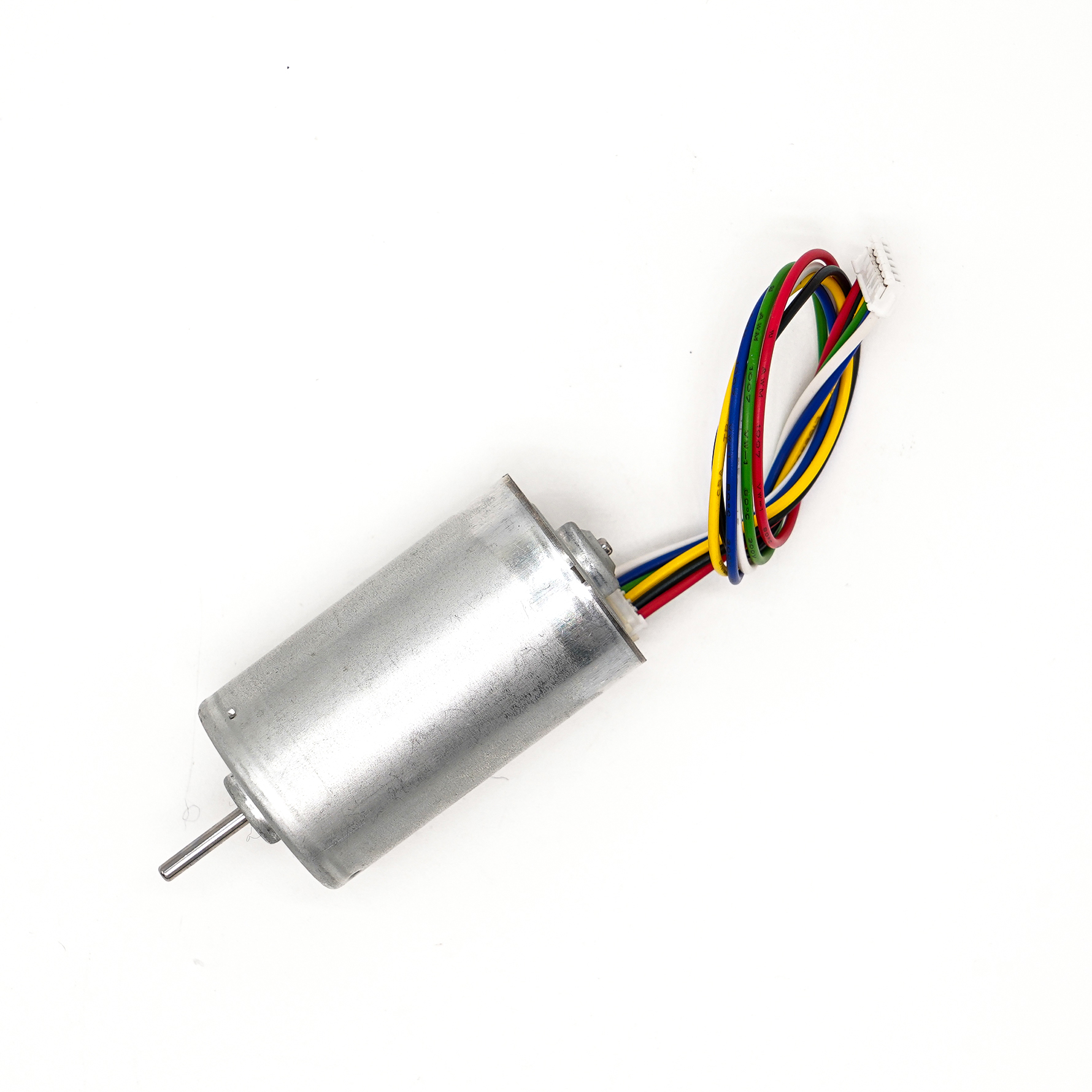

B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
B2846 Brushless dc motor with driver
Specifications
MOQ :
2000
Delivery Time :
45days
RATED TORQUE :
12mNm
Certification :
CE, RoHS
Model Number :
DH-B2846-01
STALL TORQUE :
81mNm
Payment Terms :
T/T
NO LOAD SPEED :
7000RPM±10%
RATED CURRENT :
1A
Price :
10€
NO LOAD CURRENT :
0.2A MAX
Supply Ability :
50000PCS/months
RATED VOLT :
12VDC
Brand Name :
DEHE MOTOR
STALL CURRENT :
5A
RATED SPEED :
6000RPM±10%
MOTOR TYPE :
Brushless dc motor
Place of Origin :
CHINA
DRIVER :
Can be customized
Packaging Details :
Cartoon Box
Description
Features:
  • Outer rotor BLDC motor
  • Ball bearing
  • High efficiency
  • Long life
  • Low noise
Application:
  • Violent fan
  • Power Tools
  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation

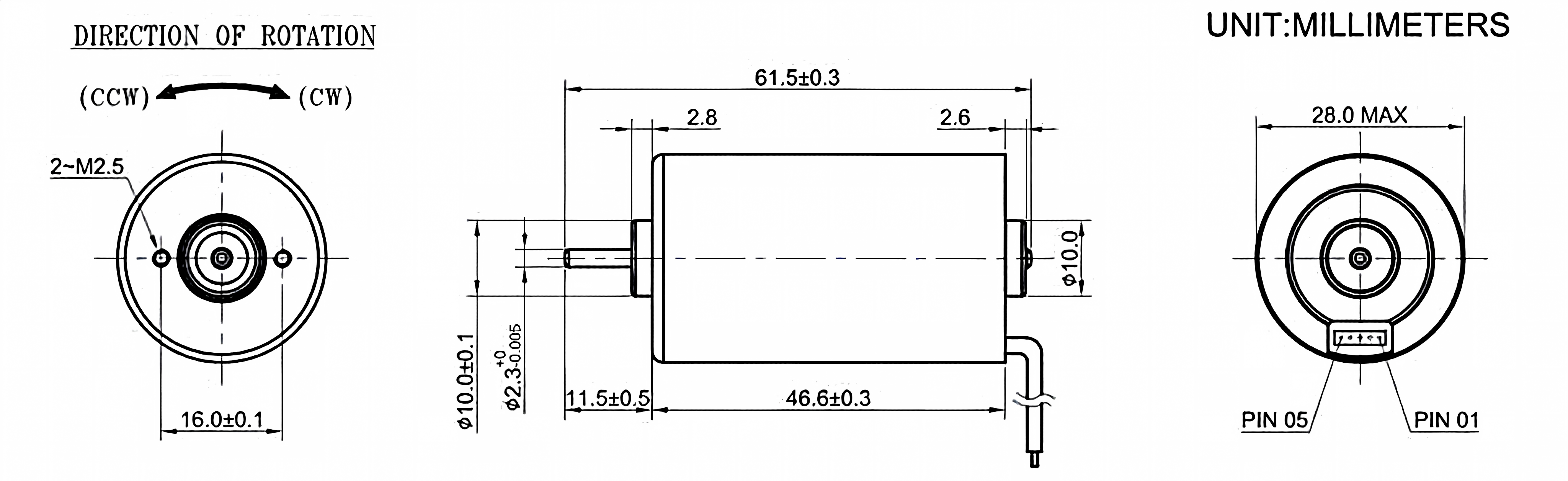

Dimensions:

B2846 Brushless dc motor with driver

MOTOR DATA:
MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		 RATED SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A g.cm W g.cm A
DH-B2846-01 6V~12V 12V 7170 0.17 6095 0.903 122.2 7.64 814.8 5.059
DH-B2846-02 8V~16V 18V 10833 0.20 9100 1.087 147.9 13.81 924.3 5.746
DH-B2847 -03 8V~26V 24V 12370 0.21 10391 1.113 173.6 18.50 1085.1 5.852
NOTES:
  • Customizable output shaft dimensions.
  • Motor voltage can be 12V, 24V,36V,44V or else, while motor speed and torque can be adjusted.
  • Can be customized driver
