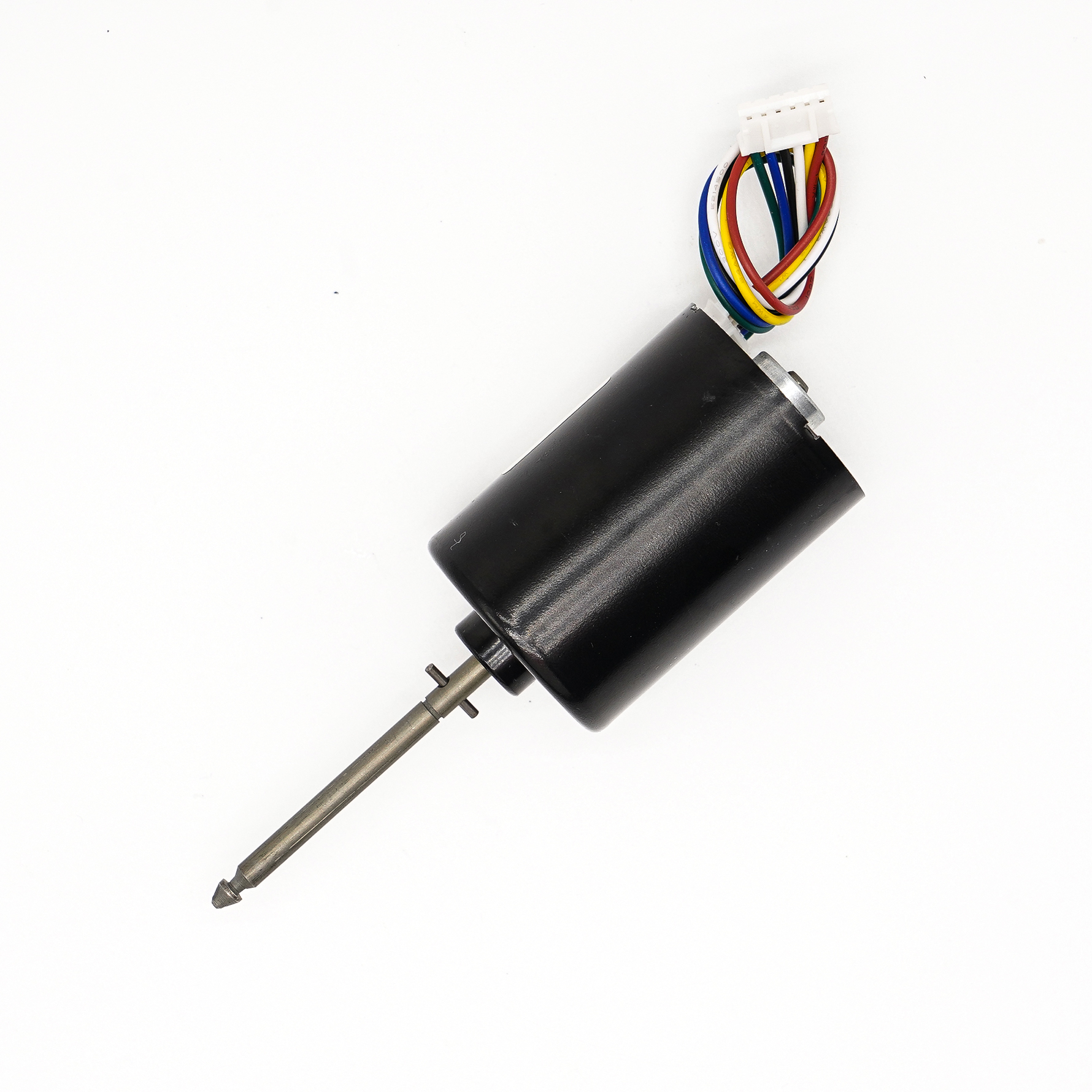

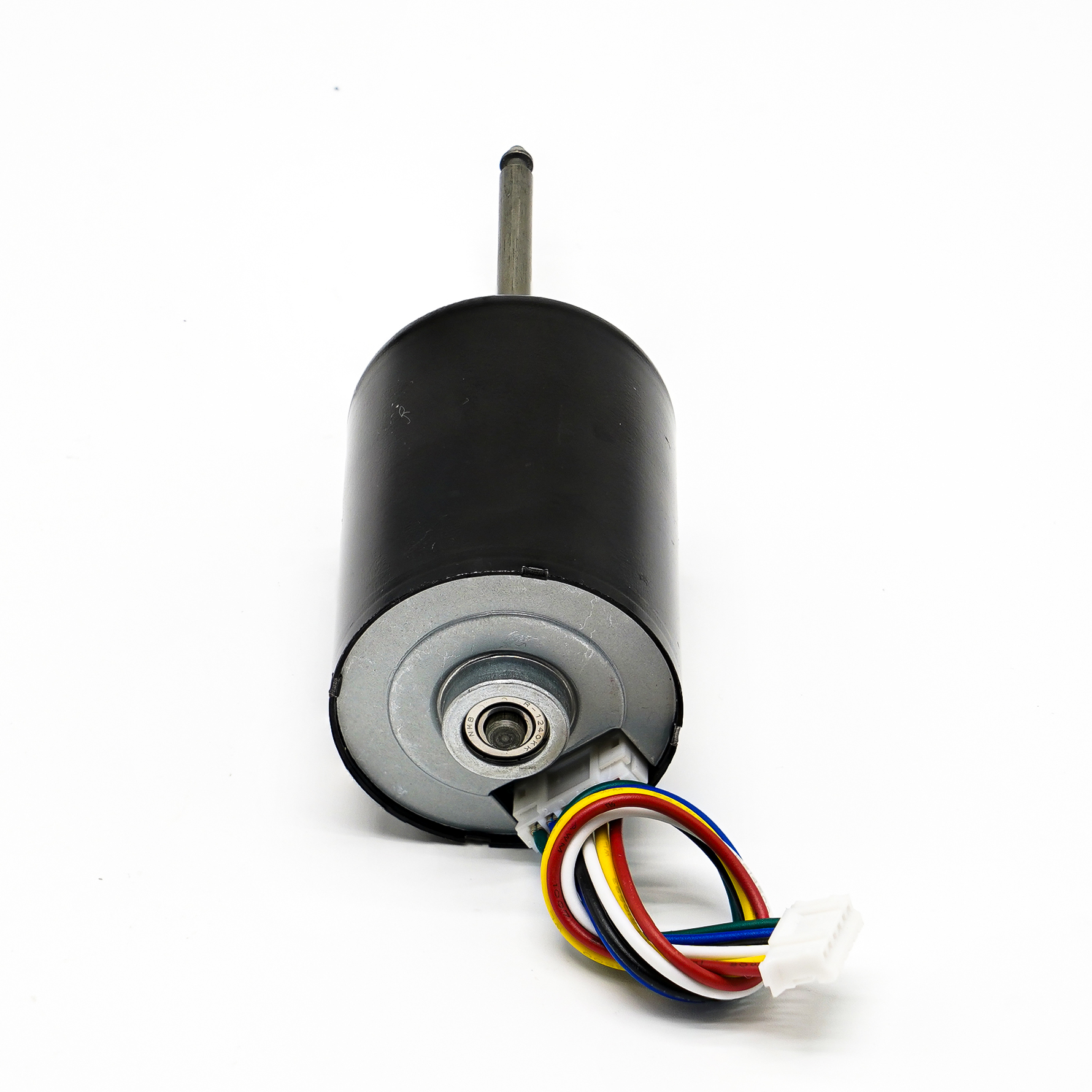

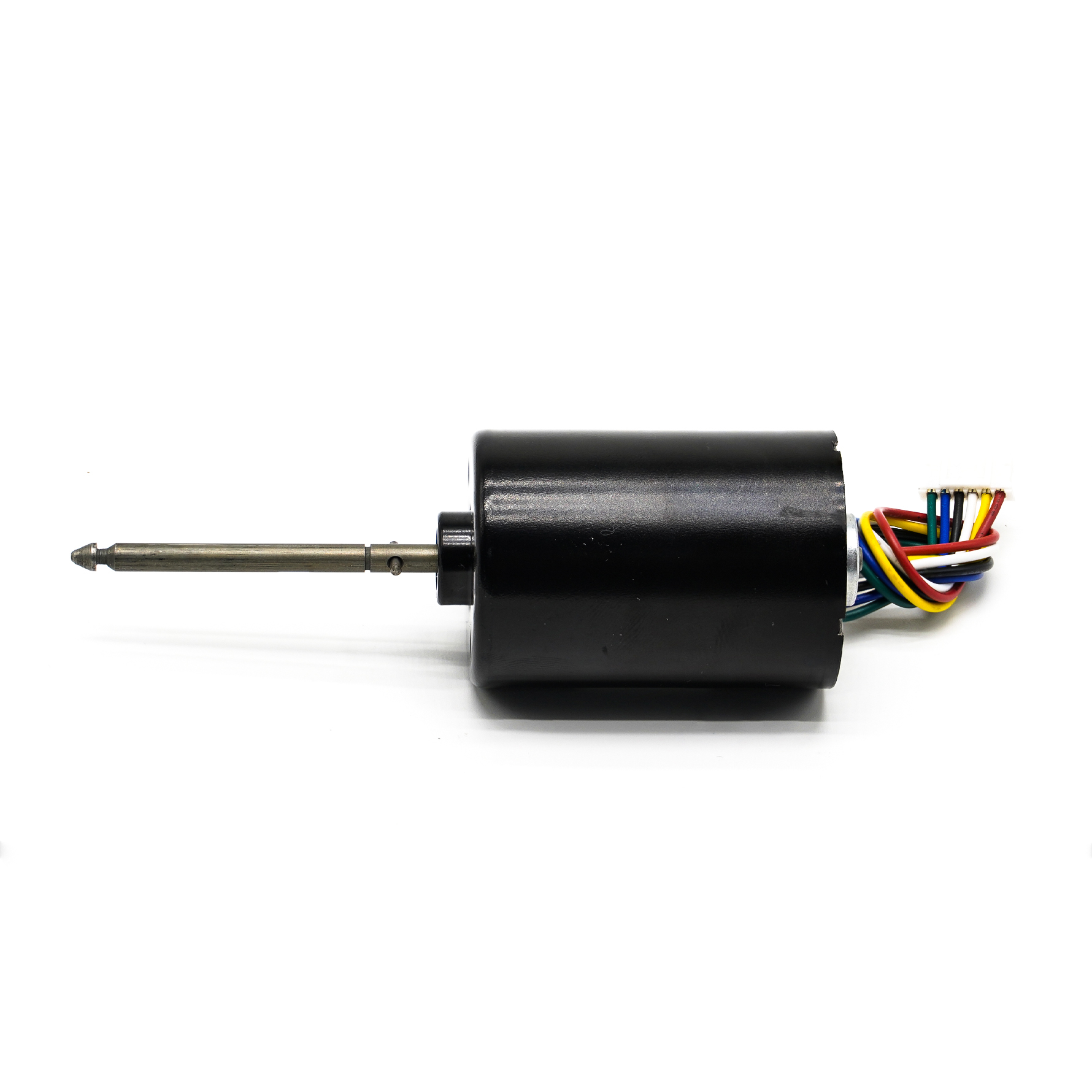

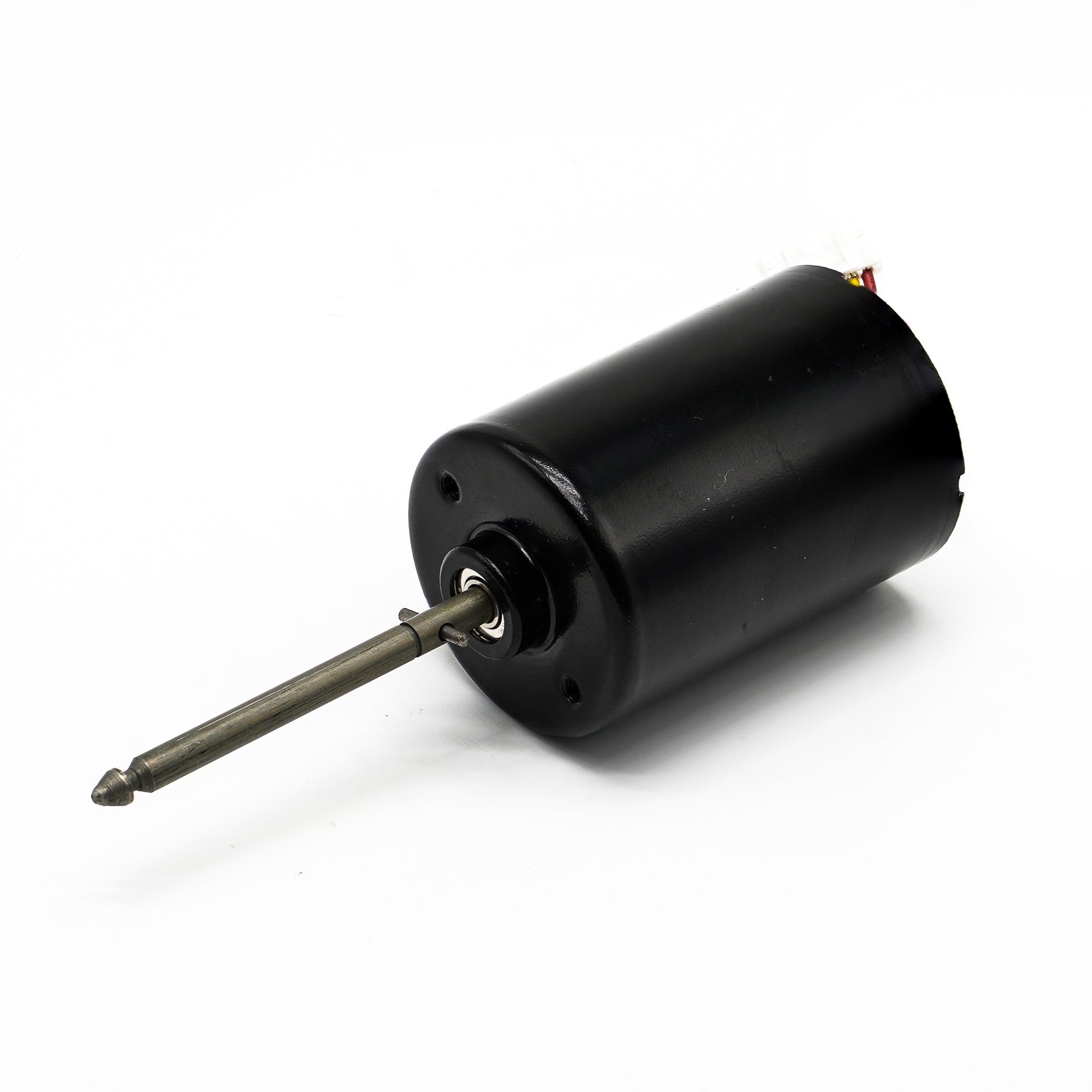

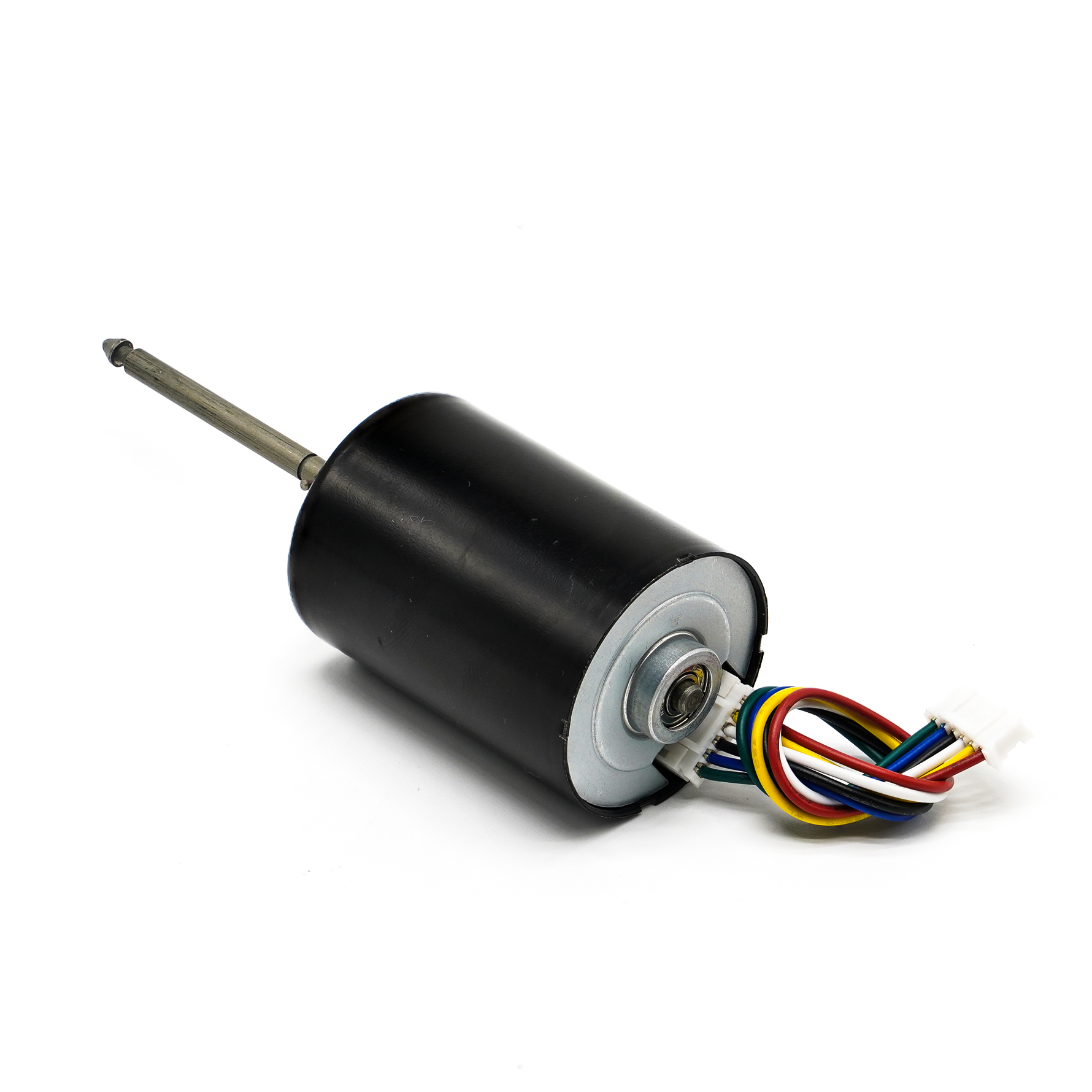

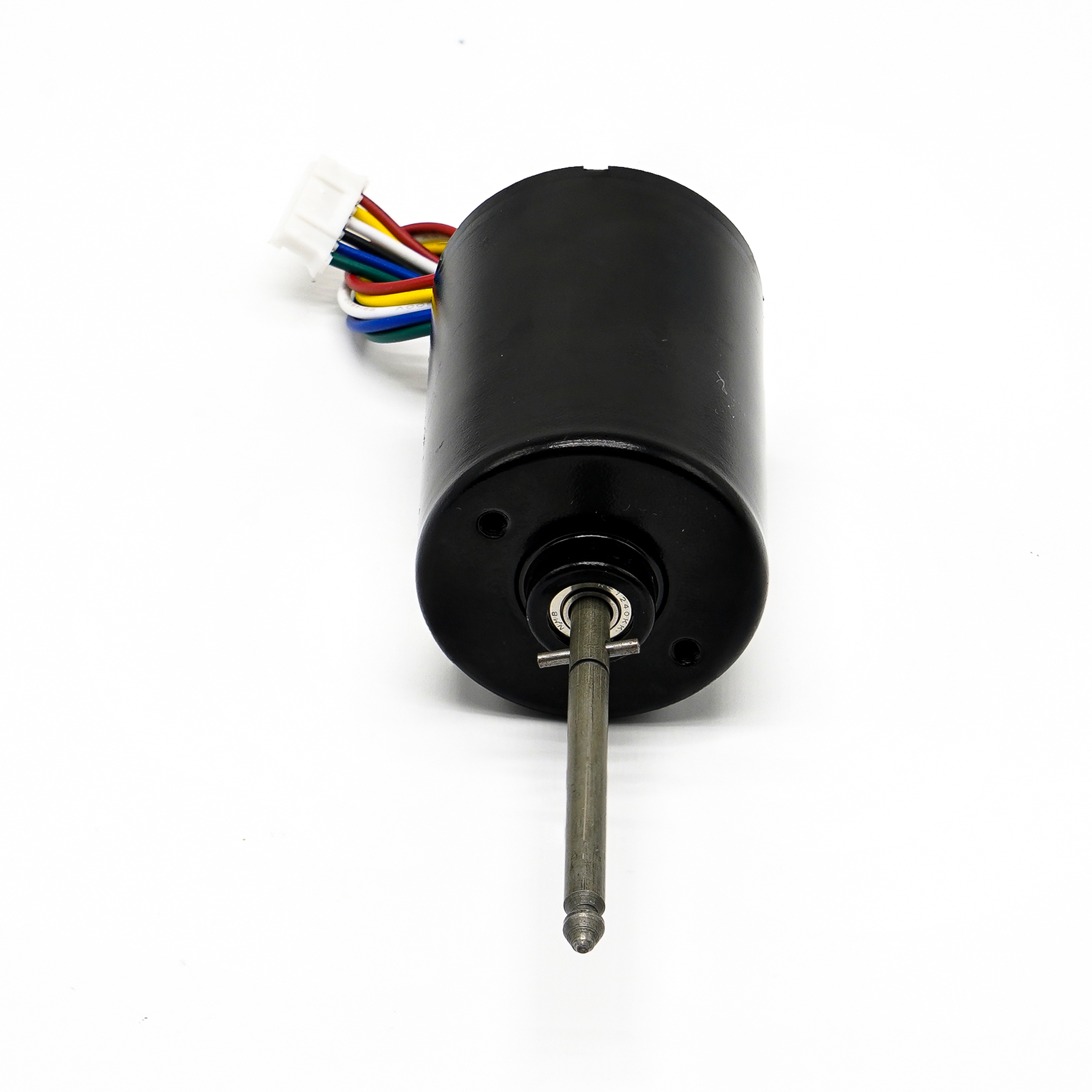

B3650 brushless dc motor For automatic soldering machine
B3650 brushless dc motor For automatic soldering machine
B3650 brushless dc motor For automatic soldering machine
B3650 brushless dc motor For automatic soldering machine
B3650 brushless dc motor For automatic soldering machine
B3650 brushless dc motor For automatic soldering machine
B3650 brushless dc motor For automatic soldering machine
B3650 brushless dc motor For automatic soldering machine
B3650 brushless dc motor For automatic soldering machine
B3650 brushless dc motor For automatic soldering machine
B3650 brushless dc motor For automatic soldering machine
B3650 brushless dc motor For automatic soldering machine
Specifications
MOQ :
2000
Delivery Time :
45days
RATED CURRENT :
0.26A
MOTOR TYPE :
Brushless dc motor
Certification :
CE, RoHS
NO LOAD CURRENT :
0.1A MAX
Model Number :
DH-B3650-04
NO LOAD SPEED :
1760RPM±10%
Payment Terms :
T/T
STALL TORQUE :
69.9mNm
Price :
10€
RATED TORQUE :
24.3mNm
Supply Ability :
50000PCS/months
STALL CURRENT :
1A
Brand Name :
DEHE MOTOR
RATED VOLT :
24VDC
Place of Origin :
CHINA
RATED SPEED :
1453RPM±10%
Packaging Details :
Cartoon Box
DRIVER :
Can be customized
Description
Features:
  • inner rotor BLDC motor
  • Ball bearing
  • High efficiency
  • Long life
  • Low noise
Application:
  • Violent fan
  • Power Tools
  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation
  • automatic soldering machine
Dimensions:

B3650 brushless dc motor For automatic soldering machine

MOTOR DATA:
MODEL VOLTAGENO LOADAT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		RATEDSPEEDCURRENTSPEEDCURRENTTORQUEOUTPUTTORQUECURRENT
r/minAr/minAg.cmW g.cmA
DH-B3650-018V~16V12V4304 0.28 3486 1.197 211.2 7.586 1116.6 5.104
DH-B3650-028V~26V18V6693 0.3 5555 1.552 305.9 17.43 1799.5 7.537
DH-B3650-038V~26V24V8458 0.4 6851 1.794 395.2 27.77 2079.8 7.628
NOTES:
  • Customizable output shaft dimensions.
  • Motor voltage can be 12V, 24V,36V,44V or else, while motor speed and torque can be adjusted.
  • Can be customized driver
