Automatic Drum Debagging Machine 380V For Food Ingredients / Plastic Pellets
Automatic Drum Debagging Machine 380V For Food Ingredients / Plastic Pellets
Automatic Drum Debagging Machine 380V For Food Ingredients / Plastic Pellets
Automatic Drum Debagging Machine 380V For Food Ingredients / Plastic Pellets
Specifications
Model Number :
TV-200
Maximum Bag Size :
900 × 600 mm (Customizable)
MOQ :
1Set
Delivery Time :
5-8 Weeks
Robot Brand :
ABB, FANUC, KUKA, Yaskawa (Optional)
Payment Terms :
T/T
Name :
Robot Debagging Equipment
Price :
USD40,000-90,000
Cutting Method :
Rotary Drum Cutting
Supply Ability :
50Sets/month
Certification :
CE/UL
Bag Material :
Paper Bags, Woven Bags, PE Bags, Composite Bags
Place of Origin :
China
Suitable Materials :
Powder, Granules, Pellets, Flakes
Brand Name :
tovot
Bag Weight :
10–50 kg
Packaging Details :
Moisture barrier film
Description

The TOVOT Automatic Drum Debagging Machine is developed for manufacturers looking for a clean and efficient way to empty bags automatically. The machine combines robotic bag feeding, drum conveying, automatic bag cutting, material discharge, and empty bag collection into one compact system.

It is suitable for food ingredients, plastic pellets, chemical powders, and other bulk materials. With intelligent automation, the machine reduces manual handling while improving production stability.

Automatic Drum Debagging Machine 380V For Food Ingredients / Plastic Pellets

Solutions

Cleaner Bag Emptying for Modern Production

Automatic drum debagging helps reduce dust, improve workplace safety, and provide a stable material supply for downstream production equipment.

Comparison

Automatic Drum Debagging VS Manual Bag Opening

  • Production Capacity: 300-500 bags/hour
  • Workers Required: 1 operator
  • Material Emptying Rate: Up to 99.8%
  • Dust Emission: Significantly lower than manual operation
  • Production Stability: Continuous automatic feeding

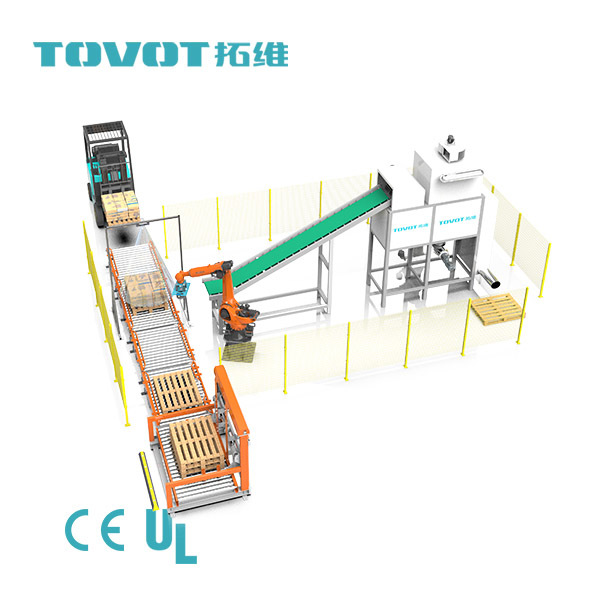

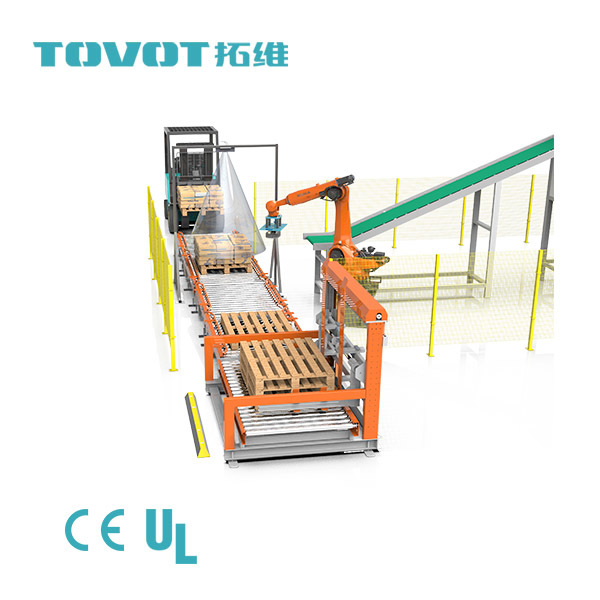

How It Works

  • Robot loads bags automatically.
  • Drum conveys the bag to the cutting station.
  • Automatic blades open the bag.
  • Material enters the hopper.
  • Empty bags leave the drum automatically.
  • Conveying equipment transports materials to the next process.

Specifications

Item Specification
Capacity 300-500 Bags/Hour
Bag Weight 10-50 kg
Voltage 380V
Installed Power 20 KW
PLC Siemen
HMI Siemen Touch Screen
Dust Collector Pulse Filter
Drum Material SUS304
Robot ABB, FANUC, Yaskawa Optional

Advantages

Intelligent Robotic Feeding

Automatic pallet handling improves production efficiency.

Hygienic Drum Structure

The stainless steel drum is suitable for food and pharmaceutical applications.

Easy Maintenance

Modular design allows quick cleaning and simple maintenance.

Flexible Integration

Compatible with screw conveyors, vacuum conveying, pneumatic conveying, silos, and mixers.

Applications

  • Food Industry
  • Chemical Industry
  • Plastic Industry
  • Feed Industry
  • Pharmaceutical Raw Materials

FAQ

Q: Which robot brands are available?

A: ABB, FANUC, Yaskawa, and other brands can be selected according to customer preference.

Q: Can the drum be made of stainless steel?

A: Yes. SUS304 and SUS316 are available for different industries.

Q: Can TOVOT design the complete production line?

A: Yes. We provide complete material handling solutions from bag emptying to conveying, mixing, storage, and packaging.
