The TOVOT Robotic Bag Emptying Machine is specially designed for the automatic handling and emptying of coffee bean bags. Manufactured with SS316 stainless steel for all material-contact parts, the system meets high hygiene standards while providing reliable and efficient bag emptying.

Combining robotic bag loading, automatic bag opening, controlled material discharge, and empty bag collection, the machine minimizes manual handling, protects coffee bean quality, and ensures a clean working environment. It is an ideal solution for coffee roasting plants, coffee processing facilities, and food production lines.

Improve productivity, protect product quality, reduce labor requirements, and achieve hygienic, automated bag emptying for coffee bean processing.

• Food-grade SS316 stainless steel contact parts
• Gentle robotic bag handling to protect coffee beans
• Automatic bag opening and controlled emptying
• Intelligent PLC and touchscreen control
• Custom robotic grippers for different coffee bag sizes
• Dust collection system available
• Continuous automatic operation
• Easy cleaning and maintenance

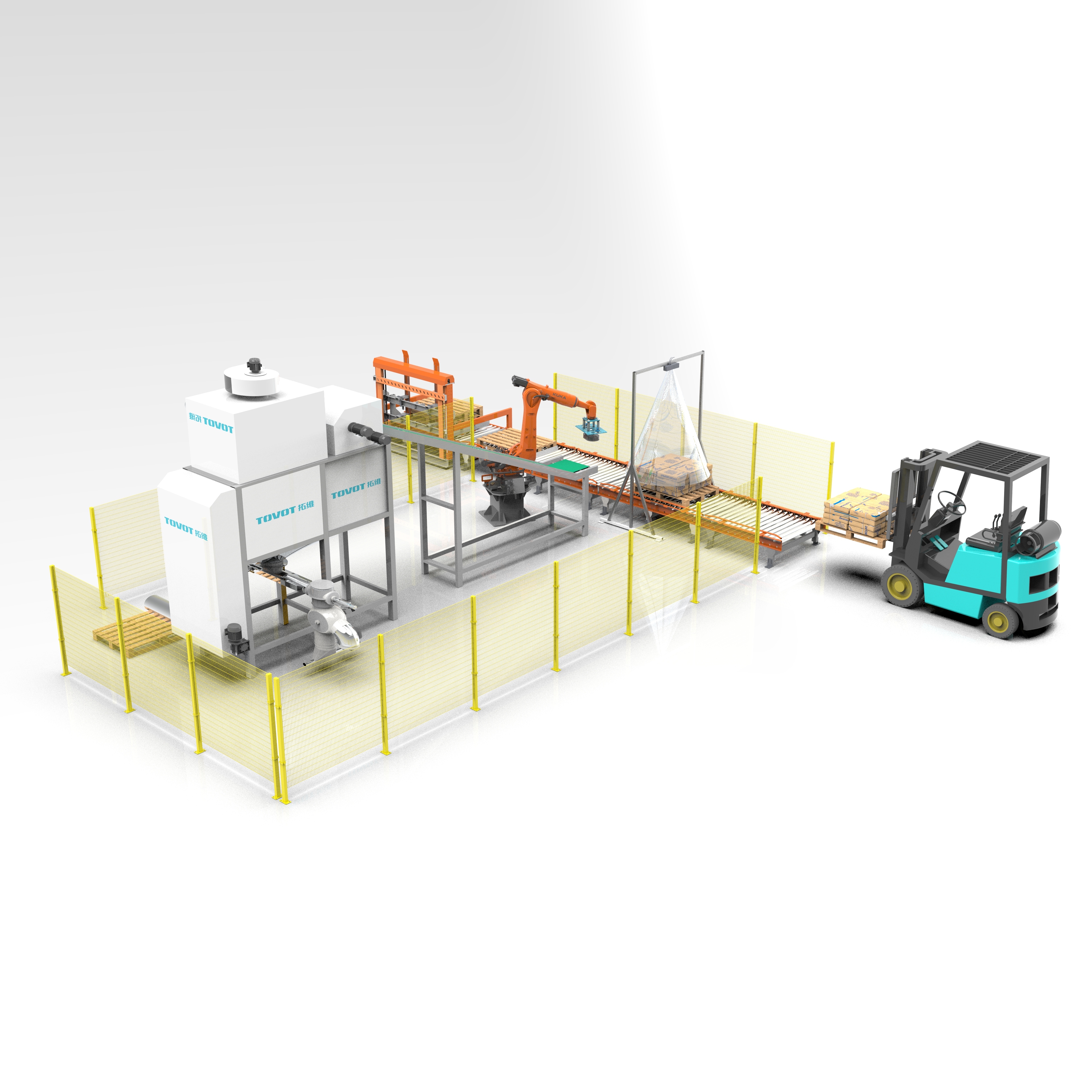

The Robotic Bag Emptying Machine performs the entire unloading process automatically.

Working Process

1. The robot picks up coffee bean bags from the pallet.
2. The bags are transferred to the automatic bag opening station.
3. The machine opens each bag and gently discharges the coffee beans.
4. Coffee beans flow into the receiving hopper without excessive impact.
5. Empty bags are collected automatically for disposal.
6. The beans are transferred to the next processing stage by a conveying system.

The Robotic Bag Emptying Machine is suitable for:

• Coffee Beans
• Green Coffee Beans
• Roasted Coffee Beans
• Cocoa Beans
• Nuts and Seeds
• Grain Products
• Food Granules
• Other Food-Grade Bulk Materials

Q1. Is the Robotic Bag Emptying Machine suitable for coffee beans?

Yes. The machine is specially designed for coffee beans and other food-grade granular materials. The unloading process is gentle to help protect product quality.

Q2. Why is SS316 stainless steel used?

SS316 stainless steel provides excellent corrosion resistance and meets the hygiene requirements of food processing industries. All material-contact parts can be manufactured in SS316.

Q3. What bag sizes can the Robotic Bag Emptying Machine handle?

The machine can handle bags from 10 kg to 75 kg, including kraft paper bags, woven bags, and PE bags. Customized designs are available for different bag specifications.

Q4. Can the machine be connected to coffee roasting or storage systems?

Yes. The Robotic Bag Emptying Machine can be integrated with silos, bucket elevators, pneumatic conveying systems, coffee roasting equipment, and other downstream processing lines.

Q5. Can the system be customized?

Yes. TOVOT provides customized solutions based on your bag size, production capacity, factory layout, and automation requirements.
