Robotic Bag Emptying Machine For Food Chemical And Plastic Material
The TOVOT Robotic Bag Emptying Machine is an automatic bag opening solution designed for food ingredients, plastic pellets, chemical powders, feed, and other bulk materials. The system combines a robotic bag loading unit, drum-type bag opening machine, PLC control, dust collection, and empty bag discharge into one complete solution. It helps factories improve production efficiency, reduce manual work, and keep the working area clean.
Compared with manual bag opening, the robotic system provides stable feeding, continuous operation, and a higher emptying rate. It is suitable for woven bags, paper bags, PE bags, and laminated bags. The machine can also be connected with screw conveyors, vacuum conveying systems, mixers, storage silos, or weighing systems according to different production requirements.

For factories using hundreds of bags every day, manual unloading needs more workers and creates more dust. The Robotic Bag Emptying Machine can automatically pick up bags, feed them into the drum opening unit, discharge materials, and collect empty bags. The whole process is simple, stable, and easy to manage.
It is a good choice for plastic, food, chemical, building material, and feed production lines.

Processing Capacity: Up to 500–700 bags/hour (depends on bag size and material)
Labor Saving: One system can replace 4–6 workers for continuous bag feeding.
Dust Control: Closed structure with dust collector keeps the workshop much cleaner.
Material Emptying Rate: Up to 99.8% for most free-flowing powders and granules.
Production Stability: Continuous automatic operation with less downtime and fewer operating mistakes.

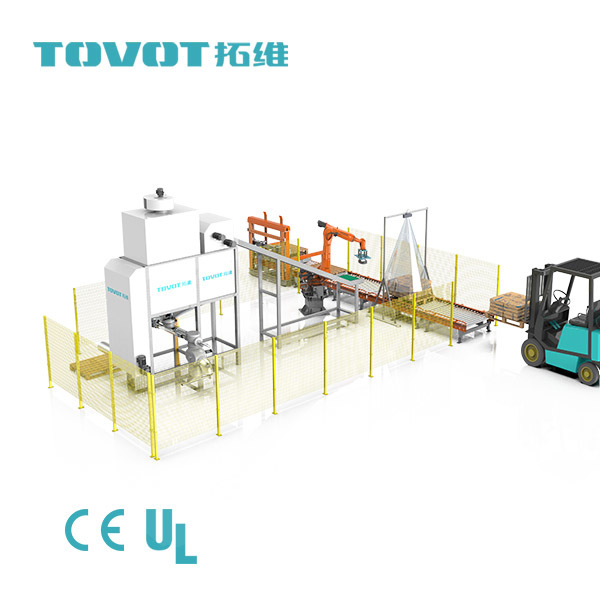

The complete system includes a robotic loading station and a drum bag opening machine.
The working process is:

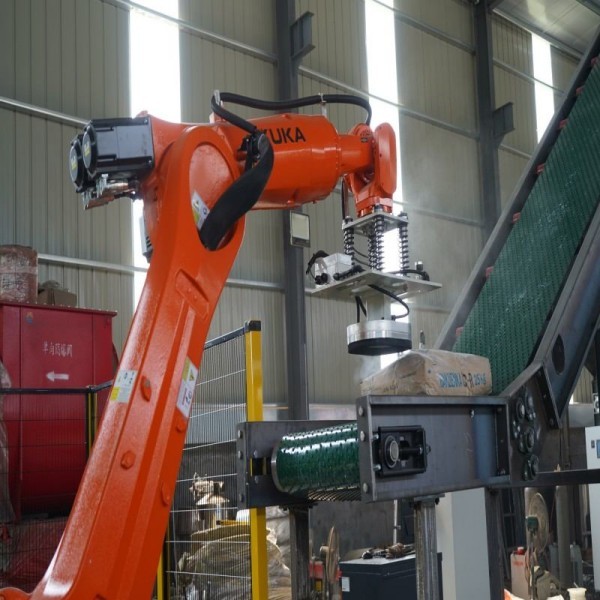

1. The robot picks up bags from the pallet automatically.
2. The robot places the bags onto the feeding conveyor.
3. Bags enter the drum bag opening machine.
4. Rotary blades cut the bags while the drum rotates gently.
5. Materials fall into the hopper and move to the next conveying system.
6. Empty bags are separated automatically and sent to the waste bag collector.
7. The dust collection system keeps the working area clean during operation.

The Robotic Bag Emptying Machine is widely used for:

• PP, PE, PVC, PET and ABS plastic pellets
• PVC resin and chemical powders
• Flour, sugar, starch and food ingredients
• Feed, grain and seed processing
• Mineral powder, cement additives and other bulk materials

• Automatic robotic bag loading
• Stable drum bag opening technology
• Low dust and clean production
• High material emptying efficiency
• Easy operation and low maintenance
• Can be customized for different bag sizes and factory layouts
• Easy to connect with conveying, mixing and storage systems

Q: What bag types can the Robotic Bag Emptying Machine handle?
A: It is suitable for woven bags, paper bags, PE bags, laminated bags, and many other common industrial packaging bags from 10 kg to 50 kg.
Q: Can the machine handle both powder and plastic pellets?
A: Yes. It is suitable for powders, granules, pellets, flakes, and many other bulk materials. We can adjust the machine according to your material.
Q: Can this machine connect with our existing production line?
A: Yes. We can match it with screw conveyors, vacuum conveying systems, mixers, storage silos, weighing machines, and other equipment.
Q: Is the machine suitable for food applications?
A: Yes. Food-grade stainless steel contact parts are available for food and pharmaceutical industries.
Q: Can TOVOT provide a complete bag emptying solution?
A: Yes. Besides the Robotic Bag Emptying Machine, we also supply automatic bag opening machines, jumbo bag unloading stations, conveying systems, mixing systems, and complete bulk material handling solutions.
