ICS Triplex T8850 Analogue Output Module with 5 Power Groups featuring LED Power Indication
ICS Triplex T8850 Analogue Output Module with 5 Power Groups featuring LED Power Indication
ICS Triplex T8850 Analogue Output Module with 5 Power Groups featuring LED Power Indication
ICS Triplex T8850 Analogue Output Module with 5 Power Groups featuring LED Power Indication
ICS Triplex T8850 Analogue Output Module with 5 Power Groups featuring LED Power Indication
ICS Triplex T8850 Analogue Output Module with 5 Power Groups featuring LED Power Indication
Specifications
Brand Name :
ICS triplex
Model Number :
T8850
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Power Dissipation :
0.5 W per power group
Channel to Channel (within Power Group) :
None
Fusing :
None
Operating Temperature :
0 °C to+ 60 °C (+32 °F to +140 °F)
Storage Temperature :
-25 °C to +70 °C (-13 °F to +158 °F)
Relative Humidity – Operating and Storage :
10 % – 95 %, non-condensing
Country Of Origin :
USA
Shipping :
TNT, DHL, FedEx, EMS, UPS
Description
ICS Triplex T8850 Analogue Output Module with 5 Power Groups featuring LED Power Indication

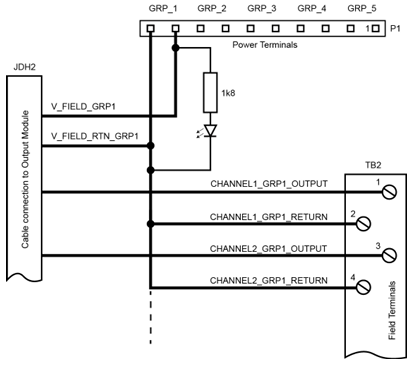

The T8850 Output Field Termination Assembly (FTA) provides termination for up to 40 output field loops, arranged in five groups of eight identical channels each. A green LED indicates the presence of the field power supply for each power group. The FTA routes the signal from the output module to the connected field devices, ensuring proper distribution and integrity of the output signals.
The connection between the 40-channel output module and the FTA is terminated at the 96-way socket JDH2. SmartSlot (Version 1) signals from the module are connected via JDH1. This setup ensures reliable communication between the output module and the field termination assembly, supporting both analogue and digital output operations.
The DC field power supplies are connected to the FTA through a 10-way terminal block (P1). The 40 output signals to the field are wired via 2-wire arrangements, terminated on dual-height terminal blocks TB2. This configuration provides organized wiring, clear separation of channels, and straightforward installation within the Trusted System architecture.
ICS Triplex T8850 Analogue Output Module with 5 Power Groups featuring LED Power Indication
ICS Triplex T8850 Analogue Output Module with 5 Power Groups featuring LED Power Indication
Industrial Automation Process Control Systems
Reliable distribution of analogue and digital output signals to field devices in complex industrial systems. Supports precise control of actuators, motors, and process loops through grouped output channels.
Machine Control & Monitoring Distributed I/O Architectures
Integration with PLC output modules for real-time status indication and control of machine operations. Compatible with SmartSlot modules, enabling hot-swappable replacement in distributed control systems.
Panel & Field Wiring Solutions Safety & Alarm Systems
Provides organized wiring, dual-height terminal blocks, and clear separation of channels for simplified installation and maintenance. Ensures reliable routing of output signals with fused field power and LED indication for power integrity monitoring.
ICS Triplex T8850 Analogue Output Module with 5 Power Groups featuring LED Power Indication
