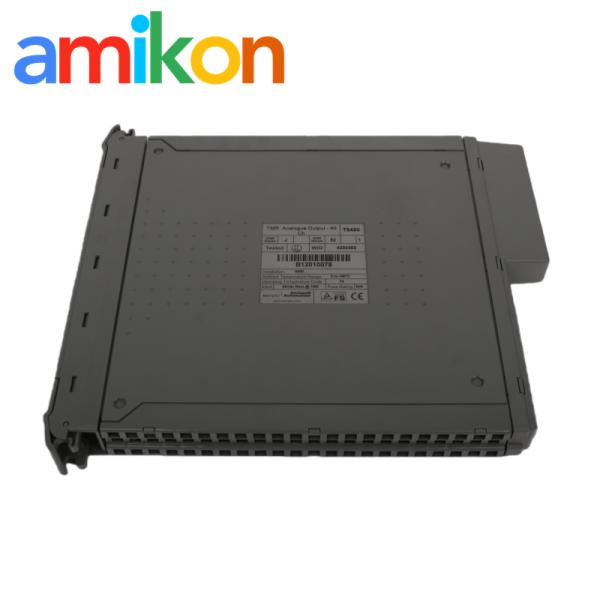

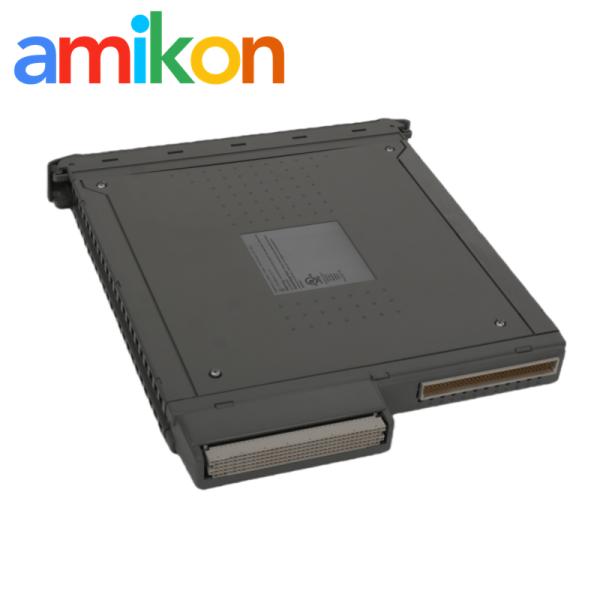

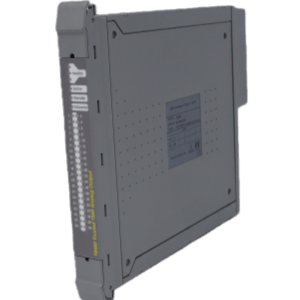

ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation
ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation
ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation
ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation
ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation
ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation
Specifications
Brand Name :
ICS triplex
Model Number :
T8480
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Country of origin :
USA
Place of shipment :
Xiamen, China
Estimated Shipping Size :
3.1x30.5x26.5cm
weight :
1.28 kg
Operating Temperature Range :
-40°C to +70°C (-40°F to +158°F)
Storage Temperature Range :
-40°C to +85°C (-40°F to +185°F)
Humidity Range :
5% to 95% non-condensing
Altitude :
Up to 2000 meters (6562 feet)
Description
ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation

Current Output: 4-20 mA
Voltage Output: 0-10 V, ±10 V
Current Load: 750 ohms
Voltage Load: 10 kΩ
Operating Voltage: 24 V DC (nominal)
Power Consumption: Approximately 4 W per module
Nominal Supply Voltage Range: 20.4 V to 27.6 V DC
Current Consumption: Typically 200 mA
ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation

  • High-Density Output: 40 Triple Modular Redundant (TMR) output channels per module
  • Advanced Diagnostics: Comprehensive automatic diagnostics and self-test for maximum reliability
  • Line Monitoring: Automatic point-by-point detection of open circuits, short circuits, and load faults
  • Robust Isolation: 2500V impulse withstand via opto/galvanic isolation barrier
  • Overcurrent Protection: Automatic per-channel protection, eliminating the need for external fuses
  • Sequence of Events (SOE): Onboard reporting with 1 ms resolution for precise event tracking
  • Hot-Swappable: Module can be replaced online using Companion (adjacent) Slot or SmartSlot configurations
Status Indicators
Front panel LEDs for each output indicate point status and field wiring faults.
Module status LEDs show health and operational mode (Active, Standby, Educated).
Safety & Certification
TÜV Certified for non-interfering applications (refer to T8094 safety manual).
Power Grouping: Outputs are powered in isolated groups of eight, each forming a Power Group (PG).
ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation

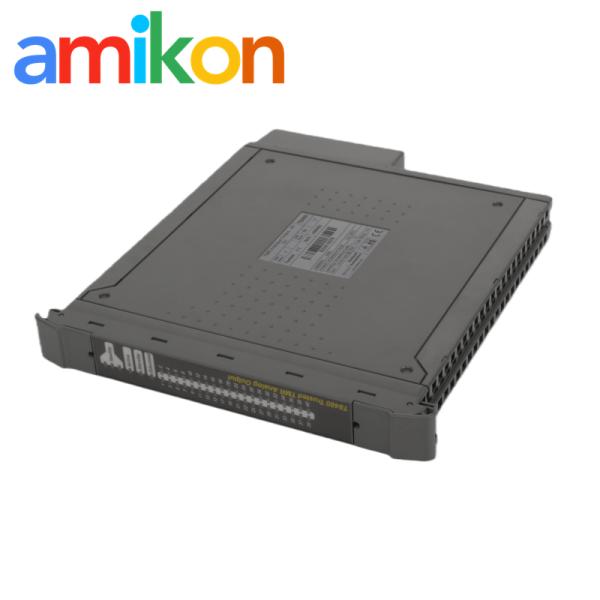

The module front panel features six status indicators:
Three Healthy | One Active | One Standby | One Educated
Each Module slice directly controls the Healthy indicators. The FPU (Fault-tolerant Processing Unit) controls the Active, Standby, and Educated indicators. The FPU receives data from all Module slices, performs a 2oo3 vote on each data bit, and sets the indicators accordingly.

Indicator State Description
Healthy Off No power applied to the Module
Amber Slice is in the startup state (momentary after installation or power-up)
Green Slice is healthy
Red - flashing Fault present on the associated slice but the slice is still operational
Red The associated slice is in the fatal state. A critical fault has been detected and the slice disabled
Active Off Module is not in the Active state
Green Module is in the Active (or Maintain) state
Standby Off Module is not in the Standby state
Green Module is in the Standby state
Educated Off Module is not educated
Green Module is educated
Green - flashing Module is recognized by the Processor but education is not complete
Amber - flashing Active/Standby changeover in progress
ICS Triplex T8480 Trusted TMR Analogue Output Module with 40 TMR Channels, 2500V Isolation
