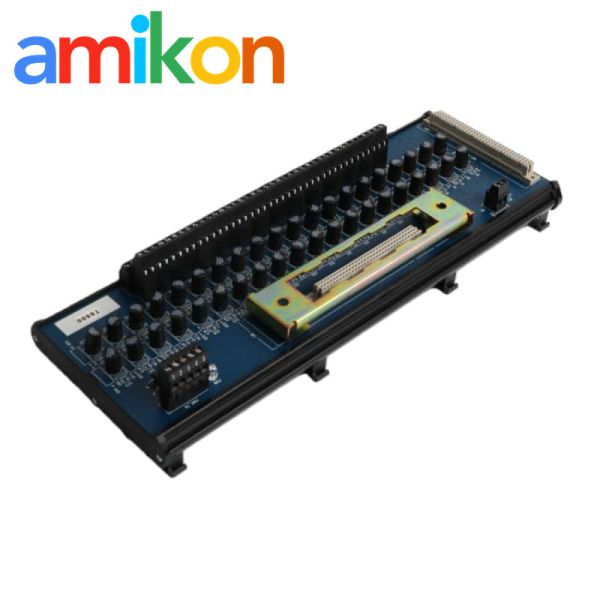

ICS Triplex T8800 Digital Input Field Termination Assembly with 40 Input Channels
ICS Triplex T8800 Digital Input Field Termination Assembly with 40 Input Channels
ICS Triplex T8800 Digital Input Field Termination Assembly with 40 Input Channels
ICS Triplex T8800 Digital Input Field Termination Assembly with 40 Input Channels
ICS Triplex T8800 Digital Input Field Termination Assembly with 40 Input Channels
ICS Triplex T8800 Digital Input Field Termination Assembly with 40 Input Channels
Specifications
Brand Name :
ICS triplex
Model Number :
T8800
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Product Model :
T8800
Manufacturer :
ICS triplex
Description :
Digital Input Field Termination Assembly
Place Of Shipment :
Xiamen, China
Packaging :
Original New Packaging
Shipping :
TNT, DHL, FedEx, EMS, UPS
MOQ :
1 Piece
Country Of Origin :
USA
Description
ICS Triplex T8800 Digital Input Field Termination Assembly with 40 Input Channels
The T8800 Digital Input Field Termination Assembly (FTA) provides termination for up to 40 input channels from various field devices that generate digital inputs. The field supply is derived from dual 24 V DC feeds, which are commoned via diodes on the FTA. A green LED indicates the presence of the power supply, which is then distributed to each channel. The supply to the field is limited by a 50 mA fuse, protecting the field loop from overcurrent.
Digital signals from the field devices are fed directly to the digital input module. Line monitoring components, if required, provide thresholds to detect the status of the field loop or device, such as open/short circuits or alarms. The FTA ensures reliable signal conditioning and protection for the connected input module.
The 40-channel connection between the input module and the FTA is terminated at the 96-way socket SK1. SmartSlot (Version 1) signals from the module are connected via SK1, while the SmartSlot connector SK2 (also a 96-way socket) is not used in SmartSlot Version 2 systems. Dual DC field power supplies connect to the FTA through a 5-way terminal block (PWR TB), and the 40 field input signals are connected via 2-wire arrangements terminated on twelve 3-way terminal blocks and two 2-way terminal blocks.

ICS Triplex T8800 Digital Input Field Termination Assembly with 40 Input Channels
ICS Triplex T8800 Digital Input Field Termination Assembly with 40 Input Channels
Specification Parameter Technical Rating / Value
Voltage Range 18 Vdc to 32 Vdc
Fuses 40-off 50 mA
Maximum Current (Field Supply) 10 mA
Power Consumption (Field Supply) 0.25 W
Operating Temperature 0 °C to +60 °C (+32 °F to +140 °F)
Non-operating Temperature -25 °C to +70 °C (-13 °F to +158 °F)
Relative Humidity Range (Operating, Storage, and Transport) 10% - 95%, non-condensing
ICS Triplex T8800 Digital Input Field Termination Assembly with 40 Input Channels
Key Features
  • Supports 40 input channels per FTA
  • Compatible with industry standard 2-wire field device connections
  • Standard DIN rail mounting for easy integration
  • Simple installation and connection procedures
  • Operates at 24 V DC
  • SmartSlot connection enables "one-to-many" hot replacement of input modules
  • Fused field power supply for each channel
  • On-board LED indicates the integrity of the field power supply
