Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link
Specifications
Brand Name :
Bently Nevada
Model Number :
3500/23E
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Operating Temperature :
0 °C to +65 °C (-22 °F to +149 °F)
Storage Temperature :
-40 °C to +85 °C (-40 °F to +185 °F)
Humidity :
95%, non-condensing
Powered TDI :
38 years @ 50°C (122 °F)
Un-powered TDI :
12 years @ 50°C (122 °F)
Power Supply :
24 VDC
Estimated Shipping Size :
5.5x29x23cm
weight :
1.44 kg
Description
Bently Nevada 3500/23E Transient Data Interface
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link
Functional Overview
The 3500/23E Transient Data Interface (TDI) serves as the primary communication and data interface between the 3500 ENCORE™ Machinery Protection and Monitoring System and GE System 1™ condition monitoring and diagnostic software. It integrates the functionality of a System Monitor with the data acquisition and communication capabilities of a dedicated communication processor.
System Operation
Installed in the System Monitor slot of a 3500 ENCORE rack, the TDI operates in conjunction with 3500/42E vibration monitoring modules. This configuration enables the continuous acquisition of:
  • Steady-state waveform data
  • Transient and dynamic waveform data
Collected data is transmitted in real time to the host system via an Ethernet communication link for analysis and diagnostics within System 1 software.
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link
The TDI incorporates enhanced communication processor functionality directly within the 3500 ENCORE rack architecture, offering improvements over previous-generation communication processors.
Key Communication Features
  • Access to all monitored values and system statuses within the rack
  • Seamless integration with process control systems (DCS/PLC) and other automation platforms
  • Support for serial communication protocols: RS-232, RS-422, RS-485
These capabilities allow the TDI to function as a centralized data gateway for machinery condition information.
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link

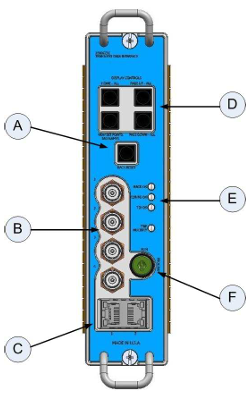

Interface Components
Label Component
A Reset Switch
B Buffered Transducer Outputs
C Ethernet Ports
D Display Control Switches
E Status LEDs
F Keylock (Program / Run)
Bently Nevada 3500/23E Transient Data Interface with Ethernet Communication Link
