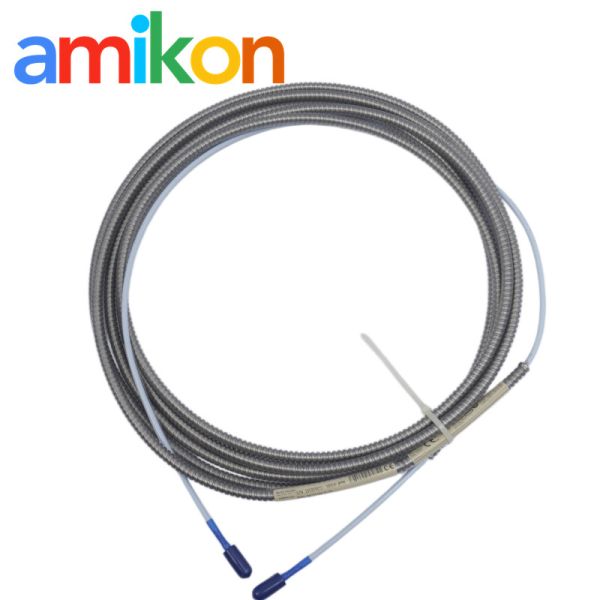

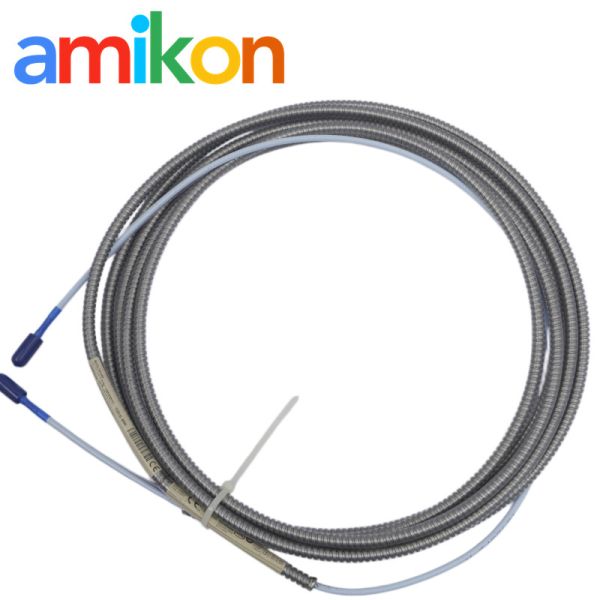

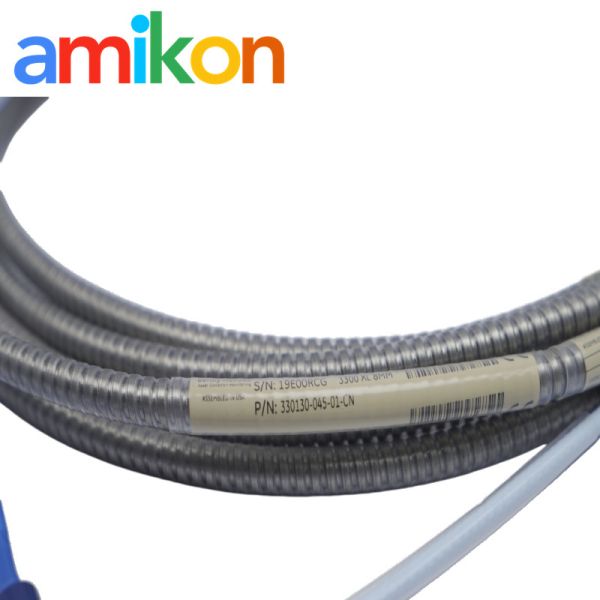

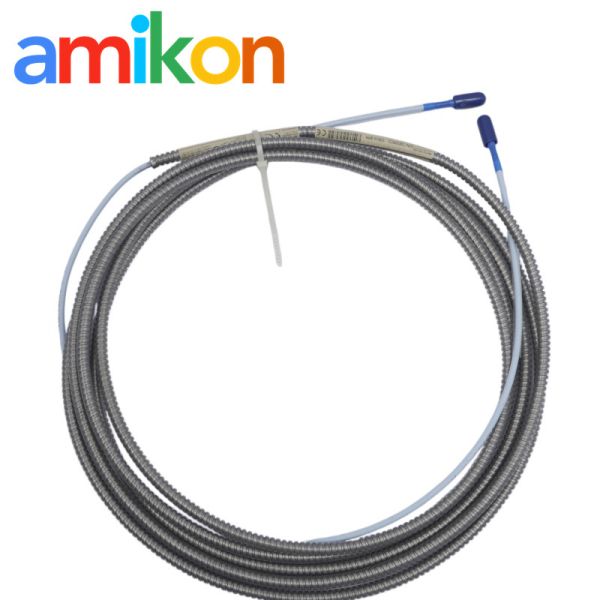

Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 Compliance
Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 Compliance
Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 Compliance
Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 Compliance
Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 Compliance
Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 Compliance
Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 Compliance
Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 Compliance
Specifications
Brand Name :
Bently Nevada
Model Number :
330130-045-01-CN
Place of Origin :
USA
MOQ :
1
Price :
66USD
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
2-3 work days
Packaging Details :
Brand new and original
Model :
330130-045-01-CN
Country of origin :
USA
Place of shipment :
Xiamen,China
Shipping :
TNT, DHL, FedEx, EMS, UPS
MOQ :
1 piece
Packaging :
Original new packaging
Expected shipping Size :
27x27x2.5cm
Weight :
0.46 kg
Description
Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable
Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 Compliance
Product Overview
  • Model Identification: Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable
  • Core Function: Connects a 3300 XL 8mm proximity probe to a Proximitor sensor for eddy current sensor replacement cable installations
  • Long-Tail Application: Designed specifically for critical asset protection, shaft vibration measurement, and axial thrust position measurement in power plant instrumentation
  • Physical Architecture: Heavy-duty 4.5-meter (14.8 ft) 75-ohm armored extension cable wrapped in rugged stainless steel conduit armor
  • Signal Integrity: Features gold-plated Coaxial ClickLoc connectors to prevent signal degradation in high-vibration rotating machinery monitoring environments
  • Environmental Tolerance: Performs reliably under extreme conditions ranging from -52 °C to +177 °C for high-temperature steam turbine instrumentation
  • Compliance & System Certification: Fully API 670 compliant and carries NEPSI hazardous area approval for intrinsically safe deployments in China
Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 Compliance
Customer Testimonials
Amikon supplied a full automation kit for our new assembly cell, and their advice on wiring and layout saved us days of setup.
When one of our production lines had multiple sensor failures, Amikon coordinated replacements quickly, so the downtime was minimal.
On a tight deadline, Amikon got us replacement HMIs and PLC modules with pre-checked configurations, making installation seamless.
They helped us retrofit an older line with new PLCs and drives, making the system more reliable without redesigning existing panel.

Get a Quote Now
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 ComplianceBently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 Compliance
Frequently Asked Questions
What is Bently Nevada 330130-045-01-CN used for?

The Bently Nevada 330130-045-01-CN is a 4.5m armored extension cable for the 3300 XL 8mm proximity system. It connects the probe and Proximitor, mainly for eddy current sensor cable signal transmission. It uses 75Ω Coaxial cable design with triaxial ClickLoc connectors, plus NEPSI certified proximity cable approval.

Can the 330130-045-01-CN replace the unarmored version?

Yes, electrically it’s the same as 330130-045-00-CN. So in most cases it works as a drop-in eddy current sensor replacement cable. The difference is protection. This one has stainless steel armor wrapping, which helps in high-vibration rotating machinery monitoring where cables can get hit or squeezed.

Does the 330130-045-01-CN affect signal accuracy in turbine or compressor systems?

In steam turbine vibration monitoring or centrifugal compressor protection systems, signal stability is important. This cable uses triaxial shielding + ClickLoc connectors, which helps keep low-attenuation high-frequency RF signals stable into the 3500/40M Proximitor Monitor inside a 3500 rack module system. In practice, it helps avoid noise-related false alarms.

What should be considered during installation for the 330130-045-01-CN?

Nothing too complex, but a few basics matter. Keep the total system electrical length matched with the probe and Proximitor setup. And don’t bend it tighter than the 25.4 mm minimum bend radius, especially near turbine or compressor areas. That’s usually enough to keep the 3300 XL Extension Cable performing stable in long-term use.

What does the CN suffix mean in the 330130-045-01-CN?

The “CN” version is aligned with NEPSI hazardous area approval and China certification requirements. In real projects like petrochemical plants, power plant instrumentation, or intrinsically safe deployments in China, this version is often preferred because it passes compliance checks more directly.

Bently Nevada 330130-045-01-CN 3300 XL Standard Extension Cable with 4.5-meter Armored Design Gold-Plated ClickLoc Connectors and API 670 Compliance
Compatible System Components
Component Model Compatible Part Numbers
3500/72M 176449-08 330104-19-25-10-11-05
3500/62 163179-03 330103-00-05-10-02-05
3500/40M 140734-01 330103-00-18-05-02-05
330500-02-00 330130-045-02-05
135137-01 330101-00-08-05-02-05
149992-02 330130-085-00-05
147663-01 125388-01
3500/94 145988-01 128275-01/128275-01F 130944-01
140482-01 330780-91-00
330500-00-20 330103-00-14-10-01-00
170133-090-00 330730-080-02-00
3500/32M 149986-02 330104-05-13-10-02-00
1900/65A 172323-01 3500/23E
330180-X0-05 3500/15E
125720-01 136711-01
125760-01 330703-000-040-10-11-00
125768-01 330705-02-18-10-02-00
128229-01 330703-000-070-10-02-00
128240-01 330101-10-27-05-02-05
133396-01 330878-50-00
