330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
Specifications
Delivery Time :
2-3 work days
Brand Name :
Bently Nevada
Weight :
0.1kg
Model Number :
330103-10-20-05-02-CN
Model :
330103-10-20-05-02-CN
Supply Ability :
in stock
Shipping :
TNT, DHL, FedEx, EMS, UPS
Payment Terms :
T/T
Country Of Origin :
USA
Place of Origin :
USA
Packaging :
Original new packaging
Price :
66USD
Packaging Details :
Brand new and original
Place of shipment :
Xiamen,China
MOQ :
1
Expected Shipping Dimensions :
1.8x1.5x69cm
Description
330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe

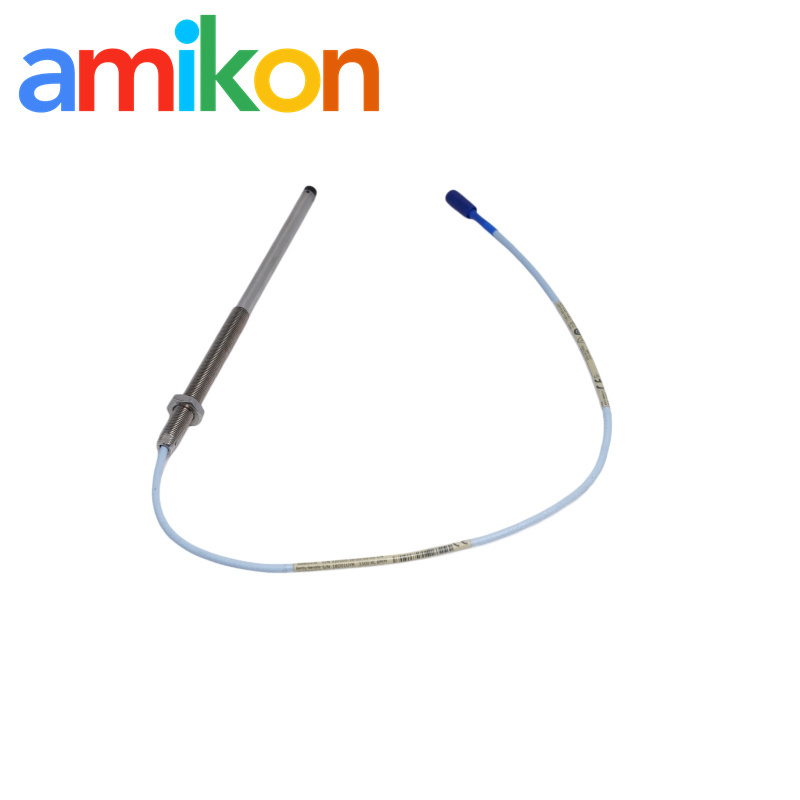

The 330103-10-20-05-02-CN is a Bently Nevada 3300 XL 8 mm eddy current proximity probe, primarily used for measuring shaft vibration and position on rotating machinery.
Part Number Breakdown
330103: 3300 XL 8 mm probe, M10 x 1 thread, no armor.
10: 100 mm unthreaded length.
20: 200 mm case length.
05: 0.5 m cable length.
02: Mini ClickLoc connector, standard cable.
CN: China agency approvals.
Core Specifications
Linear Range: 2.0 mm (80 mils).
Incremental Scale Factor: 7.87 V/mm (200 mV/mil) +/- 5%.
Temperature Range: -52°C to +177°C.
Case-to-Lead Strength: 330 N (75 lbf).
330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
Global Distribution Network
Amikon supplies industrial automation spare parts, mainly PLC, DCS, and TSI systems, to more than 160 countries.
  • North America: shows steady demand, especially US and Canada. A lot of work comes from oil & gas plants and also automotive-related production sites.
  • Europe: is similar in scale, Germany and UK stand out. You still see chemical plants and heavy equipment lines placing regular orders.
  • Middle East and Africa: usually relate to refinery projects and mining sites. UAE, Saudi Arabia, South Africa come up often in shipments, sometimes also remote field installations.
  • Asia-Pacific: is quite broad. China, Singapore, Australia, India … demand is mixed, from semiconductor fabs to power stations and metallurgy plants.
  • South America: is smaller in volume but stable. Brazil, Chile, Argentina mostly connected with mining, copper operations, and hydropower projects.
Request a Quote Now
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe 330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
Why Choose Amikon
  • 100% Original Parts - Vetted industrial automation & DCS/PLC spares
  • Massive Inventory - 30,000+ items ready for immediate shipment
  • 12-Month Warranty - Fully covered by a 1-year quality guarantee
  • Fast Global Shipping - Secure express delivery to 160+ countries
  • 24/7 Rapid Response - Dedicated 1-on-1 customer service
330103-10-20-05-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
Frequently Asked Questions
How do the extended case dimensions of the 330103-10-20-05-02-CN affect mounting in deep industrial housings?
The Bently Nevada 330103-10-20-05-02-CN uses a 200 mm case with an extra 100 mm unthreaded section, so it’s meant for deeper installation points. It helps when you’re passing through thick bearing housings or insulation layers where standard probes can’t reach comfortably. The M10x1 thread still applies, but installation usually needs care—keep engagement around 15 mm and avoid over-torque. Most technicians just use an 8 mm tool on the flats and take it steady.
Can the 330103-10-20-05-02-CN connect directly to a monitor system?
No, it needs a full loop setup. The probe has a 0.5 m cable, so it’s normally used with a 330130 extension cable (4.5 m) and a 330180 Proximitor. That gives the standard 5 m system and the correct 7.87 V/mm (200 mV/mil) scale factor. After that, it can feed into a condition monitoring system for vibration or position signals.
What about connector exposure of the 330103-10-20-05-02-CN in harsh environments?
The ClickLoc / triaxial connector on the 330103-10-20-05-02-CN works well, but it shouldn’t sit exposed in oil mist or moisture for long periods. In those cases, signal noise or instability can show up over time. Many plants simply add a 40180-02 protector or seal the joint during installation to keep it stable.
What does the “CN” of the 330103-10-20-05-02-CN suffix indicate?
It refers to China-market certification. The 330103-10-20-05-02-CN supports NEPSI and CCC-Ex requirements for hazardous areas like Zone 0 or Zone 2, depending on system design. The probe itself is compliant, but the final approval still depends on the full loop setup.
Is the 330103-10-20-05-02-CN compatible with older 3300 systems?
Yes, it can be used in retrofit projects with older Bently Nevada 3300 XL / 8 mm systems. Mechanical fit is usually fine, but mixing older cables or drivers can limit performance. Most upgrades keep the full XL chain to maintain proper API 670 accuracy.
