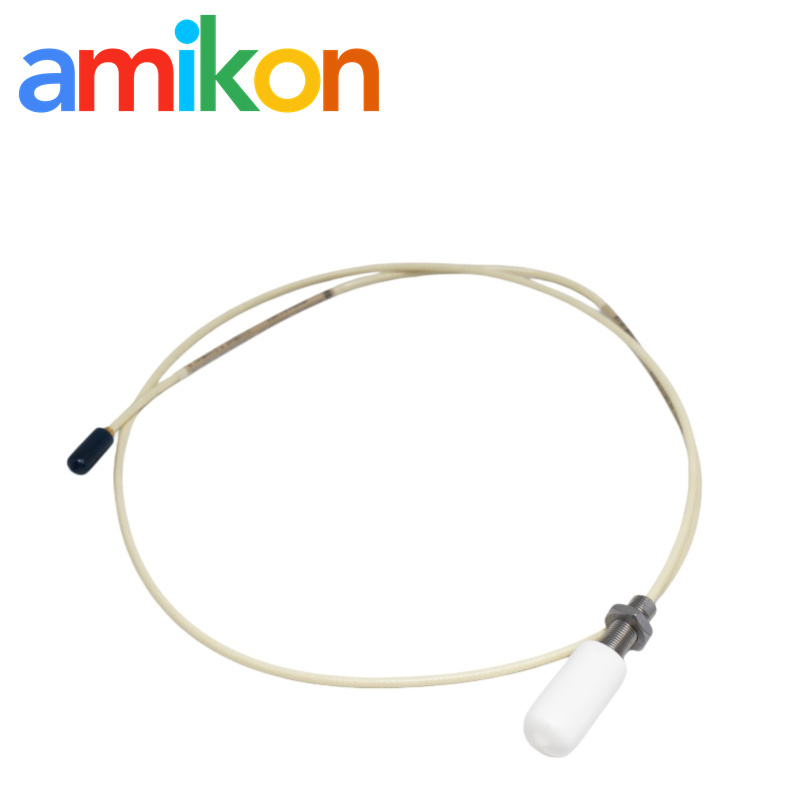

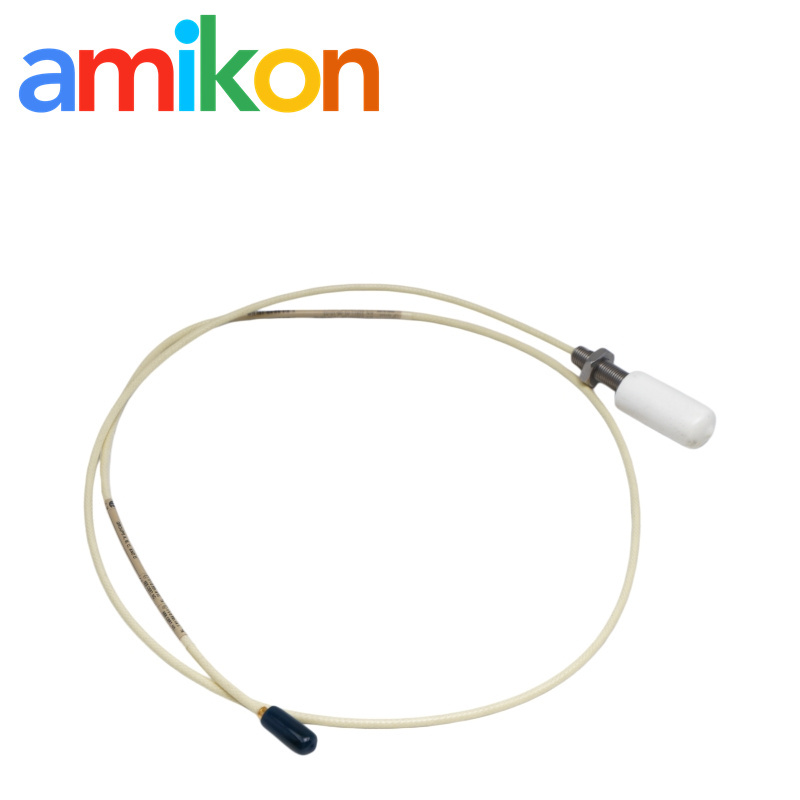

22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
Specifications
Delivery Time :
2-3 work days
Model Number :
22811-01-06-10-02
Expected Shipping Dimensions :
1.8x1.8x116cm
Price :
66USD
Packaging Details :
Brand new and original
Shipping :
TNT, DHL, FedEx, EMS, UPS
Supply Ability :
in stock
Packaging :
Original new packaging
Payment Terms :
T/T
Weight :
0.06kg
Place of Origin :
USA
Country Of Origin :
USA
Brand Name :
Bently Nevada
Model :
22811-01-06-10-02
MOQ :
1
Place of shipment :
Xiamen,China
Description
22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring

Bently Nevada 22811-01-06-10-02 is a 7200 series 8mm proximity probe for turbine shaft vibration and displacement monitoring. It features a rugged PPS tip to prevent sensor failure in high-temperature, oily bearing environments, serving as a direct replacement for legacy asset protection.

Technical Parameters
Configuration: 8mm body (M10×1 thread), 10mm unthreaded, 60mm case length, 1.0m cable, male coaxial connector.
PPS Tip: Resists oil and corrosion, preventing insulation breakdown and costly false machine trips.
0 Hz - 10 kHz Response: Measures both static axial displacement and high-frequency dynamic vibration.
-34°C to +177°C Rating: Ensures zero signal drift when installed directly inside harsh bearing environments.
Engineer's Note

The 1.0m integral cable must pair with a 4.0m or 8.0m 7200 series extension cable for a 5.0m or 9.0m total system length. Mismatched lengths distort the Proximitor's standard 7.87 V/mm scale factor.

22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
Global Distribution

Amikon supplies industrial automation spare parts, mainly PLC, DCS, and TSI systems, to more than 160 countries.

  • North America: Steady demand, especially US and Canada. Oil & gas plants and automotive-related production sites.
  • Europe: Similar in scale, Germany and UK stand out. Chemical plants and heavy equipment lines.
  • Middle East and Africa: Refinery projects and mining sites. UAE, Saudi Arabia, South Africa with remote field installations.
  • Asia-Pacific: Broad demand from China, Singapore, Australia, India. Semiconductor fabs to power stations and metallurgy plants.
  • South America: Smaller volume but stable. Brazil, Chile, Argentina for mining, copper operations, and hydropower projects.
Request a Quote
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
Service Advantages
  • 100% Original Parts - Vetted industrial automation & DCS/PLC spares
  • Massive Inventory - 30,000+ items ready for immediate shipment
  • 12-Month Warranty - Fully covered by a 1-year quality guarantee
  • Fast Global Shipping - Secure express delivery to 160+ countries
  • 24/7 Rapid Response - Dedicated 1-on-1 customer service
22811-01-06-10-02 Bently Nevada 8mm Proximity Probe for Turbine Shaft Monitoring
Frequently Asked Questions
What are the exact technical specifications of the Bently Nevada 22811-01-06-10-02?
7200 Series 8mm metric proximity probe. M10x1 thread, 10mm unthreaded length, 60mm case and 1.0m integral cable. Miniature male coaxial connector.
What is the operating temperature range and material composition of 22811-01-06-10-02 tip?
PPS-insulated tip. Operating range: -34°C to +177°C.
What frequency response and signal measurement capabilities does the 22811-01-06-10-02 have?
0 Hz to 10 kHz. Static axial displacement and dynamic shaft vibration.
How does the 1.0m 22811-01-06-10-02 integral cable affect system configuration?
The 1.0m cable is matched with a 4.0m or 8.0m 7200 Series extension cable. Total system length: 5m or 9m.
What happens if the total system length of 22811-01-06-10-02 is incorrect?
The cable length forms part of the calibration. A mismatch can affect the 7.87 V/mm scale factor.
