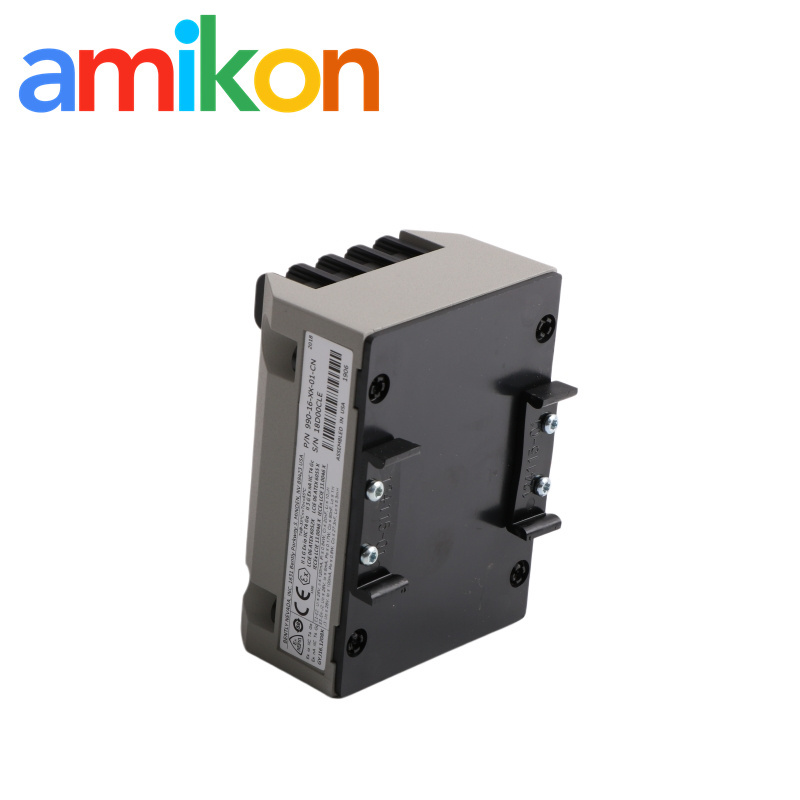

990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
Specifications
Delivery Time :
2-3 work days
Brand Name :
Bently Nevada
Model :
990-16-XX-01-CN 106M1675-01
Model Number :
990-16-XX-01-CN 106M1675-01
Place of shipment :
Xiamen,China
Price :
66USD
Packaging Details :
Brand new and original
Packaging :
Original new packaging
Supply Ability :
in stock
Payment Terms :
T/T
Expected Shipping Dimensions :
10x7.3x6cm
Place of Origin :
USA
Weight :
0.46kg
MOQ :
1
Shipping :
TNT, DHL, FedEx, EMS, UPS
Description
990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
Electrical Performance
  • Output Signal: 4-20 mA DC (two-wire, loop-powered)
  • Power Supply: +12 to +35 Vdc
  • Loop Accuracy: Within ±1.5% of full-scale range
  • Maximum Loop Resistance: R_LOOP = 43.5 x (Vps - 12) Ohms
  • Frequency Response: 5 Hz to 6,000 Hz (+0, -3 dB)
  • Prox Out Scale Factor (Sensitivity): 200 mV/mil (7.87 mV/µm)
  • Prox Out Output Impedance: 10 kΩ calibrated for a 10 MΩ load
Measurement & Compatibility
  • Measurement Range: 0-16 mils pp (0-400 µm)
  • System Length: 7 Meters
  • Output/Target: 5 Vdc @ 20 mils / 9.5 mm min. target (AISI 4140 Steel)
Mechanical & Environmental
  • Temp/Mounting: -35°C to +85°C / 35mm DIN rail
  • Humidity: 100% condensing
990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
Amikon supplies industrial automation spare parts, mainly PLC, DCS, and TSI systems, to more than 160 countries.
  • North America shows steady demand, especially US and Canada. A lot of work comes from oil & gas plants and also automotive-related production sites.
  • Europe is similar in scale, Germany and UK stand out. You still see chemical plants and heavy equipment lines placing regular orders.
  • Middle East and Africa usually relate to refinery projects and mining sites. UAE, Saudi Arabia, South Africa come up often in shipments, sometimes also remote field installations.
  • Asia-Pacific is quite broad. China, Singapore, Australia, India … demand is mixed, from semiconductor fabs to power stations and metallurgy plants.
  • South America is smaller in volume but stable. Brazil, Chile, Argentina mostly connected with mining, copper operations, and hydropower projects.
Request a Quote Now
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter 990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
Discontinued Part Specialist
We focus on obsolete PLC and DCS parts. Many requests come from plants still running older systems, so sourcing becomes more important than replacement itself.
Massive Inventory, Ready to Ship
Stock includes ABB, Allen Bradley, Bently Nevada and other industrial brands. In most cases, items are available for quick dispatch once confirmed.
100% Tested & 1-Year Warranty
All components are tested before shipment. Standard 12-month warranty is included for industrial use parts.
Minimize Your Downtime
Fast quotation response and shipping arrangement. The idea is simple--keep production running and reduce waiting time as much as possible.
990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
Frequently Asked Questions
Q1: For centrifugal air compressor monitoring, what are the advantages of 990-16-XX-01-CN vs 3500 rack?
A1: The 990-16-XX-01-CN is more of a compact OEM-style solution. Instead of a full 3500 rack system, it combines Proximitor + transmitter in one unit and outputs directly as 4-20 mA loop.

In many skid packages (air compressors, small pumps, fans), engineers use it mainly to avoid extra rack hardware and wiring. Signal goes straight into PLC or DCS input, basically simpler setup and less cabinet space.

Q2: How to safely get diagnostic data from 990-16-XX-01-CN?
A2: There is a PROX OUT terminal plus a coax output for raw signal.

Used for temporary diagnostics, usually with the 990/991 Test Adapter (122115-01). That part is important because direct connection to measurement equipment or portable analyzers can create ground issues on the loop.

Most site engineers only use it during troubleshooting or abnormal vibration checks, not for continuous monitoring.


Q3: What does “CN” mean and what about hazardous area wiring for the 990-16-XX-01-CN?
A3: CN version is mainly for China compliance (NEPSI related approval).

For hazardous zones (0/1/2), it’s still an intrinsic safety loop design. So the 4-20 mA loop has to go through an IS barrier on the control side.

Typical field wiring is shielded twisted pair, and the shield is normally grounded at one end only. Nothing too special, but grounding practice matters a lot in noisy compressor areas.

Q4: What does it mean if loop current drops below 3.6 mA of the 990-16-XX-01-CN?
A4: Usually the system is in “Not OK” condition.

First things to check are the probe chain and connectors, especially the NSv probe and extension cable link. Moisture or loose ClickLoc connections are common in the field.

Also confirm probe gap is in normal operating range. Once signal is back, the 990 unit normally recovers on its own within a few seconds and the 4–20 mA output returns to normal vibration tracking.

990-16-XX-01-CN 106M1675-01 Bently Nevada 2-wire, loop-powered vibration transmitter
Related Parts Inventory
Part Number Part Number
3500/22M 288055-01 330130-080-00-00
3500/33 149986-01 330130-045-00-05
3500/60 163179-01 330130-085-00-00
3500/72M 176449-08 09E01KPS 3300XL 8MM
3500/62 163179-03 330180-50-05
3500/40M 140734-01 TM0180-08-00-15-10-02
330500-02-00 TM0180-A08-B00-C02-D10
135137-01 3500/70M 176449-09
149992-02 330130-040-02-00
147663-01 3500/45 140072-04
3500/94 145988-01 330130-045-01-00
140482-01 330130-080-00-05
330500-00-20 990-04-70-02-00
170133-090-00 330104-15-23-10-02-00
3500/32M 149986-02 330104-19-25-10-11-05
1900/65A 172323-01 330103-00-05-10-02-05
330180-X0-05 330103-00-18-05-02-05
125720-01 330130-045-02-05
125760-01 330101-00-08-05-02-05
125768-01 330130-085-00-05
