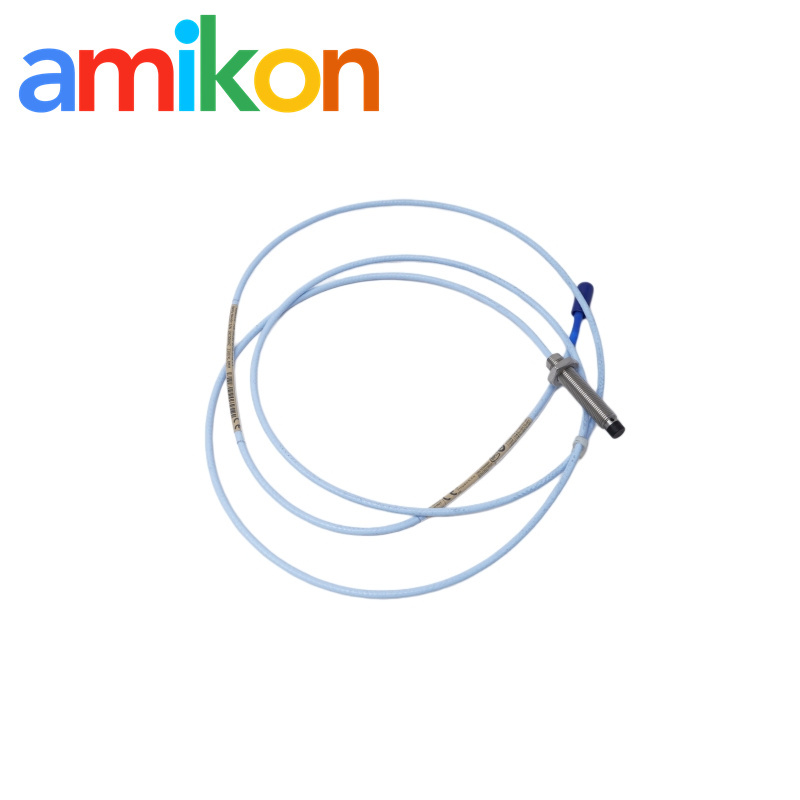

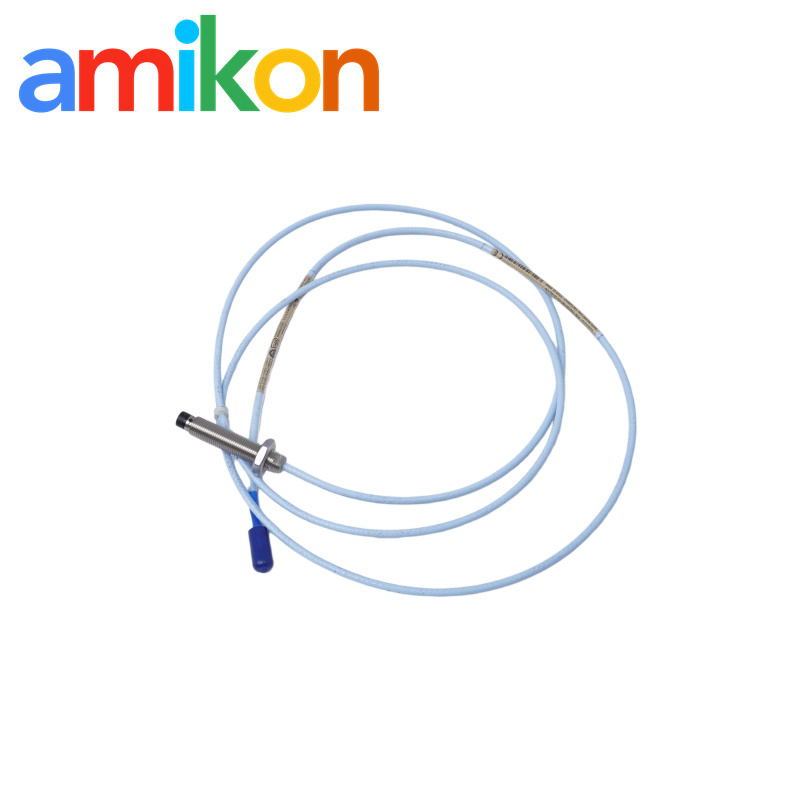

330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable
330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable
330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable
330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable
330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable
330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable
330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable
330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable
Specifications
Shipping :
TNT, DHL, FedEx, EMS, UPS
Brand Name :
Bently Nevada
MOQ :
1
Place of Origin :
USA
Supply Ability :
in stock
Model Number :
330103-00-05-15-02-CN
Packaging Details :
Brand new and original
Expected shipping dimensions :
23x1.6x20.5cm
Place of shipment :
Xiamen,China
Model :
330103-00-05-15-02-CN
Weight :
0.08kg
Payment Terms :
T/T
Packaging :
Original new packaging
Price :
66USD
Delivery Time :
2-3 work days
Description
330103-00-05-15-02-CN Bently Nevada 3300 XL 8 mm Proximity Probe
330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable
Product Overview
The Bently Nevada 330103-00-05-15-02-CN is a 3300 XL 8mm proximity probe. This eddy current proximity transducer system measures non-contact shaft vibration and axial position on rotating machinery.

Technical Specifications
  • 330103 Model: Metric probe, M10 x 1 thread, without armor
  • -00 Unthreaded: 0 mm unthreaded case length
  • -05 Case Length: 50 mm overall case length
  • -15 Total Length: 1.5 meters (4.9 feet) integral cable
  • -02 Cable Option: ClickLoc coaxial connector, standard FEP cable
  • -CN Approval: China-specific explosion-proof certifications
  • Linear Range: 2.0 mm (80 mils)
  • Scale Factor: 7.87 V/mm (200 mV/mil)
  • Tensile Strength: Robust 330 N (75 lbf) pull strength
  • Interchangeability: Fully compatible with non-XL 3300 series

System Integration
  • Applications: Fluid-film bearing protection, steam turbine monitoring, and compressor protection
  • Compliance: Meets API 670 Standard and SIL 2 / SIL 3 safety loops
  • 5-Meter System: Pairs with 330130-035 cable and 330180-50/51 Proximitor
  • 9-Meter System: Pairs with 330130-075 cable and 330180-90/91 Proximitor
  • Monitor Interface: Connects to Bently Nevada 3500/40M or 3500/42M racks
330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable
Global Supply Network
Amikon exports industrial automation parts to over 166 countries across North America, Europe, Asia-Pacific, and the Middle East, serving 200,000+ customers worldwide.
Core Sectors
Our components support critical global industries, including:
  • Oil & Gas / Petrochemicals
  • Power Generation / Utilities
  • Metallurgy / Steel Production
  • Paper & Pulp Manufacturing
Global Logistics
  • Fast Shipping: Express delivery worldwide via DHL, FedEx, and UPS
  • 24/7 Support: Rapid multilingual response to minimize your downtime
Request a Quote Now
Contact: Miya Zheng
Email: sales@amikon.cn
WhatsApp: +86 180 2077 6792
330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable
Frequently Asked Questions
Q1: Can I use the 330103-00-05-15-02-CN to replace an older non-XL 3300 series metric probe?
A: Yes, in most setups you can. The 330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe keeps good compatibility with older non-XL 3300 series metric probes. Since it uses an M10x1 thread proximity probe, people usually install it into existing mounts without changing brackets. One small thing though — if older non-XL parts stay in the system, performance normally follows the older spec.
Q2: Why does the 330103-00-05-15-02-CN need the “-CN” suffix?
A: Mostly because of local compliance. The 330103-00-05-15-02-CN non contact eddy current displacement sensor includes China specific agency approvals, so for many factories it’s the easier option during plant safety checks. If a site asks for a Bently Nevada probe with CN compliance, this is generally the version they mean.
Q3: Is the -00 (0mm) option of the 330103-00-05-15-02-CN important?
A: Yes, because 330103-00-05-15-02-CN comes as a 0mm unthreaded length probe, basically a fully threaded or metric full thread eddy current sensor design. If the casing wall is thick, choosing the wrong probe style can make installation awkward. Best to check the actual mounting depth first.
Q4: Does the 1.5m cable of the 330103-00-05-15-02-CN need special tools?
A: No special tools, usually. This 1.5m integral cable proximity probe uses a gold plated ClickLoc coaxial connector probe, so connection is pretty simple. Tighten it by hand and once the connector locks, you’re basically done.
Q5: Can I recalibrate the 330103-00-05-15-02-CN probe for different shaft materials?
A: The 330103-00-05-15-02-CN eddy current proximity transducer system is calibrated to AISI 4140 steel from the factory. If the shaft material changes, readings may shift a little and the 7.87 V per mm scale factor may not stay exactly the same. Usually worth checking material compatibility before ordering.
330103-00-05-15-02-CN Bently Nevada 3300 XL 8mm Proximity Probe with M10 x 1 Thread and 1.5 Meters Integral Cable
Compatible Parts Reference
Part NumberPart Number
330103-00-04-10-02-003500/50E
330104-00-06-05-02-00330101-30-63-10-02-00
330105-02-12-05-02-00330130-035-00-CN
330106-05-30-05-02-00330130-035-01-CN
330106-05-30-10-02-05330130-045-01-CN
330130-040-00-00330104-00-07-05-02-00
330130-040-01-00330130-085-01-00
330180-91-0540113-02
3500/20330130-035-00-00
3500/45 176449-04330130-040-00-CN
3500/6084661-50
3500/64M330130-045-03-05
330103-00-06-10-02-00330703-000-060-10-02-00
330106-05-30-10-02-00106M1081-01
133442-013500/42M 176449-02
330180-90-003500/15 AC 127610-01
125840-01128276-01E 131151-01
125800-0118745-04
330105-02-12-05-02-05330102-22-58-10-02-00
330130-080-00-CN330910-03-09-05-02-05
