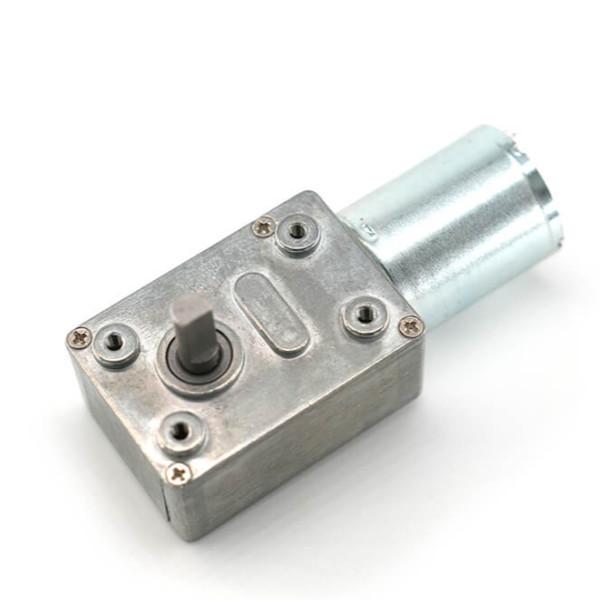

JGY370 12V DC Motor High Torque Worm Gearbox With Worm Gear
JGY370 12V DC Motor High Torque Worm Gearbox With Worm Gear
JGY370 12V DC Motor High Torque Worm Gearbox With Worm Gear
JGY370 12V DC Motor High Torque Worm Gearbox With Worm Gear
JGY370 12V DC Motor High Torque Worm Gearbox With Worm Gear
JGY370 12V DC Motor High Torque Worm Gearbox With Worm Gear
Specifications
Model Number :
JGY370
Certification :
ISO9001,Reach,RoHs
Place of Origin :
Dongguan,China
MOQ :
500pcs
Payment Terms :
L/C,T/T
Supply Ability :
5000PCS/Day
Delivery Time :
40-45days
Packaging Details :
Foam Box
Brand Name :
Lihua Motor/HCS Motors
Motor Type :
JGY370 Worm Gear Motor
Material :
Metal /Copper
Rated Voltage :
3V/ 6V/ 12V/24v
Gear Ratio :
40:1 65:1 150:1 200:1 260:1 340:1 600:1 1000:1
Main Body Size :
76.8 x 32 x 25 mm
Gearbox Diameter :
46 x 32 x 25mm
Operating Temperature :
-20°C-80°C
Weight :
500g
Name :
Worm Gear Motor
Description

High Torque Worm Gearbox 12V DC Motor With Worm Gear For Door Opener Encoder

DC 12V 5RPM High Torque Turbine Worm Gear Box Reduction Motor
This type is Miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.
It is also have addition two characteristics: first, With self-locking, the output shaft can not rotation when switch off, that is self-locking.

Second, Gearbox output shaft and motor shaft are come to be a rectangle.
It is widely used in various of ocns that require special install size.
Specifications:
Model: JGY-370
Material: Metal
Main Color: Gray
Rated Voltage:DC 12V
Motor No-load Speed:8300RPM
Gear Box No-load Speed:5RPM
Reduction Ratio:1:1650
Rated Torque:20 Kg.cm
Female Thread Diameter:3mm
Shaft Size:6 x 14mm / 0.24" x 0.55" (D*L)
Main Body Size:76 x 32 x 25mm (L*W*H)

JGY370 12V DC Motor With Worm Gearbox Dimension

Features:

  • The worm gear motor with self-locking, ie, in the case in the absence of electric motors, the output shaft is not to move, that is self-locking.

  • The gearbox output shaft direction of the motor shaft is arranged vertically.

  • The entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to some of the installation dimensions of this aspect is required.

  • Widely used in windows, a door opener, miniature winch and other occasions.

  • Overall Diameter: 25mm
  • Overall Length: 32.1mm
  • Overall Height: 24.8mm (Excluding Shaft)
  • Rated Voltage: 12VDC
  • Mounting Holes: M3
  • Shaft Diameter: 6mm
  • Shaft Length: 14mm
  • No Load Shaft RPM: ~5RPM @ 12VDC
  • No Load Current: ~40mA
  • Flatted Shaft

JGY370 12V DC Motor High Torque Worm Gearbox With Worm Gear

DC6V JGY370-0660 Worm Gear Motor Datasheet

Reduction Ratio

Rated

Voltage

 No-Load Rated

Maximum

Torque

 Stall
Current
Speed Current Torque Speed Current
V rpm A Kg.cm rpm A Kg.cm A
40 6 150 0.1 0.2 100 ≤0.6 6.4 1.8
65 90 0.1 0.5 70 ≤0.6 10 1.8
150

40

 0.1 2.0 30 ≤0.6 24 1.8
200 30 0.1 5.3 22 ≤0.6 25 1.8
260 23 0.1 6.7 17 ≤0.6 25 1.8
340 18 0.1 9.0 13 ≤0.6 25 1.8
600 10 0.1 15.9 7 ≤0.6 25 1.8
1000 6 0.1 26.5 4 ≤0.6 25 1.8

DC12V JGY370-1260 High Torque Worm Datasheet

Reduction Ratio Rated
Voltage		 No-Load Rated Maximum Torque Stall
Current
Speed Current Torque Speed Current
V rpm A Kg.cm rpm A Kg.cm A
40 12 150 0.06 1.5 100 ≤0.6 6.4 1.3
65 90 0.06 2.4 70 ≤0.6 10 1.3
150

40

 0.06 5.6 30 ≤0.6 24 1.3
200 30 0.06 7.4 22 ≤0.6 25 1.3
260 23 0.06 10 17 ≤0.6 25 1.3
340 18 0.06 12 13 ≤0.6 25 1.3
600 10 0.06 22.5 7 ≤0.6 25 1.3
1000 6 0.06 25 4 ≤0.6 25 1.3

JGY370-2440 24V DC Motor With Worm Gear Datasheet

Reduction Ratio Rated Voltage No-Load Rated Maximum Torque Stall Current
Speed Current Torque Speed Current
V rpm A Kg.cm rpm A Kg.cm A
40 24 100 0.015 0.8 75 ≤0.08 4 0.6
65 50 0.015 1.3 40 ≤0.08 6.5 0.6
150 25 0.015 3 19 ≤0.08 15 0.6
200 20 0.015 4 14 ≤0.08 20 0.6
260 15 0.015 5 10 ≤0.08 25 0.6
340 11 0.015 7 8 ≤0.08 25 0.6
600 6 0.015 12 4 ≤0.08 25 0.6
1000 4 0.015 20 3 ≤0.08 25 0.6
