Specifications
Brand Name :
Lihua Motor/HCS Motors
Model Number :
FC-280
Certification :
IATF16949/ISO9001/Reach/RoHs/SGS
Place of Origin :
Dongguan,China
MOQ :
1000PCS
Payment Terms :
L/C,T/T,D/A,D/P,Western Union
Supply Ability :
10000PCS/Day
Delivery Time :
35-45Days
Packaging Details :
Foam Carton
Price :
Negotiation
Name :
280 DC Mini Motor With Metal Gear
Direction :
CW/CCW
Rated Voltage :
12V/24V Or Custom
Rotor Slot :
3 Slots
Housing Diameter :
24mm(W)*18.4mm(H)
Operating Temperature :
-30℃ to ＋70℃
OEM/OEM :
Available
Speed :
2600RPM-5300RPM or Custom
Description

FC-280 Central Door Lock Actuator Motor With Metal Gear Mini DC Electric Motors

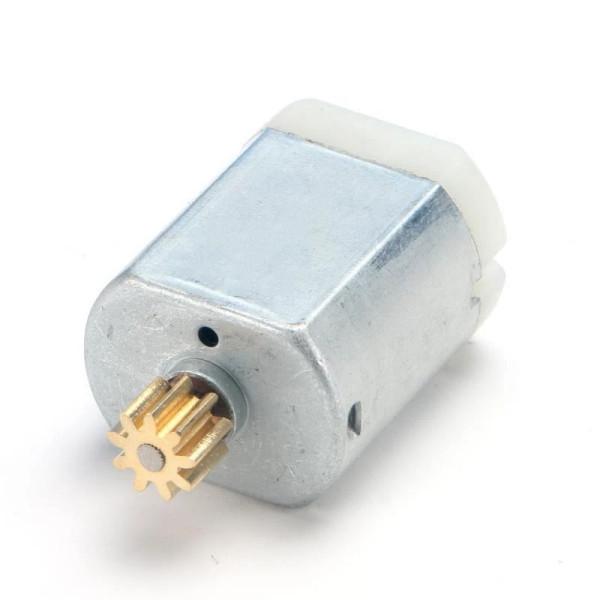

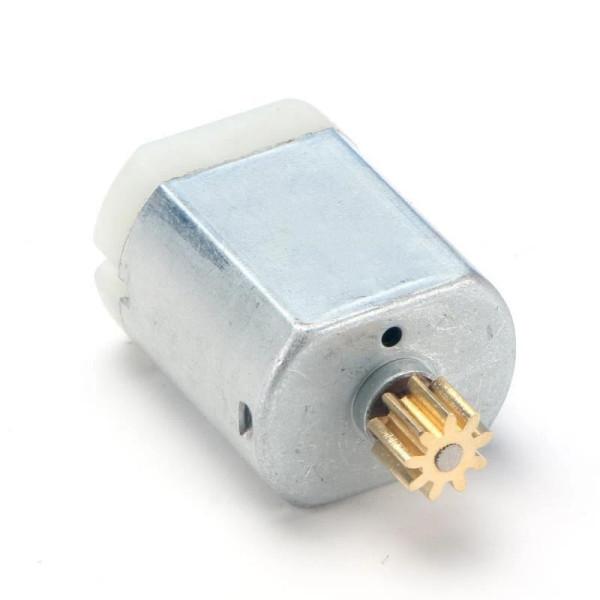

The 12V 24V 280 Mini Motor with 9 teeth metal gear is a compact and versatile DC motor designed for precision applications, particularly in car door locks and rearview mirror systems. With its metal gear design, this motor delivers high torque, smooth operation, and reliable performance, making it ideal for space-constrained projects.And FC-280 motors are always combined with actuator used in central car door system.


RC-280 Metal Gear Technical Specifications

  • Model: FC-280SC-09650

  • Motor size: 24mm*18.mm

  • Motor Height: 30.5mm.


  • Output Shaft Diameter: 2mm.


  • Output Shaft Length: 6.8mm (excluding step height)

  • Copper gear diameter: 7mm

  • Copper gear thickness: 5mm

  • Copper gear teeth: 9 Teeth

  • Weight: 46g

  • Suitable voltage: DC 12V-24V

  • No-load speed: 2600RPM-5300RPM

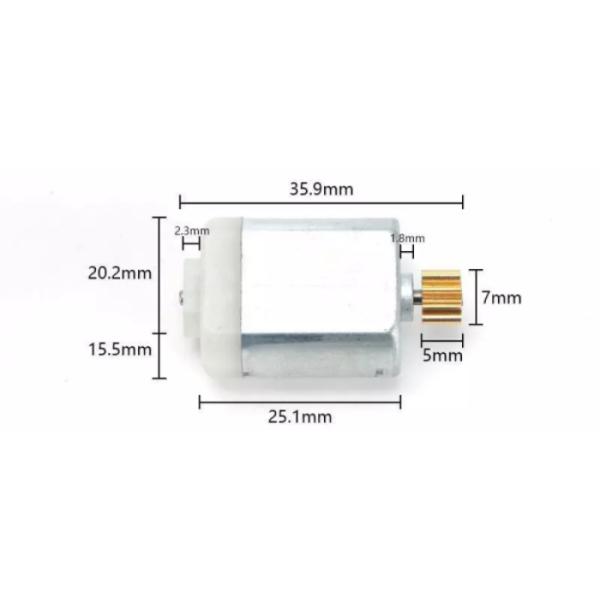

12V 24V 280 Mini Motor With Metal Gear Dimension

FC-280 Central Door Lock Actuator Motor With Metal Gear Mini DC Electric Motors

FC-280 Central Door Lock Actuator Motor With Metal Gear Mini DC Electric Motors


Notes:


The motor has a 1mm-2mm difference in some special dimensions, which are normal tolerances. According to the customer's demand, we can control the size more precisely, but even the same motor in the same batch will have a certain tolerance. Please consult our customer service for more information before placing an order.

FK-280 dc Motor Data Examples

Model Voltage No load At maximum efficiency Stall
Range Rated Speed Current Speed Current Torque P.out Torque Current
V R/min A R/min A mN-m g-cm W mN-m g-cm A
FK-280PA-20150 10.0 - 15.0 12 12,000 0.1 10,330 0.62 4.45 45.4 4.81 31.86 325 3.8
FK-280PA-18165 10.0 - 15.0 12 10,500 0.09 9,000 0.54 4.12 42 3.88 28.92 295 3.25
FK-280SA-18165 10.0 - 15.0 12 12,300 0.075 10,710 0.5 3.40 34.7 3.82 26.27 268 3.4
FK-280S-3736 1.5-3.0 2.4 11300 0.30 9562 1.58 2.38 24.3 2.54 15.59 159 8.74
FK-280S-3158 1.5-3.0 2.4 7400 0.18 6152 0.91 2.53 25.8 1.41 14.31 146 4.63
1mN.m=10.2g.cm
All data in chart can be custom as your need.
