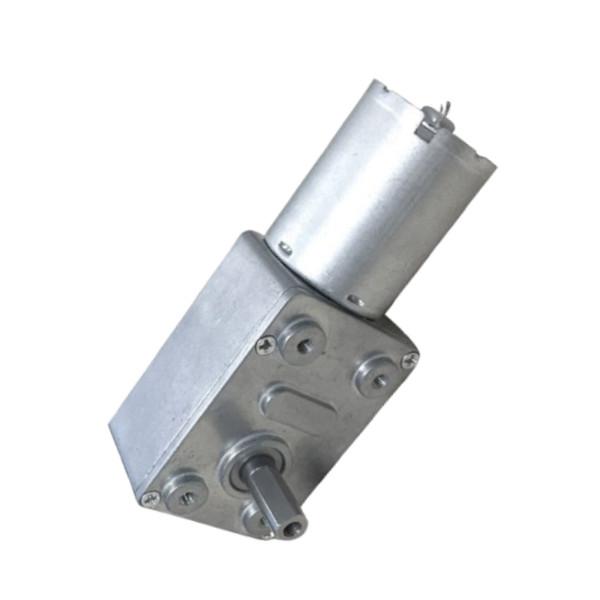

12V DC Worm Gear Motor 4000Rpm 24mm Mini 370 Range Hood Motor
12V DC Worm Gear Motor 4000Rpm 24mm Mini 370 Range Hood Motor
12V DC Worm Gear Motor 4000Rpm 24mm Mini 370 Range Hood Motor
12V DC Worm Gear Motor 4000Rpm 24mm Mini 370 Range Hood Motor
12V DC Worm Gear Motor 4000Rpm 24mm Mini 370 Range Hood Motor
12V DC Worm Gear Motor 4000Rpm 24mm Mini 370 Range Hood Motor
Specifications
Brand Name :
Lihua Motor/ HCS Motors
Model Number :
370CBG-12240 Gear Motor
Certification :
ISO9001/CE/RoHs/Reach
Place of Origin :
Dongguan,Chia
Place Of Origin :
China
MOQ :
3000PCS
Payment Terms :
L/C,T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability :
30000PCS/Day
Delivery Time :
35-45Days
Packaging Details :
Carton
Name :
12V DC Worm Gear Motor
Single Motor Diameter :
24mm*30.8mm (D*L)
Motor Type :
RF-370CBG-12240
Nominal Volt :
12V
No-Load Speed :
4300±430r/min Or as you need
No-Load Current :
≤60mA
Motor Shaft Diameter :
2mm
Shaft Length :
6.5±0.3mm
Motor Applications :
Worm Gear Motor /Range Hood Motor
Description

12V Electric Motor 4000Rpm 24mm Mini 370 Motor DC Worm Gear Motor Range Hood Motor

RF-370CBG-12240 Range Hood Motor Micro Motor Technical Parameter

1.Single Model: RF-370CBG-12240

2.370 Motor diameter: 24.4±0.3mm

3.370 Motor length: 30.8mm

4.370 Output shaft diameter: 2mm

5.Output shaft length:10.5±0.3mm or as your request

6.Weight:80g

7.Rated Volt:12V

8.Operating Voltage Range:11V-13V

9.No-load Speed:4300±430r/min

10.No-load Current:16mA

11.StartingTorque:250g.cm (Min)

12.Rotating Direction:CCW

13.Operating Temperature:-20℃～＋70℃

14.Mechanical Noise:65dB

15.Customization Service:Voltage, speed,torque and current can be custom.

16.Environment: 25±5℃ / 40%-70%RH

24mm Mini 370 Gearbox Motor Electric Motor Types and Dimension

Model:JGY-370-0660

Ratio

No-load

Rated load

Stall

Rated Volt (V)

Speed (RPM ± 10%)

Current (A)

Speed (RPM ± 10%)

Current (A)

Torque (Kg.cm)

Output (W)

Torque(Kg.cm)

Current (A)

40

6

150

0.10

100

0.6

1.20

1.26

2.5

1.8

65

6

90

0.10

70

0.6

2.00

1.47

4

1.8

150

6

40

0.10

30

0.6

4.50

1.41

9

1.8

200

6

30

0.10

22

0.6

6.00

1.38

12.5

1.8

260

6

23

0.10

17

0.6

8.00

1.42

16

1.8

340

6

18

0.10

13

0.6

12.00

1.63

25

1.8

600

6

10

0.10

7

0.6

17.00

1.25

25

1.8

1000

6

6

0.10

4

0.6

25.00

1.05

25

1.8

Model:-JGY-370-1260

40

12

150

0.06

100

0.5

1.20

1.26

2.5

1.3

65

12

90

0.06

70

0.5

2.00

1.47

4

1.3

150

12

40

0.06

30

0.5

4.50

1.41

9

1.3

200

12

30

0.06

22

0.5

6.00

1.38

12.5

1.3

260

12

23

0.06

17

0.5

8.00

1.42

16

1.3

340

12

18

0.06

13

0.5

12.00

1.63

21

1.3

600

12

10

0.06

7

0.5

17.00

1.25

35

1.3

1000

12

6

0.06

4

0.5

25.00

1.05

35

1.3

Model:JGY-370-2460

40

24

150

0.04

100

0.2

1.20

1.26

2.5

0.6

65

24

90

0.04

70

0.2

2.00

1.47

4

0.6

150

24

40

0.04

30

0.2

4.50

1.41

9

0.6

200

24

30

0.04

22

0.2

6.00

1.38

12.5

0.6

260

24

23

0.04

17

0.2

8.00

1.42

16

0.6

340

24

18

0.04

13

0.2

12.00

1.63

21

0.6

600

24

10

0.04

7

0.2

17.00

1.25

35

0.6

1000

24

6

0.04

4

0.2

25.00

1.05

35

0.6

Model:JGY-370-1285

40

12

210

0.08

160

0.6

1.70

2.85

6.4

3.6

65

12

130

0.08

100

0.6

2.60

2.72

10

3.6

150

12

55

0.08

40

0.6

6.00

2.51

24

3.6

200

12

40

0.08

30

0.6

8.00

2.51

25

3.6

260

12

32

0.08

24

0.6

10.00

2.51

25

3.6

340

12

25

0.08

20

0.6

13.00

2.72

25

3.6

600

12

14

0.08

10

0.6

24.00

2.51

25

3.6

1000

12

8

0.08

6

0.6

25.00

1.57

25

3.6

Engineer's recommendation: Recommended load not to exceed 25kg.CM
Single 370 MinI Motor Parameter Reference
Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Output Torque Current
R/min A m.Nm R/min A W g.cm A
RF-370CA-22170 3-6V 6.0V 6000 0.041 2.37 5263 0.273 1.18 186 1.82
RF-370CA-12560 8-12V 12.0V 3700 0.012 1.96 3030 0.066 0.60 130 0.37
RF-370CA-15370 8-12V 12.0V 5600 0.020 2.14 4876 0.123 1.03 176 0.85

Customized product parameter are available upon your request

Note:1mNm= 1Ncm = 10.2gcm

12V DC Worm Gear Motor 4000Rpm 24mm Mini 370 Range Hood Motor

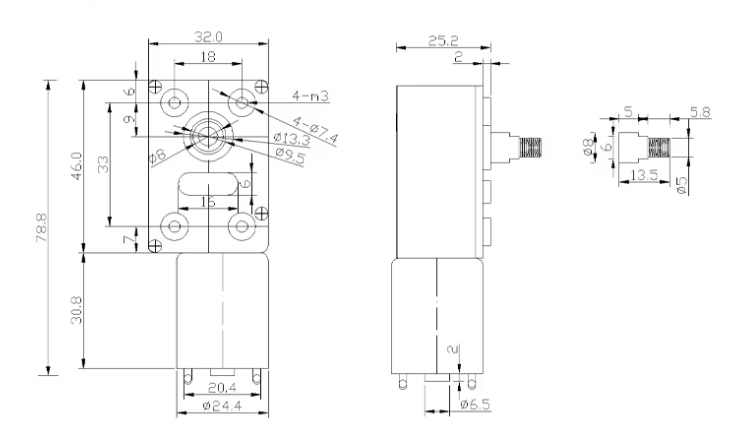

Notes:
1.Overall Gearbox Motor Body Length:78.8mm
2.Gear Motor Output Shaft Length:13.5±0.3mm Or free customization
3.Gear Motor Output Shaft Diameter:5mm
4.Single Motor Diameter:24.4mm Max
5.Fixed Aperture:3mm
6.Step Height: about 1.5mm
7.Distance between two fixed aperture:18±0.05mm
